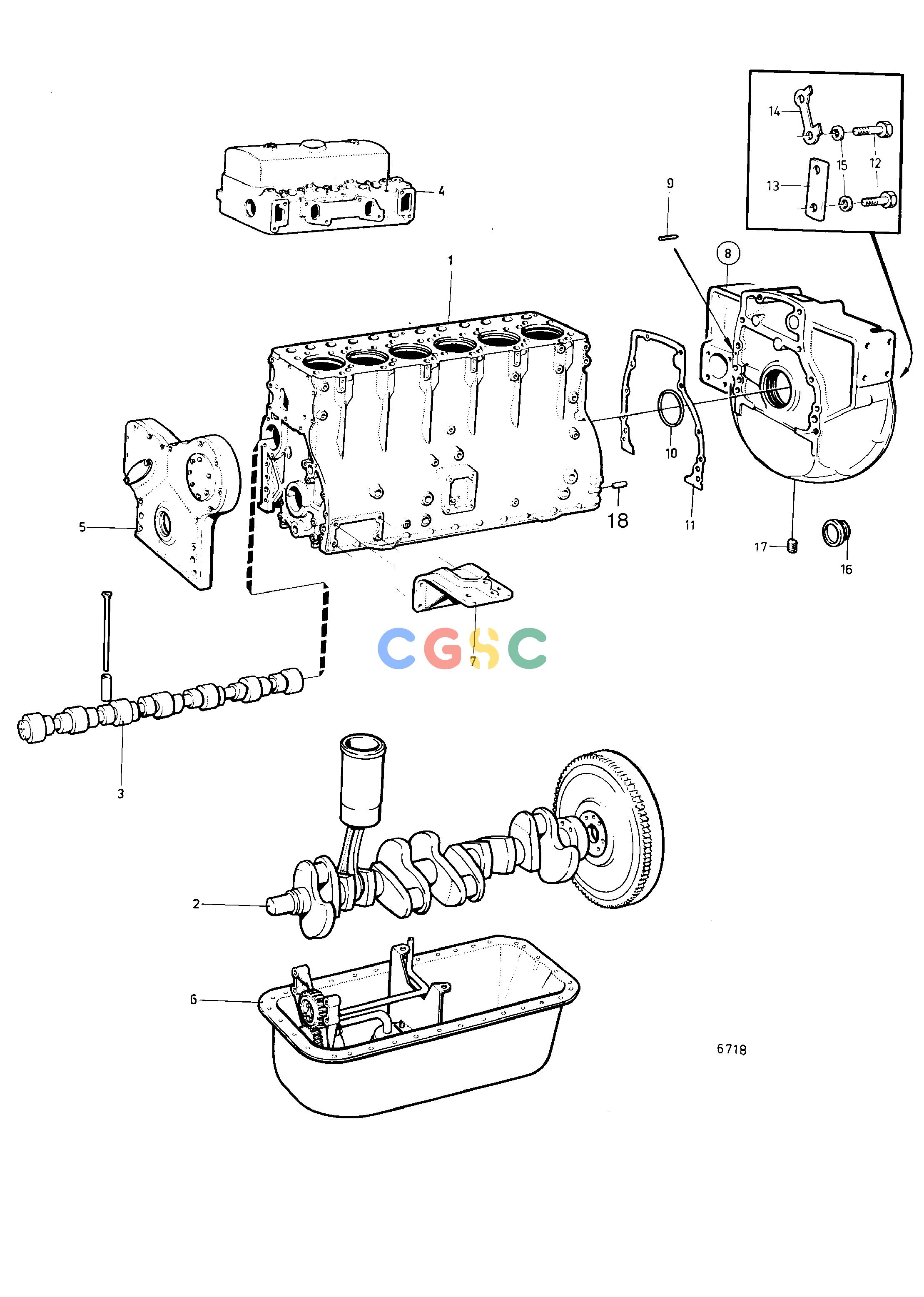

沃尔沃零件查询TAMD60CEngineEngine with Installation ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
354 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
7743230_002
|
|
cylinder block
|
|
| 2. |
7743230_005
|
|
crankshaft and related parts
|
|
| 2. |
|
|
|
|
| 3. |
7743230_004
|
|
camshaft
|
|
| 4. |
7743230_001
|
|
cylinder head
|
|
| 5. |
7743230_003
|
|
timing gear casing and gears
|
|
| 5. |
|
|
|
|
| 6. |
7743230_009
|
|
lubricating system
|
|
| 7. |
7743230_006
|
|
engine suspension
|
|
| 8. |
847320
|
[1] |
Flywheel housing
|
|
| 9. |
404069
|
[1] |
Pin
|
|
| 10. |
471056
|
[1] |
Seal
|
|
| 11. |
420167
|
[1] |
Gasket
|
|
| 12. |
955581
|
[2] |
Hexagon screw
|
L=64mm
|
| 12. |
955580
|
[6] |
Hexagon screw
|
L=57mm
|
| 12. |
955583
|
[2] |
Hexagon screw
|
L=76mm
|
| 13. |
941464
|
[2] |
Tab washer
|
|
| 14. |
941466
|
[2] |
Tab washer
|
|
| 15. |
120196
|
[10] |
Washer
|
|
| 16. |
61822
|
[1] |
Rubber plug
|
|
| 17. |
952357
|
[1] |
Plug
|
|
| 18. |
191171
|
[2] |
Pin
|
|
