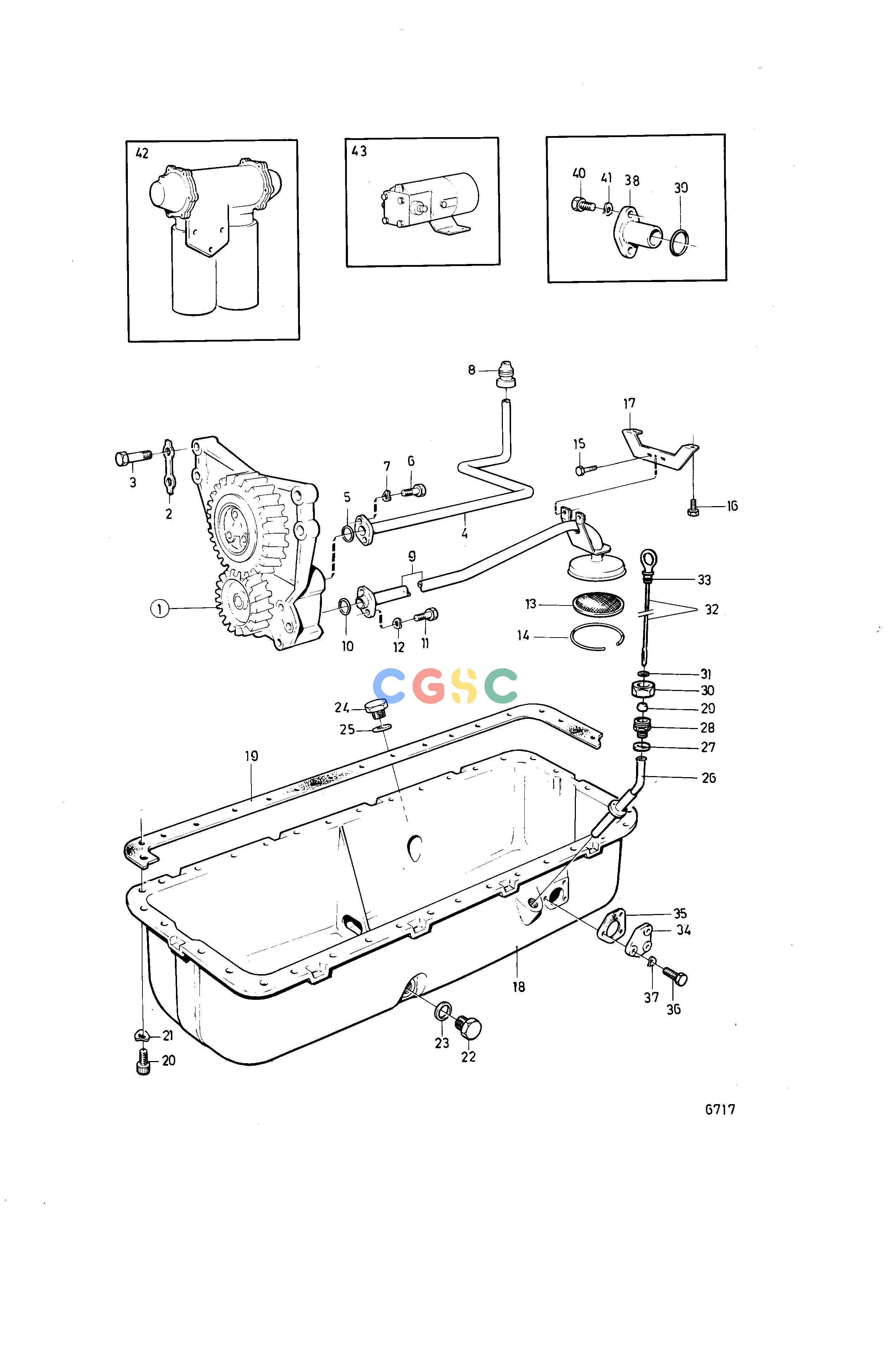

沃尔沃零件查询TAMD60CEngineLubricating SystemEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
395 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
466387
|
[1] |
Oil pump
|
|
| 2. |
62109
|
[2] |
Tab washer
|
|
| 3. |
955538
|
[4] |
Hexagon screw
|
|
| 4. |
465680
|
[1] |
Pressure pipe
|
|
| 5. |
949656
|
[1] |
O-ring
|
|
| 6. |
955530
|
[2] |
Hexagon screw
|
|
| 7. |
941907
|
[2] |
Spring washer
|
|
| 8. |
466906
|
[1] |
Fitting
|
|
| 9. |
843727
|
[1] |
Suction pipe
|
|
| 10. |
949657
|
[1] |
O-ring
|
|
| 11. |
955530
|
[2] |
Hexagon screw
|
|
| 12. |
941907
|
[2] |
Spring washer
|
|
| 13. |
1542350
|
[1] |
Strainer
|
|
| 14. |
1542351
|
[1] |
Retaining ring
|
|
| 15. |
942402
|
[2] |
Flange screw
|
|
| 16. |
942402
|
[2] |
Flange screw
|
|
| 17. |
843734
|
[1] |
Bracket
|
|
| 18. |
842118
|
[1] |
Sump
|
|
| 19. |
424600
|
[1] |
Gasket
|
|
| 20. |
956570
|
[34] |
Hex. socket screw
|
|
| 21. |
941907
|
[34] |
Spring washer
|
|
| 22. |
192538
|
[1] |
Magnetic plug
|
|
| 23. |
18677
|
[1] |
Gasket
|
|
| 24. |
960634
|
[1] |
Plug
|
|
| 25. |
957185
|
[1] |
Gasket
|
|
| 26. |
847217
|
[1] |
Tube
|
|
| 27. |
957185
|
[1] |
Gasket
|
|
| 28. |
947554
|
[1] |
Nipple
|
|
| 29. |
956972
|
[1] |
Ferrule
|
|
| 30. |
956986
|
[1] |
Fitting nut
|
|
| 31. |
955982
|
[1] |
O-ring
|
|
| 32. |
844605
|
[1] |
Oil dipstick
|
|
| 33. |
949187
|
[1] |
O-ring
|
|
| 34. |
842927
|
[1] |
Seal flange
|
|
| 35. |
842928
|
[1] |
Gasket
|
|
| 36. |
955525
|
[3] |
Hexagon screw
|
|
| 37. |
941907
|
[3] |
Spring washer
|
|
| 38. |
421123
|
[1] |
Reduction valve
|
|
| 39. |
949721
|
[1] |
O-ring
|
|
| 40. |
940100
|
[2] |
Hexagon screw
|
|
| 41. |
941906
|
[2] |
Spring washer
|
|
| 42. |
7743230_011
|
|
oil filter with installation comp.
|
|
| 42. |
|
|
|
|
| 43. |
|
|
|
See group 9
|
