神钢零件查询(DOZER) - ATTACHMENT - SK200SR, SK200SR-1S, & SK200SRLC-1S (1/91-12/03) (02-009) - DOZER INSTAL Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
759 次

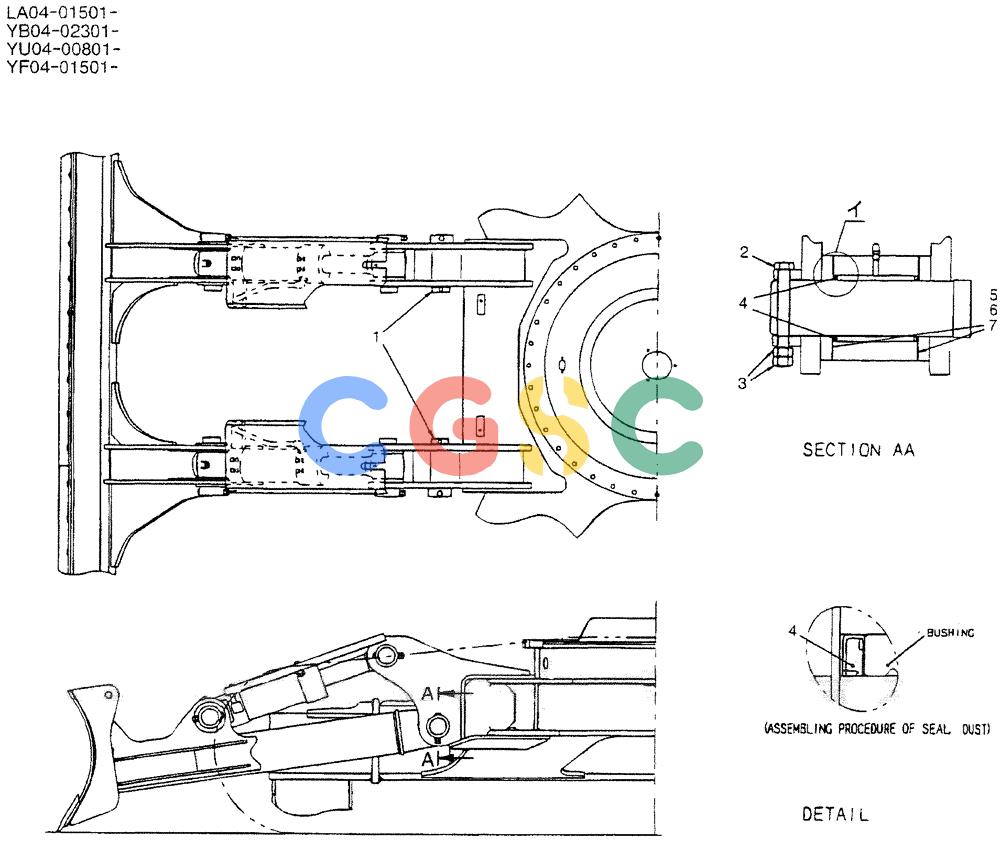

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN51B00005F1 | [1] | DOZER INSTAL | |
| 1. | YN51B01010P1 | [2] | PIN | KOBPIN |
| 2. | ZS18C16140 | [2] | SCREW,Hex, M16 x 140mm | KOBM16x2.0x140mm |
| 3. | ZN18C16013 | [4] | NUT | KOBM16x2.0mm |
| 4. | 2445R138D7 | [4] | SEAL,80mm ID x 95mm OD x 4mm Thk | KOBDust -- ID 80 x OD 95 x Th 4mm |
| 5. | B16T0442D3 | [2] | SHIM,150mm OD x 82mm ID x 1.2mm Thk | KOBID 82 x OD 150 x Th 1.2mm |
| 6. | B16T0442D4 | [2] | SHIM,82mm ID x 150mm OD x 1.6mm Thk | KOBID 82 x OD 150 x Th 1.6mm |
| 7. | B16T0442D6 | [2] | SHIM,150mm OD x 82mm ID x 2.3mm Thk | KOBID 82 x OD 150 x Th 2.3mm |
