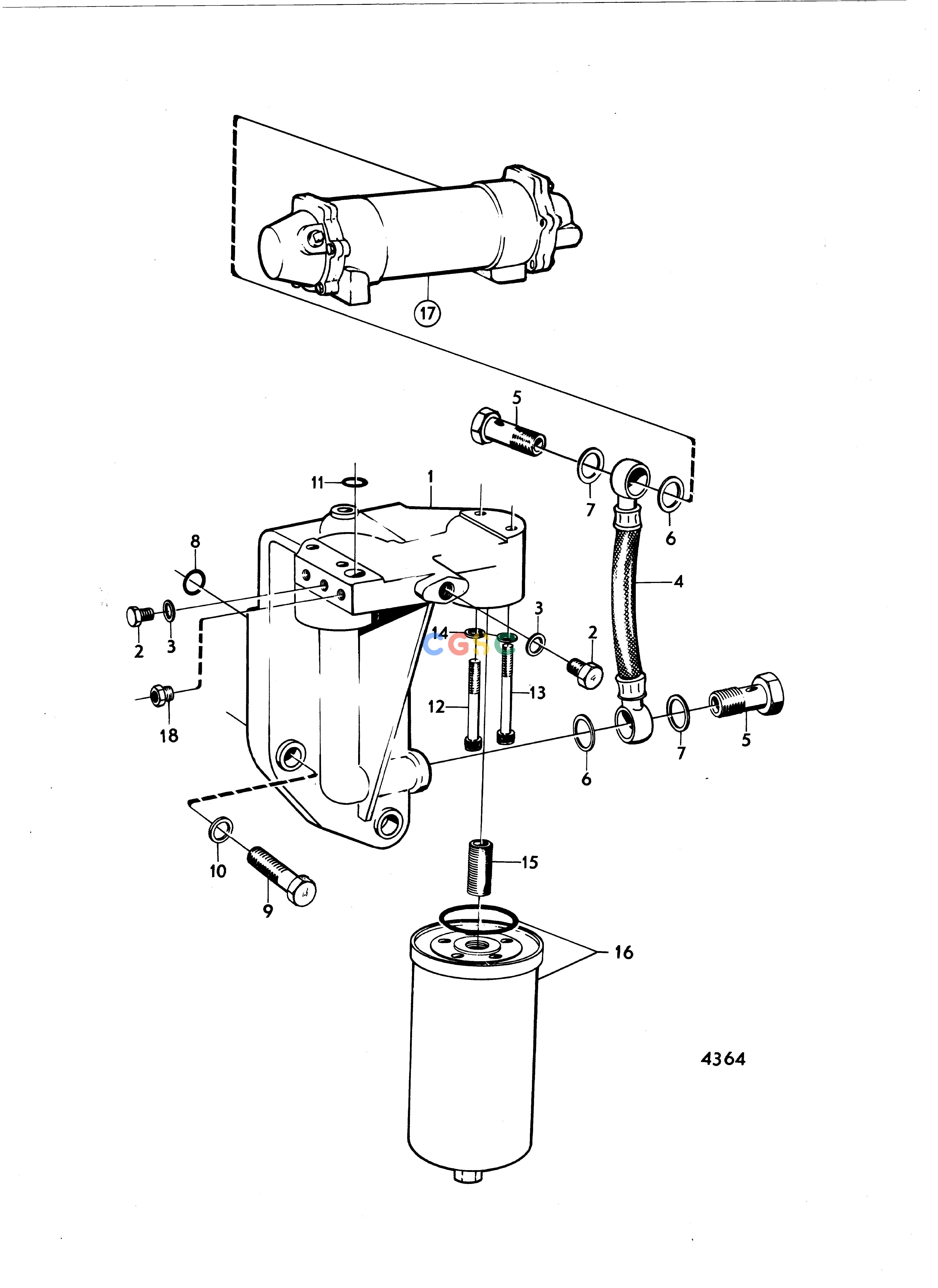

沃尔沃零件查询TAMD60CEngineOil Filter and Installation ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
663 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
820516
|
[1] |
Bracket
|
See group 2B
|
| 2. |
914390
|
[5] |
Plug
|
|
| 3. |
957177
|
[5] |
Gasket
|
|
| 4. |
820537
|
[1] |
Oil feed hose
|
|
| 5. |
804478
|
[2] |
Hollow screw
|
|
| 6. |
957185
|
[2] |
Gasket
|
|
| 7. |
957184
|
[2] |
Gasket
|
|
| 8. |
925059
|
[2] |
O-ring
|
|
| 9. |
940162
|
[3] |
Hexagon screw
|
|
| 10. |
942336
|
[3] |
Spring washer
|
|
| 11. |
955987
|
[1] |
O-ring
|
See group 2B
|
| 12. |
956571
|
[3] |
Hex. socket screw
|
L=32mm see group 2B
|
| 13. |
956572
|
[1] |
Hex. socket screw
|
L=38mm see group 2B
|
| 14. |
11992
|
[4] |
Gasket
|
See group 2B
|
| 15. |
423067
|
[2] |
Nipple
|
|
| 16. |
4785974
|
[2] |
Oil filter
|
|
| 17. |
|
|
|
See group 2B
|
| 18. |
180002
|
[1] |
Nipple
|
|
