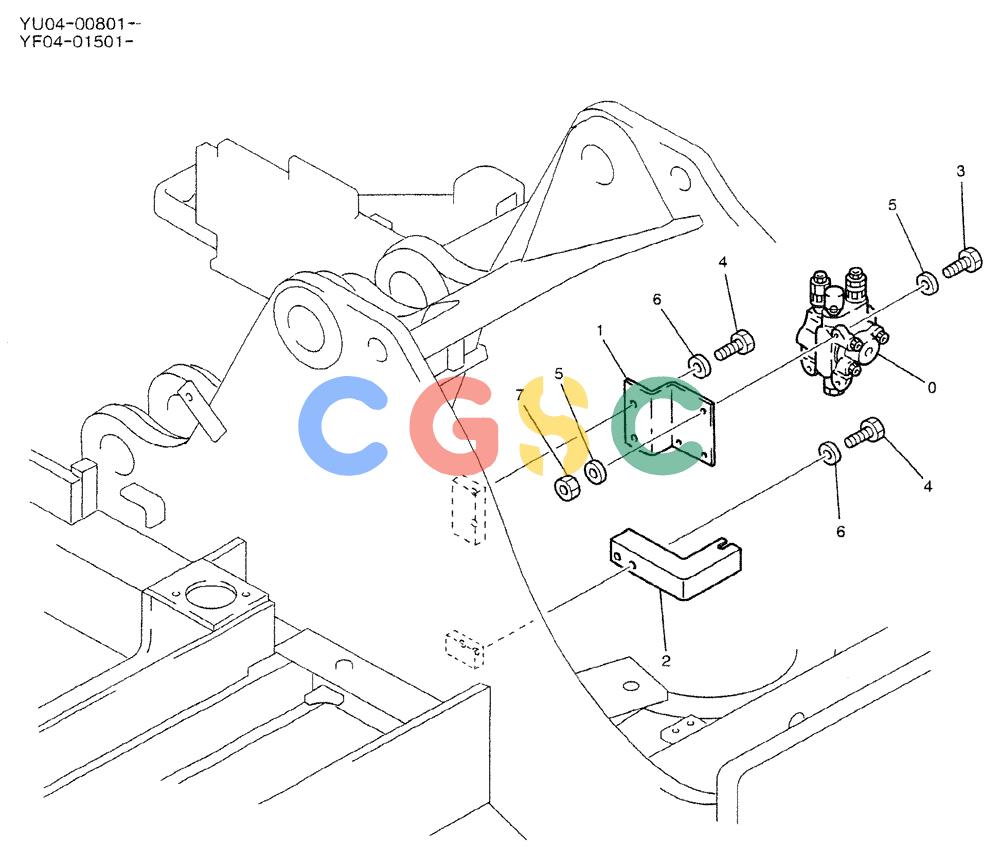

神钢零件查询(DOZER) - ATTACHMENT - SK235SR-1E, SK235SRNLC-1E, & SK235SRNLC-1ES (1/03-12/03) (01-002) - VALVE INSTAL Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
348 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | NSS | [1] | NOT SOLD SEPARAT | CONVALVE INSTAL |
| 0. | YN30V00035F1 | [1] | VALVE | KOBASSY, CONTROL |
| . . | YN64H00071F1 | [1] | VALVE INSTAL | |
| 1. | YN64H01090P1 | [1] | PLATE | KOB |
| 2. | YN64H01146P1 | [1] | SUPPORT | KOB |
| 3. | ZS28C08035 | [3] | SCREW,Hex Socket Head, M8 x 35mm | KOBM08x1.25x35mm |
| 4. | ZS18C12030 | [4] | SCREW,Hex, M12 x 30mm | KOBM12x1.75x30mm |
| 5. | ZW16H08000 | [6] | WASHER | KOBID 08 x OD 18 x Th 3.2mm |
| 6. | ZW16H12000 | [4] | WASHER | KOBID 13 x OD 26 x Th 3.2mm |
| 7. | ZN18C08007 | [3] | NUT | KOBM08x1.25mm |
