神钢零件查询(DOZER) - ATTACHMENT - SK235SR-1E, SK235SRNLC-1E, & SK235SRNLC-1ES (1/03-12/03) (01-005) - HYD LINES, SWIVEL Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
240 次

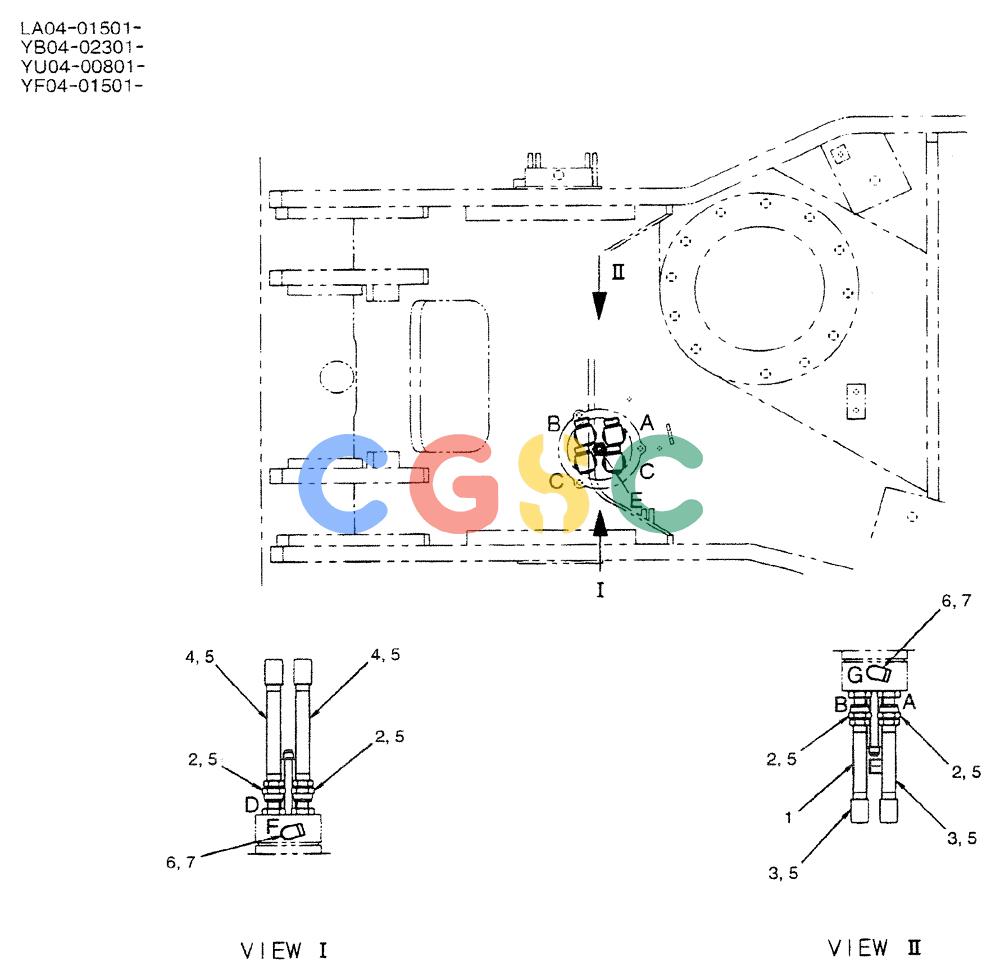

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YN19H00013F2 | [1] | HYD LINES, SWIVEL | |
| 1. | HH25X08008G2 | [1] | CONNECTION | KOB(Incls. O-Ring ZD12P01800) |
| 2. | HG23H12016G1 | [4] | HYD CONNECTOR | KOB1 3/16"-12UN-PF1" Superseded by part number: YW03H01227P1 |
| 3. | YN19H01003P1 | [2] | RIGID TUBE | KOB |
| 4. | YN19H01004P1 | [2] | RIGID TUBE | KOB |
| 5. | ZD12A01800 | [8] | O-RING,1.78mm Thk x 18.77mm ID, Cl 6 | KOBID 18.77 ± 0.12 x OD 22.33mm |
| 6. | ZA33F18008 | [2] | ELBOW | KOB |
| 7. | ZD12P01800 | [2] | O-RING | KOBID 17.8mm x OD 20.2mm |
