神钢零件查询(DOZER) - ATTACHMENT - SK235SR-1E, SK235SRNLC-1E, & SK235SRNLC-1ES (1/03-12/03) (01-004) - HYD LINES, UPP Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
689 次

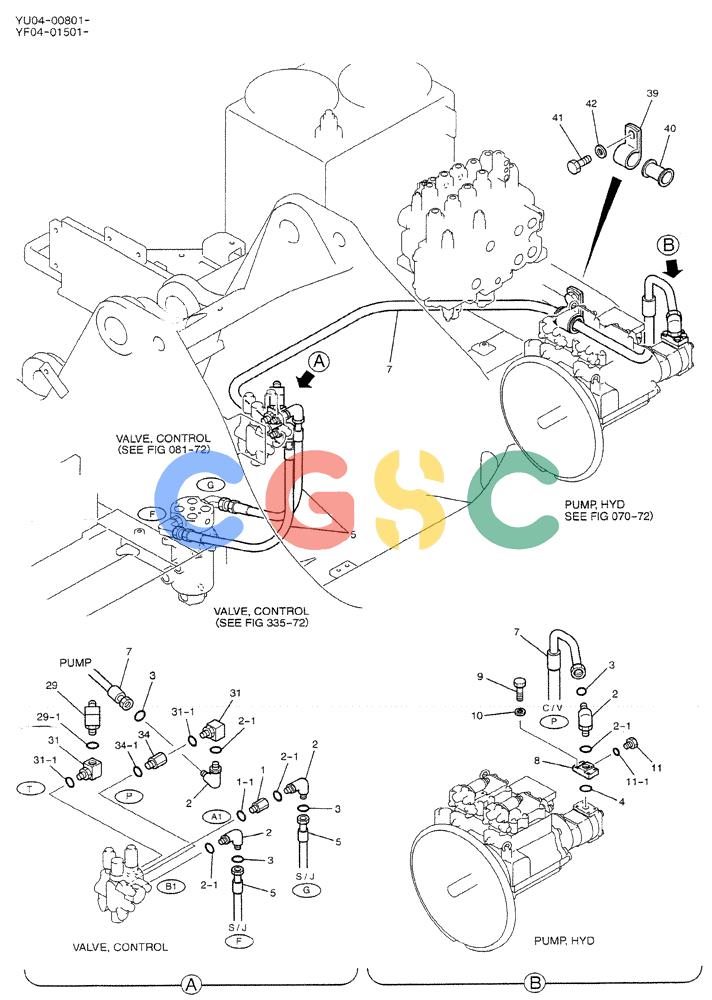

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YF03H00006F3 | [1] | HYD LINES, UPP | |
| 1. | 2444T2958 | [1] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P01800) |
| 1-1. | ZD12P01800 | [1] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 2. | ZA33F18008 | [4] | ELBOW | KOB |
| 2-1. | ZD12P01800 | [1] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 3. | ZD12P01800 | [4] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 4. | ZD12P03400 | [1] | O-RING,0.139" Thk x 1.296" ID, -219, Cl 6, 90 Duro | KOBID 33.70 ± 0.33 x OD 40mm |
| 5. | YN03H01473D1 | [2] | HOSE | KOBHOSE |
| 7. | YT03H01038D4 | [1] | HOSE | KOB Superseded by part number: YT03H01080D4 |
| 8. | YM30H01008P1 | [1] | FLANGE | KOBFLANGE |
| 9. | ZS28C10045 | [4] | SCREW,Hex Socket Head, M10 x 45mm | KOBM10x1.50x45mm |
| 10. | ZW26K10000 | [4] | LOCK WASHER | KOBLock -- ID 10 x OD 15.7 x Th 2.5mm Superseded by part number: 12581679 |
| 11. | ZE72X04000 | [1] | PLUG | KOB(PF 1/4) (Incls. O-Ring ZD12P01100) |
| 11-1. | ZD12P01100 | [1] | O-RING | KOBID 10.8mm x OD 13.2mm |
| 29. | 2444R399D3 | [1] | ELBOW | KOB90° -- 3/4"PFx1/2"PFx35.5mm Long (Incls. O-Ring ZD12P01800) |
| 29-1. | ZD12P01800 | [1] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 31. | 2444Z3715 | [2] | 90 ELBOW | KOB90° -- 1/2" PF x 56mm Long (Incls. O-Ring ZD12P01800) |
| 31-1. | ZD12P01800 | [1] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 34. | YR03H01125P1 | [1] | HYD CONNECTOR | KOB |
| 34-1. | ZD12P01800 | [1] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 39. | ZC46X31014 | [1] | CLIP | KOBClamp -- Ø31mm Single Cable |
| 40. | YX42H01127P1 | [1] | BUSHING | KOB |
| 41. | ZS18C12020 | [1] | SCREW,Hex, M12 x 20mm | KOBM12x1.75x20mm |
| 42. | ZW16H12000 | [1] | WASHER | KOBID 13 x OD 26 x Th 3.2mm |
