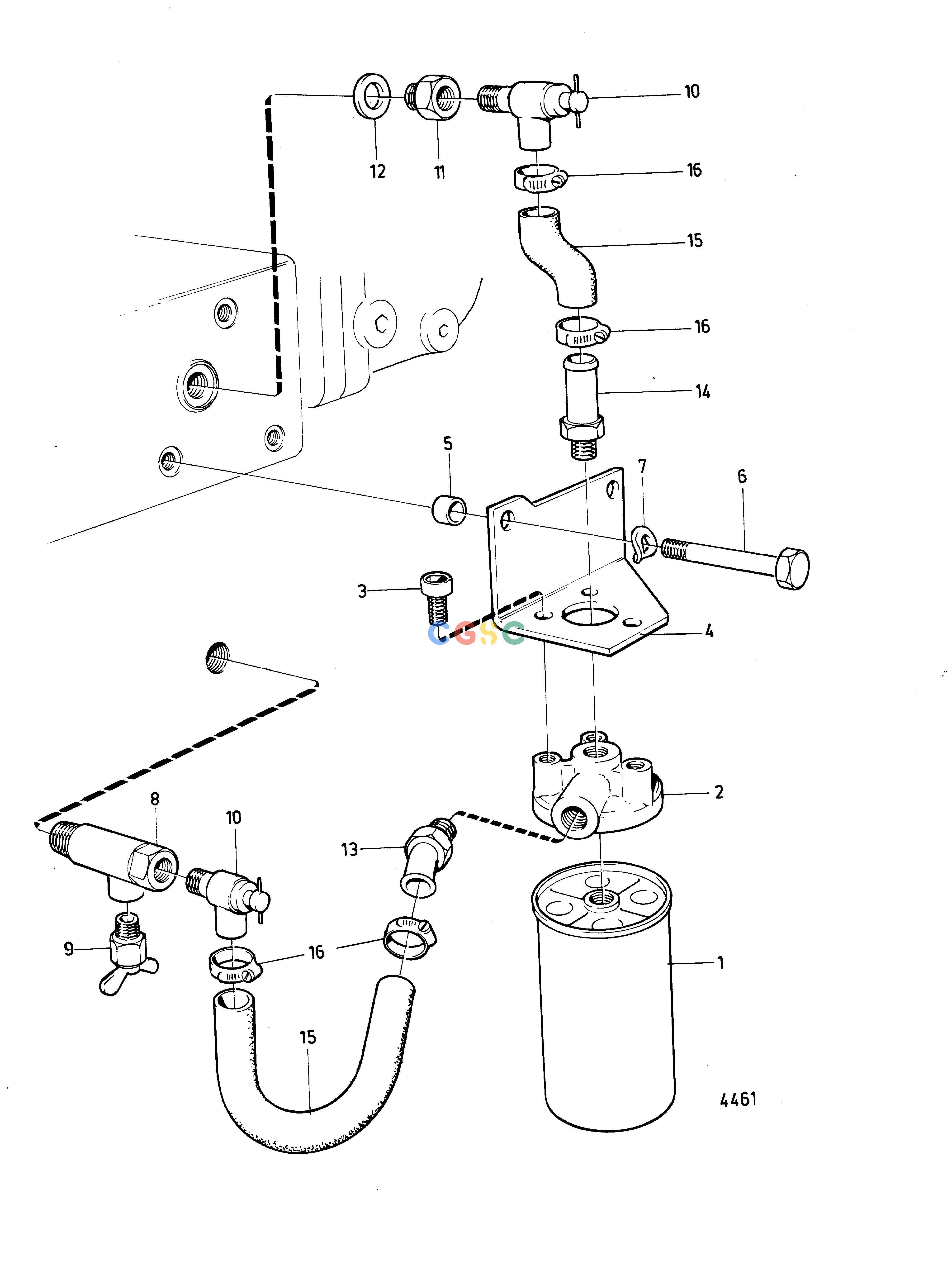

沃尔沃零件查询TAMD60CMiscellaneous EquipmentWater Filter and Installation ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
608 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
366822
|
[1] |
Filter
|
|
| 2. |
836440
|
[1] |
Filter housing
|
|
| 3. |
956569
|
[3] |
Hex. socket screw
|
|
| 4. |
842347
|
[1] |
Bracket
|
|
| 5. |
912130
|
[1] |
Spacer ring
|
|
| 6. |
941251
|
[2] |
Hexagon screw
|
|
| 7. |
942336
|
[2] |
Spring washer
|
|
| 8. |
842349
|
[1] |
Nipple
|
|
| 9. |
82745
|
[1] |
Shut-off cock
|
|
| 10. |
365287
|
[2] |
Faucet
|
|
| 11. |
837180
|
[1] |
Plug
|
|
| 12. |
469328
|
[1] |
Gasket
|
|
| 13. |
941534
|
[1] |
Elbow nipple
|
|
| 14. |
941534
|
[1] |
Elbow nipple
|
L=130mm
|
| 15. |
941995
|
[1] |
Hose
|
L=110mm
|
| 16. |
943472
|
[4] |
Hose clamp
|
|
