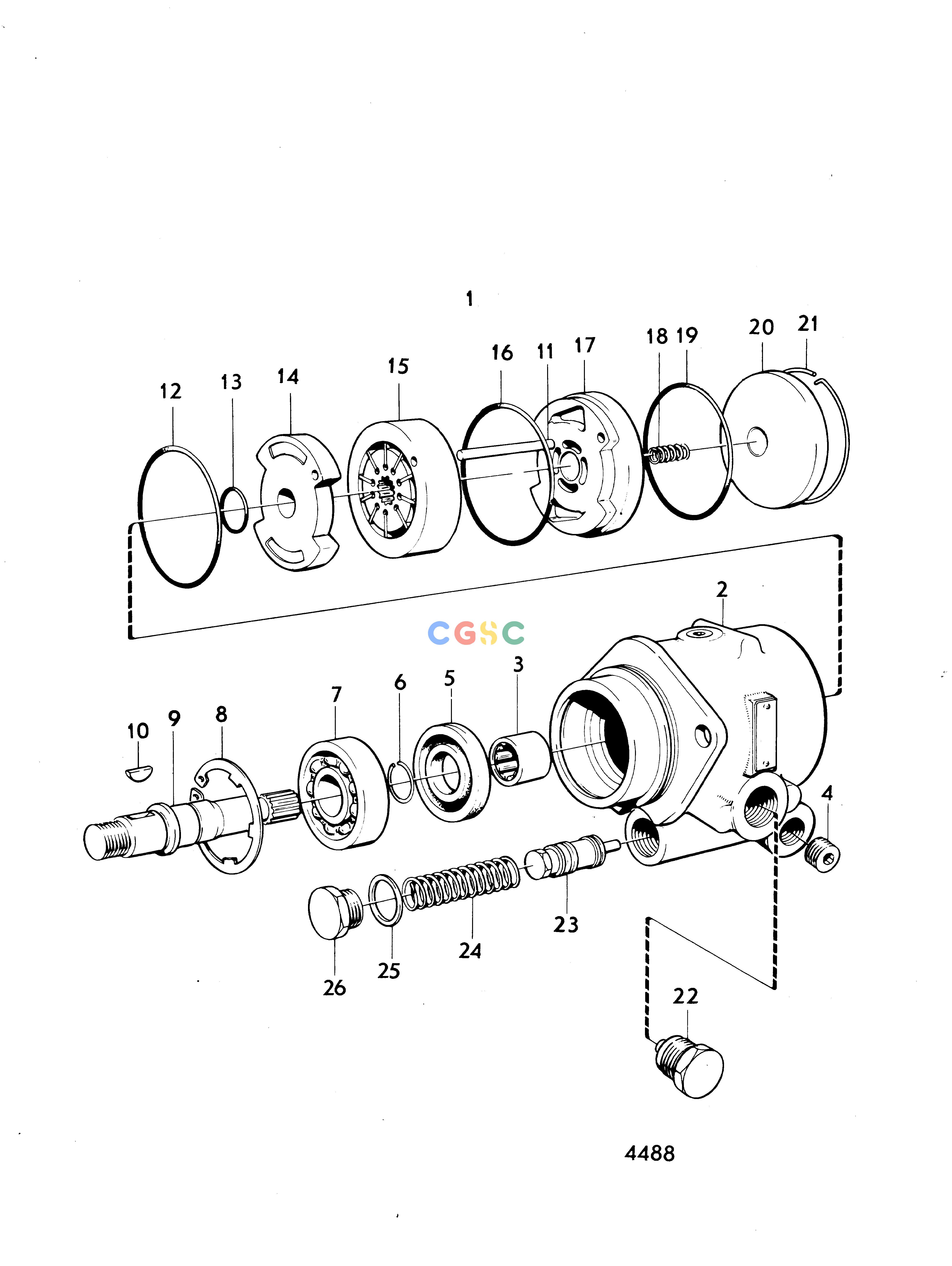

沃尔沃零件查询TAMD60CSteering SystemHydraulic PumpEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
599 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
364473
|
[1] |
Hydraulic pump
|
|
| 2. |
|
|
|
|
| 3. |
183354
|
[1] |
Needle roller bearin
|
|
| 4. |
684422
|
[1] |
Plug
|
|
| 5. |
681410
|
[1] |
Sealing ring
|
|
| 6. |
681411
|
[1] |
Snap ring
|
|
| 7. |
183731
|
[1] |
Ball bearing
|
|
| 8. |
323472
|
[1] |
Lock ring
|
|
| 9. |
1505356
|
[1] |
Shaft
|
|
| 10. |
1505357
|
[1] |
Woodruff key
|
|
| 11. |
1505358
|
[1] |
Pin
|
|
| 12. |
681416
|
[1] |
O-ring
|
|
| 13. |
681418
|
[1] |
O-ring
|
|
| 14. |
681417
|
[1] |
Plate
|
|
| 15. |
1505359
|
[1] |
Rotor kit
|
|
| 16. |
681420
|
[1] |
O-ring
|
|
| 17. |
681421
|
[1] |
Plate
|
|
| 18. |
681422
|
[1] |
Spring
|
|
| 19. |
681423
|
[1] |
O-ring
|
|
| 20. |
681424
|
[1] |
Cover
|
|
| 21. |
681425
|
[1] |
Retaining ring
|
|
| 22. |
1517278
|
[1] |
Valve
|
|
| 23. |
1517279
|
[1] |
Valve piston
|
Marked1,install. in pump housing marked1
|
| 23. |
1517280
|
[1] |
Valve piston
|
Marked2,install. in pump housing marked2
|
| 24. |
681428
|
[1] |
Spring
|
|
| 25. |
681430
|
[1] |
Gasket
|
|
| 26. |
681429
|
[1] |
Plug
|
|
