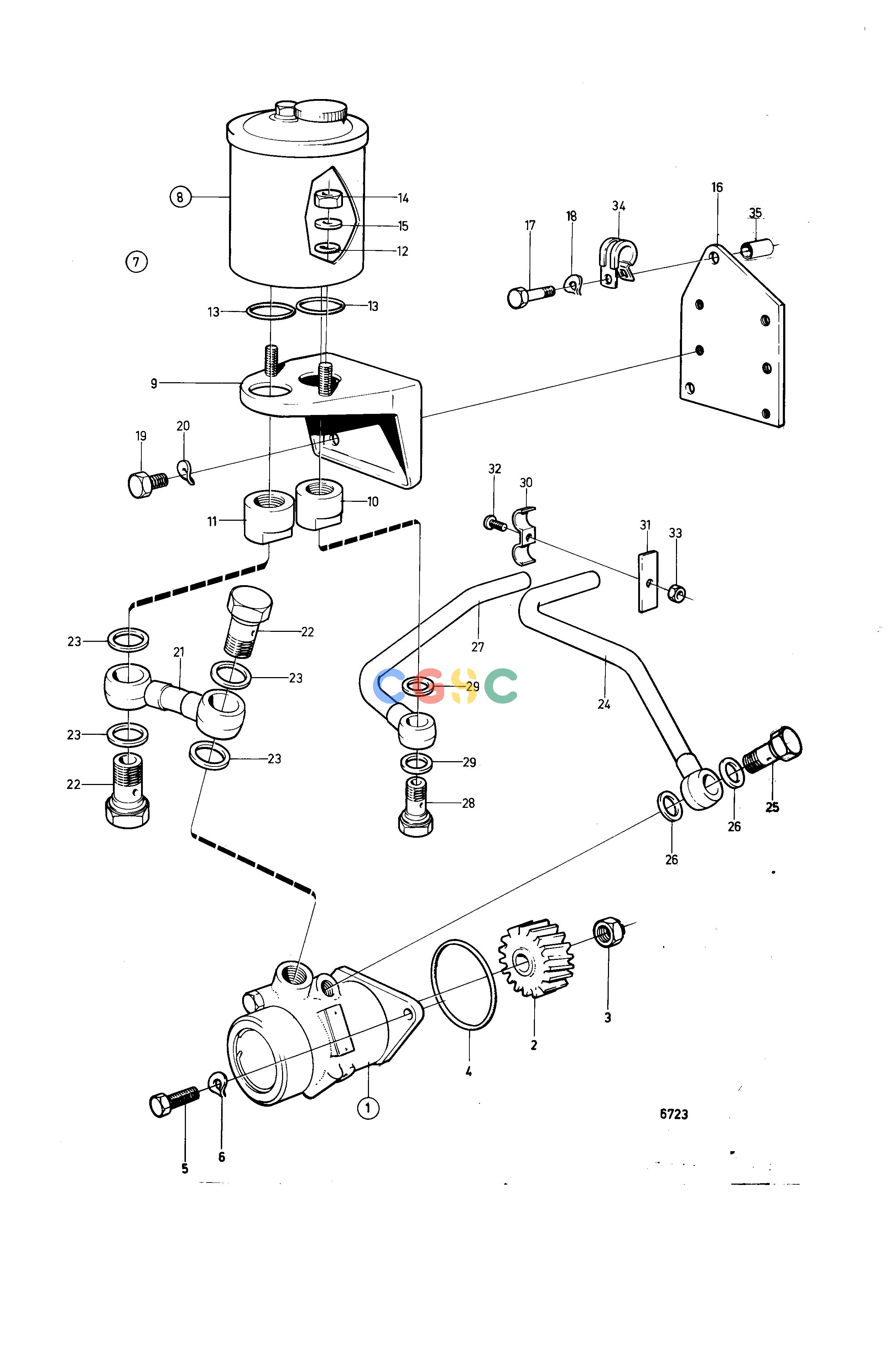

沃尔沃零件查询TAMD60CSteering SystemHydraulic Pump and Oil Reservoir with Installation ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
360 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
364473
|
[1] |
Hydraulic pump
|
|
| 2. |
465059
|
[1] |
Gear
|
|
| 3. |
1589593
|
[1] |
Nut
|
|
| 4. |
943646
|
[1] |
O-ring
|
|
| 5. |
955535
|
[1] |
Hexagon screw
|
L=32mm
|
| 5. |
955539
|
[1] |
Hexagon screw
|
L=64mm
|
| 6. |
942336
|
[2] |
Spring washer
|
|
| 7. |
327194
|
[1] |
Reservoir
|
|
| 8. |
323138
|
[1] |
Oil cooler
|
Repl by 327194
|
| 9. |
328378
|
[1] |
Bracket
|
|
| 10. |
328379
|
[1] |
Connecting sleeve
|
|
| 11. |
328380
|
[1] |
Connecting sleeve
|
|
| 12. |
328381
|
[2] |
O-ring
|
|
| 13. |
328382
|
[2] |
O-ring
|
|
| 14. |
955782
|
[2] |
Hexagon nut
|
|
| 15. |
941907
|
[2] |
Spring washer
|
|
| 16. |
842356
|
[1] |
Bracket
|
|
| 17. |
955526
|
[2] |
Hexagon screw
|
|
| 18. |
941907
|
[2] |
Spring washer
|
|
| 19. |
940098
|
[4] |
Hexagon screw
|
|
| 20. |
942336
|
[4] |
Spring washer
|
|
| 21. |
842357
|
[1] |
Tube
|
|
| 22. |
191620
|
[2] |
Hollow screw
|
|
| 23. |
907137
|
[4] |
Gasket
|
|
| 24. |
842358
|
[1] |
Tube
|
|
| 25. |
941686
|
[1] |
Hollow screw
|
|
| 26. |
957179
|
[2] |
Gasket
|
|
| 27. |
842359
|
[1] |
Tube
|
|
| 28. |
26013
|
[1] |
Hollow screw
|
|
| 29. |
957181
|
[2] |
Gasket
|
|
| 30. |
836671
|
[1] |
Clamp
|
|
| 31. |
821076
|
[1] |
Anchorage
|
|
| 32. |
950046
|
[2] |
Cross recessed screw
|
|
| 33. |
955825
|
[1] |
Hexagon nut
|
|
| 34. |
952627
|
[1] |
Clamp
|
|
| 35. |
912128
|
[2] |
Spacer ring
|
|
