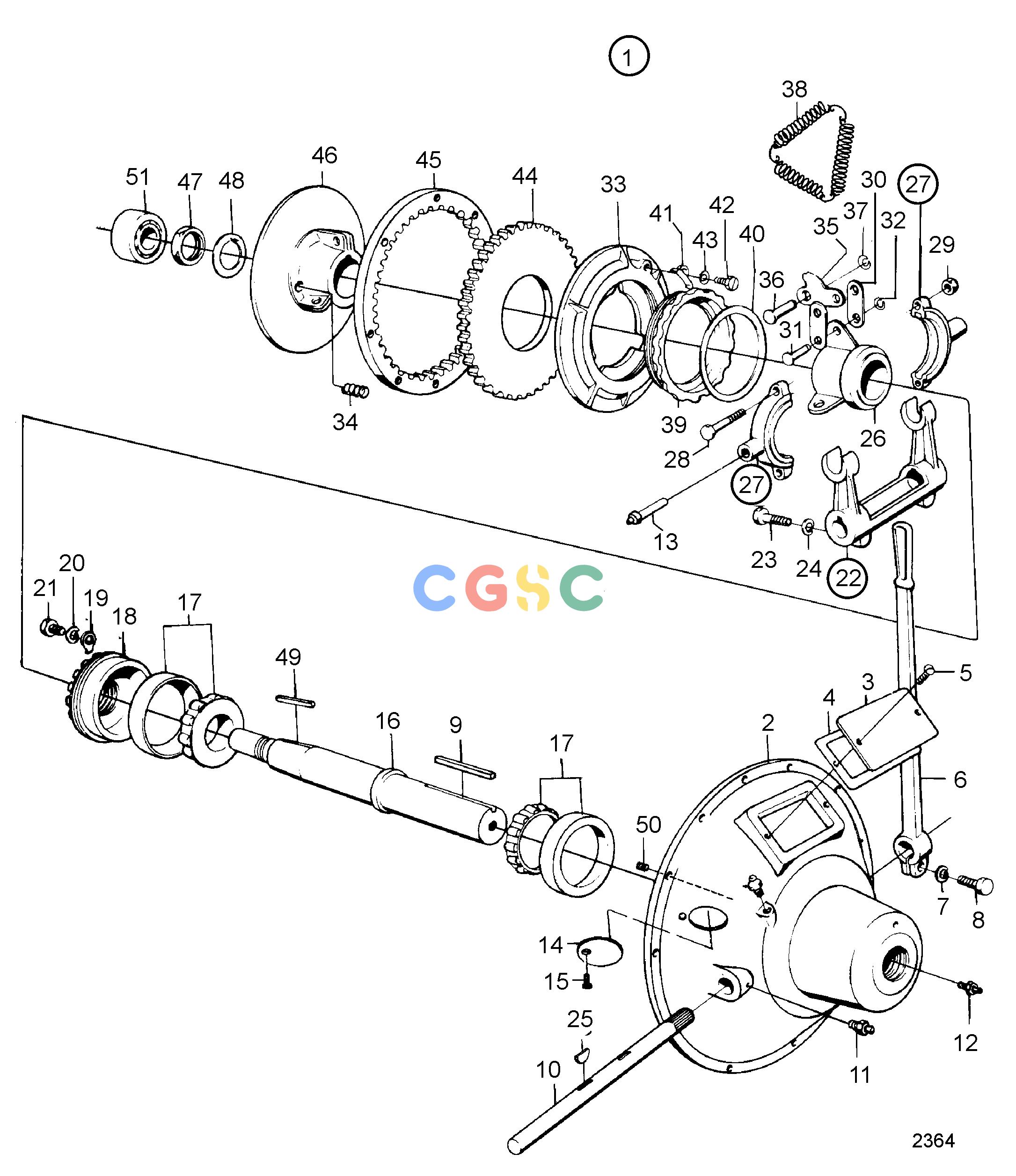

沃尔沃零件查询TAMD61A; TAMD62AClutch, Elastic CouplingClutch Rockford Borg Warner 10'', ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
596 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
820802
|
[1] |
Power take-off
|
PTA41025
|
| 2. |
|
|
|
|
| 3. |
815347
|
[1] |
Instruction
|
|
| 4. |
815334
|
[1] |
Gasket
|
|
| 5. |
950044
|
[2] |
Cross recessed screw
|
|
| 6. |
|
|
|
|
| 7. |
942336
|
[1] |
Spring washer
|
|
| 8. |
940162
|
[1] |
Hexagon screw
|
|
| 9. |
815259
|
[1] |
Key
|
|
| 10. |
827509
|
[1] |
Control shaft
|
|
| 11. |
819353
|
[2] |
Lubricator
|
|
| 12. |
827632
|
[2] |
Lubricator
|
|
| 13. |
815387
|
[1] |
Fitting
|
|
| 14. |
|
|
|
|
| 15. |
950020
|
[1] |
Cross recessed screw
|
|
| 16. |
815331
|
[1] |
Drive
|
|
| 17. |
815329
|
[2] |
Bearing
|
|
| 18. |
815325
|
[1] |
Bearing
|
|
| 19. |
815316
|
[1] |
Plate
|
|
| 20. |
941907
|
[1] |
Spring washer
|
|
| 21. |
940113
|
[1] |
Hexagon screw
|
|
| 22. |
815324
|
[1] |
Release fork
|
|
| 23. |
955535
|
[2] |
Hexagon screw
|
|
| 24. |
942336
|
[2] |
Spring washer
|
|
| 25. |
815320
|
[2] |
Woodruff key
|
|
| 26. |
815375
|
[1] |
Engaging sleeve
|
|
| 27. |
864617
|
[1] |
Release bearing
|
|
| 28. |
955662
|
[2] |
Hexagon screw
|
|
| 29. |
950373
|
[2] |
Lock nut
|
|
| 30. |
815371
|
[6] |
Link
|
|
| 31. |
815361
|
[3] |
Pin
|
|
| 32. |
815359
|
[3] |
Lock ring
|
|
| 33. |
815385
|
[1] |
Plate
|
|
| 34. |
815369
|
[3] |
Spring
|
|
| 35. |
815370
|
[3] |
Intermediate lever
|
|
| 36. |
815362
|
[3] |
Pin
|
|
| 37. |
815358
|
[3] |
Lock ring
|
|
| 38. |
815382
|
[1] |
Spring
|
|
| 39. |
825593
|
[1] |
Nut
|
|
| 40. |
825594
|
[1] |
Washer
|
|
| 41. |
815378
|
[1] |
Lock
|
|
| 42. |
827520
|
[1] |
Screw
|
|
| 43. |
940155
|
[1] |
Toothed washer
|
|
| 44. |
815354
|
[1] |
Disc
|
|
| 45. |
815353
|
[1] |
Gear ring
|
|
| 46. |
815363
|
[1] |
Clutch
|
|
| 47. |
815327
|
[1] |
Nut
|
|
| 48. |
815328
|
[1] |
Washer
|
|
| 49. |
815396
|
[1] |
Key
|
|
| 50. |
815330
|
[1] |
Set screw
|
|
| 51. |
815338
|
[1] |
Bearing
|
|
