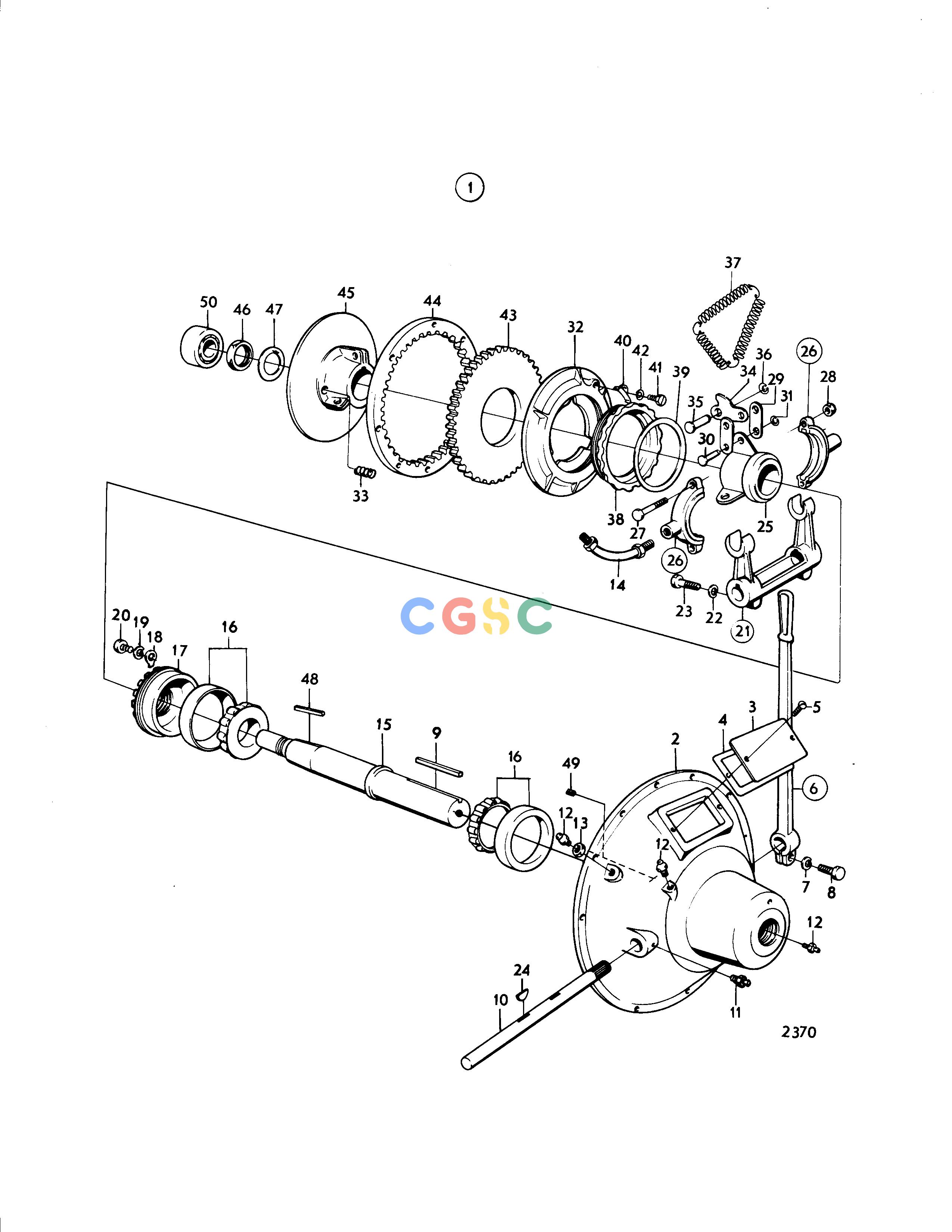

沃尔沃零件查询TAMD61A; TAMD62AClutch, Elastic CouplingClutch Rockford Borg Warner 8'', Components: 815263EPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
778 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
815263
|
[1] |
Clutch
|
PTA4860
|
| 2. |
|
|
|
|
| 3. |
815347
|
[1] |
Instruction
|
|
| 4. |
815334
|
[1] |
Gasket
|
|
| 5. |
950044
|
[2] |
Cross recessed screw
|
|
| 6. |
815333
|
[1] |
Control lever
|
Is not included in clutch 849716 complete
|
| 7. |
942336
|
[1] |
Spring washer
|
|
| 8. |
940162
|
[1] |
Hexagon screw
|
|
| 9. |
815303
|
[1] |
Key
|
|
| 10. |
815319
|
[1] |
Shaft
|
|
| 11. |
819353
|
[2] |
Lubricator
|
|
| 12. |
827632
|
[3] |
Lubricator
|
|
| 13. |
815351
|
[1] |
Nut
|
|
| 14. |
819891
|
[1] |
Lubricating hose
|
|
| 15. |
815346
|
[1] |
Drive
|
|
| 16. |
815340
|
[2] |
Bearing
|
|
| 17. |
815345
|
[1] |
Retainer
|
|
| 18. |
815316
|
[1] |
Plate
|
|
| 19. |
941907
|
[1] |
Spring washer
|
|
| 20. |
940113
|
[1] |
Hexagon screw
|
|
| 21. |
815337
|
[1] |
Release fork
|
|
| 22. |
942336
|
[2] |
Spring washer
|
|
| 23. |
955535
|
[2] |
Hexagon screw
|
|
| 24. |
815320
|
[2] |
Woodruff key
|
|
| 25. |
815373
|
[1] |
Engaging sleeve
|
|
| 26. |
819893
|
[1] |
Collar
|
|
| 27. |
955661
|
[2] |
Hexagon screw
|
|
| 28. |
950373
|
[2] |
Lock nut
|
|
| 29. |
815371
|
[6] |
Link
|
|
| 30. |
815361
|
[6] |
Pin
|
|
| 31. |
815359
|
[6] |
Lock ring
|
|
| 32. |
815367
|
[1] |
Plate
|
|
| 33. |
815372
|
[3] |
Spring
|
|
| 34. |
815370
|
[3] |
Intermediate lever
|
|
| 35. |
815362
|
[3] |
Pin
|
|
| 36. |
815358
|
[3] |
Lock ring
|
|
| 37. |
815379
|
[1] |
Spring
|
|
| 38. |
817763
|
[1] |
Nut
|
|
| 39. |
817764
|
[1] |
Adjusting washer
|
|
| 40. |
815377
|
[1] |
Lock
|
|
| 41. |
827520
|
[1] |
Screw
|
|
| 42. |
940155
|
[1] |
Toothed washer
|
|
| 43. |
815357
|
[1] |
Disc
|
|
| 44. |
814879
|
[1] |
Gear ring
|
Is not included in clutch 849716 complete
|
| 45. |
815366
|
[1] |
Clutch
|
|
| 46. |
815321
|
[1] |
Nut
|
|
| 47. |
815322
|
[1] |
Washer
|
|
| 48. |
815335
|
[1] |
Key
|
|
| 49. |
815330
|
[1] |
Set screw
|
|
| 50. |
183455
|
[1] |
Ball bearing
|
Is not included in clutch 849716 complete.
|
