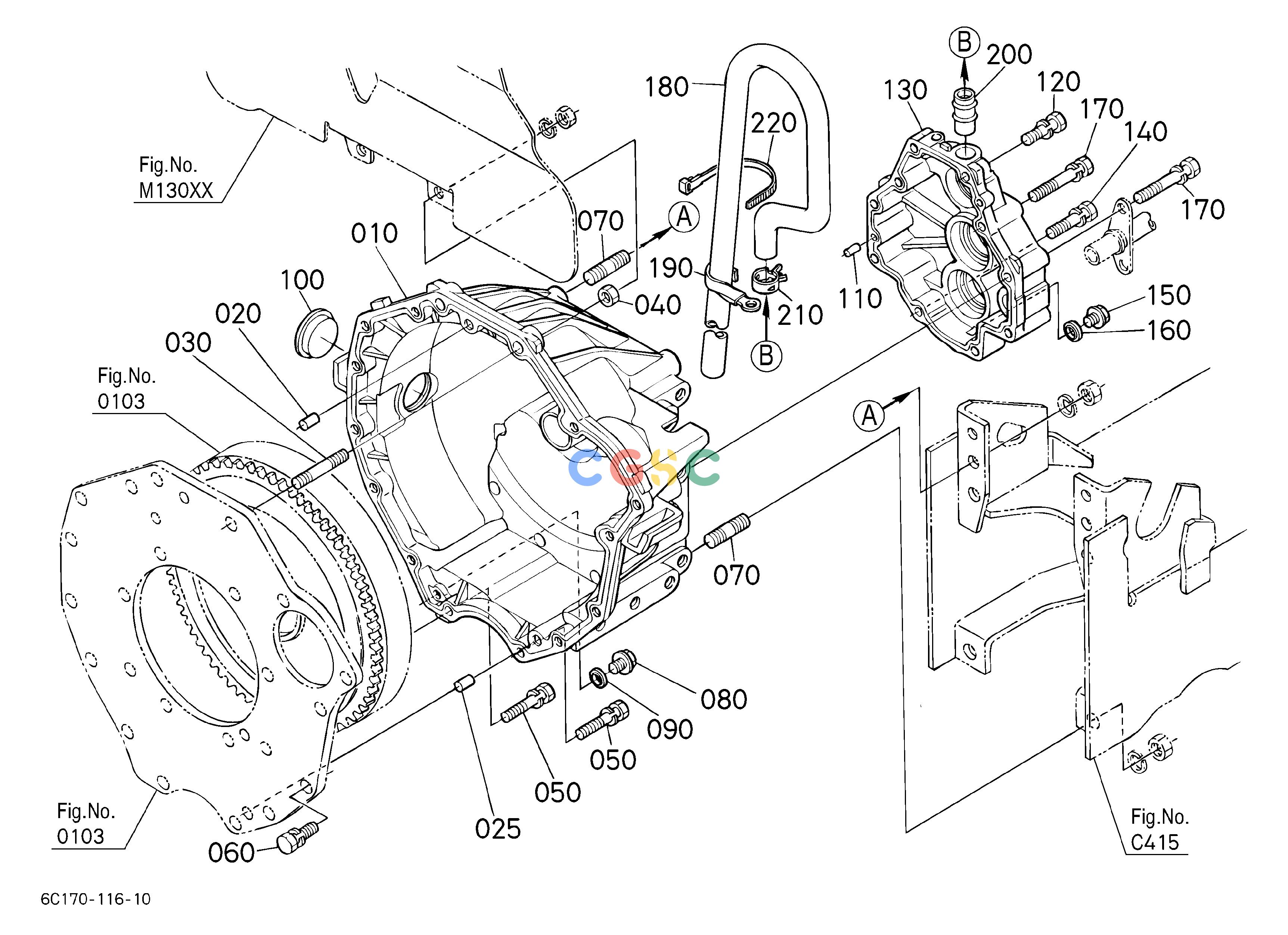

久保田零件查询C40101 CLUTCH HOUSING ## S.No.<=15496 CLUTCHEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
776 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C04013114
|
[1] |
HOUSING CLUTCH
|
11.4400(lbs); 5.200
|
| 020. |
0501200814
|
[1] |
PIN STRAIGHT
|
0.0132(lbs); 0.006
|
| 025. |
6661111160
|
[1] |
PIN KNOCK
|
0.0220(lbs); 0.010
|
| 030. |
0151751045
|
[2] |
STUD
|
0.0704(lbs); 0.032
|
| 040. |
0211850100
|
[2] |
NUT
|
0.0110(lbs); 0.005
|
| 050. |
0112350845
|
[2] |
BOLT
|
0.0440(lbs); 0.020
|
| 060. |
0112350830
|
[9] |
BOLT
|
0.0330(lbs); 0.015
|
| 070. |
0155551225
|
[4] |
STUD
|
0.0858(lbs); 0.039
|
| 080. |
0175450812
|
[1] |
BOLT FLANGE
|
0.0220(lbs); 0.010
|
| 090. |
0471700800
|
[1] |
WASHER WITH RUBBER
|
0.0022(lbs); 0.001
|
| 100. |
3741013124
|
[1] |
PLUG
|
0.0440(lbs); 0.020
|
| 110. |
0501200614
|
[2] |
PIN STRAIGHT
|
0.0088(lbs); 0.004
|
| 120. |
0112350835
|
[2] |
BOLT
|
0.0440(lbs); 0.020
|
| 130. |
3272113122
|
[1] |
COVER CLUTCH HOUSING
|
1.9800(lbs); 0.900
|
| 140. |
0112350840
|
[2] |
BOLT
|
0.0396(lbs); 0.018
|
| 150. |
0633135010
|
[1] |
PLUG
|
0.0264(lbs); 0.012
|
| 160. |
0471701000
|
[1] |
WASHER WITH RUBBER
|
0.0022(lbs); 0.001
|
| 170. |
0112350860
|
[6] |
BOLT
|
0.0440(lbs); 0.020
|
| 180. |
6C04013186
|
[1] |
HOSE BREATHER
|
0.4620(lbs); 0.210
|
| 190. |
3415029390
|
[1] |
CLAMP CORD
|
0.0088(lbs); 0.004
|
| 200. |
6C04013140
|
[1] |
JOINT PIPE
|
0.0352(lbs); 0.016
|
| 210. |
3272139160
|
[1] |
CLAMP HOSE
|
0.0110(lbs); 0.005
|
| 220. |
5531141260
|
[1] |
BAND CORD
|
0.0154(lbs); 0.007
|
