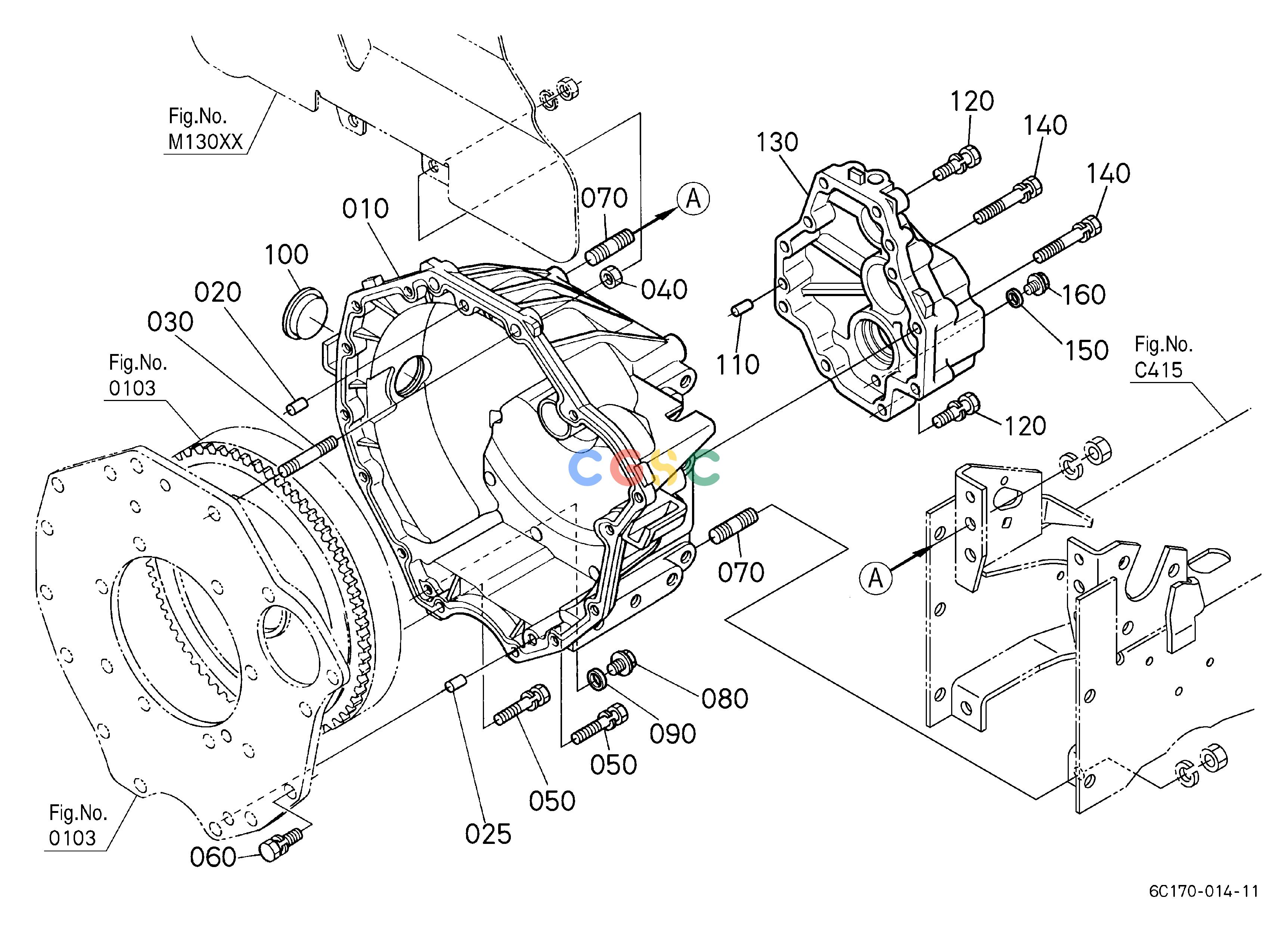

久保田零件查询C40102 CLUTCH HOUSING ## S.No.>=50101 CLUTCHEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
240 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C04013114
|
[1] |
HOUSING CLUTCH
|
11.4400(lbs); 5.200
|
| 020. |
0501200814
|
[1] |
PIN STRAIGHT
|
0.0132(lbs); 0.006
|
| 025. |
6661111160
|
[1] |
PIN KNOCK
|
0.0220(lbs); 0.010
|
| 030. |
0151751045
|
[2] |
STUD
|
0.0704(lbs); 0.032
|
| 040. |
0211850100
|
[2] |
NUT
|
0.0110(lbs); 0.005
|
| 050. |
0112350845
|
[2] |
BOLT
|
0.0440(lbs); 0.020
|
| 060. |
0112350830
|
[9] |
BOLT
|
0.0330(lbs); 0.015
|
| 070. |
0155551225
|
[4] |
STUD
|
0.0858(lbs); 0.039
|
| 080. |
0175450812
|
[1] |
BOLT FLANGE
|
0.0220(lbs); 0.010
|
| 090. |
0471700800
|
[1] |
WASHER WITH RUBBER
|
0.0022(lbs); 0.001
|
| 100. |
3741013124
|
[1] |
PLUG
|
0.0440(lbs); 0.020
|
| 110. |
0501200614
|
[2] |
PIN STRAIGHT
|
0.0088(lbs); 0.004
|
| 120. |
0112350835
|
[4] |
BOLT
|
0.0440(lbs); 0.020
|
| 130. |
6C14013120
|
[1] |
COVER CLUTCH HOUSING
|
2.3320(lbs); 1.060
|
| 140. |
0112350850
|
[6] |
BOLT
|
0.0440(lbs); 0.020
|
| 150. |
0471701000
|
[1] |
WASHER WITH RUBBER
|
0.0022(lbs); 0.001
|
| 160. |
0177451010
|
[1] |
BOLT FLANGE
|
0.0374(lbs); 0.017
|
