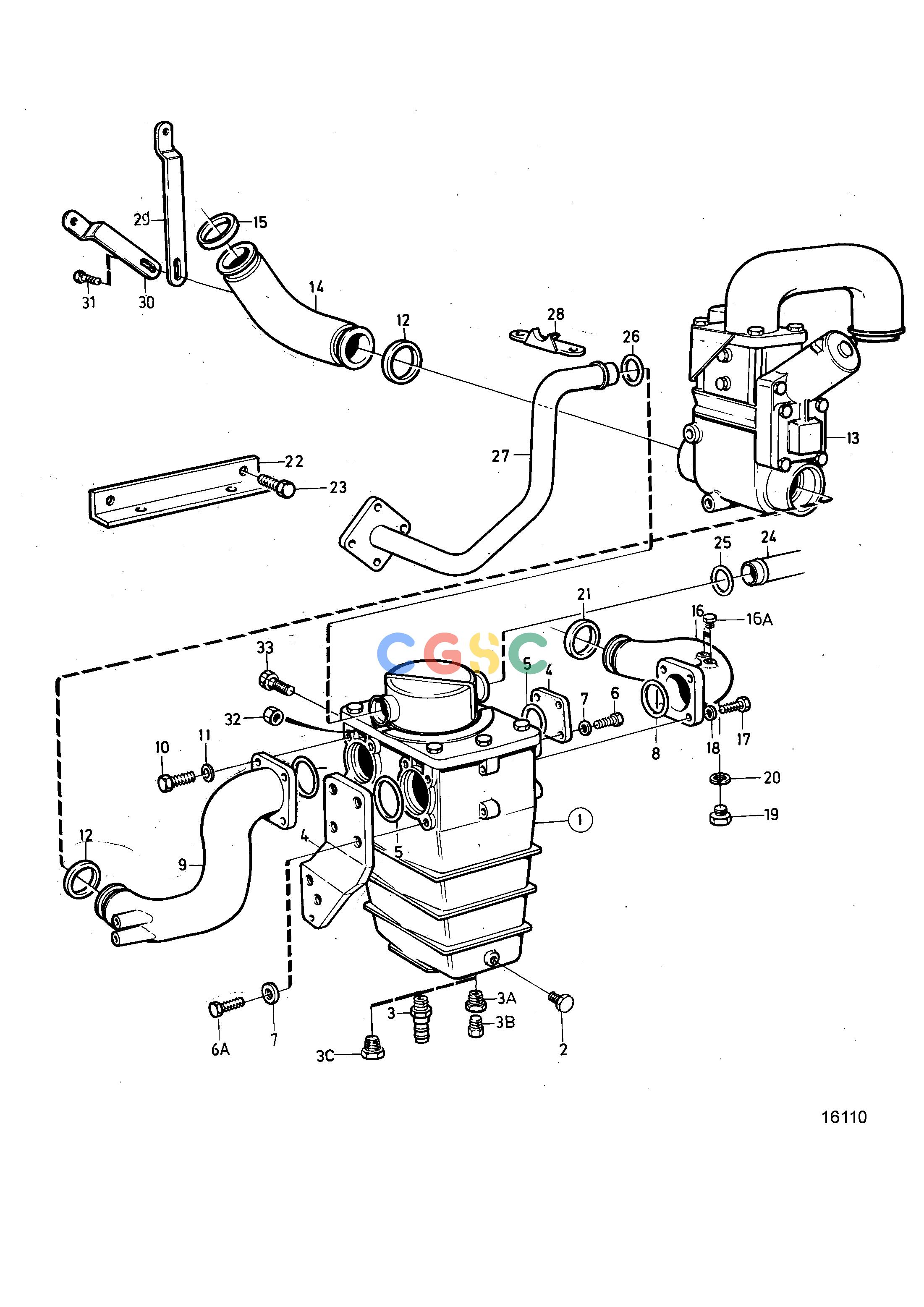

沃尔沃零件查询TAMD61A; TAMD62ACooling SystemAfter Cooler: BEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
318 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
847580
|
[1] |
Heat exchanger, standard
|
Repl by 864916
|
| 1. |
864916
|
[1] |
Heat exchanger, classifiable
|
As a spare part a classified heat exchanger is obtained.
|
| 2. |
479979
|
[1] |
Plug
|
|
| 3A. |
332262
|
[1] |
Reduction nipple
|
Replaced by plug 3825335.
|
| 3B. |
861551
|
[1] |
Plug
|
Replaced by plug 3825335.
|
| 3C. |
3825335
|
[1] |
Plug
|
Later prod
|
| 4. |
863367
|
[1] |
Bracket
|
|
| 5. |
949805
|
[2] |
O-ring
|
|
| 6. |
944926
|
[4] |
Flange screw
|
|
| 6A. |
946173
|
[4] |
Flange screw
|
|
| 7. |
941907
|
[8] |
Spring washer
|
|
| 8. |
949805
|
[2] |
O-ring
|
|
| 9. |
848576
|
[1] |
Connecting pipe
|
Throttle housing-after cooling.
|
| 10. |
955296
|
[4] |
Hexagon screw
|
|
| 11. |
941907
|
[4] |
Spring washer
|
|
| 12. |
864723
|
[2] |
Sealing ring
|
|
| 13. |
7746650_043
|
|
Starter element, by-pass valve
|
|
| 14. |
847819
|
[1] |
Connecting pipe
|
Turbo-throttle housing
|
| 15. |
864722
|
[1] |
Sealing ring
|
|
| 16. |
3825376
|
[1] |
Connecting pipe
|
After cooler-inlet manifold., (847770)
|
| 16A. |
479979
|
[2] |
Plug
|
|
| 17. |
955296
|
[4] |
Hexagon screw
|
|
| 18. |
941907
|
[4] |
Spring washer
|
|
| 19. |
960632
|
[1] |
Plug
|
|
| 20. |
947624
|
[1] |
Gasket
|
|
| 21. |
469508
|
[1] |
O-ring
|
|
| 22. |
848101
|
[1] |
Bracket
|
|
| 23. |
946173
|
[4] |
Flange screw
|
|
| 24. |
864970
|
[1] |
Coolant pipe
|
After cooler-heat exchanger.
|
| 25. |
466739
|
[1] |
O-ring
|
|
| 26. |
466739
|
[1] |
O-ring
|
|
| 27. |
864973
|
[1] |
Coolant pipe
|
See group 44
|
| 28. |
864918
|
[1] |
Retainer
|
|
| 29. |
849606
|
[1] |
Bracket
|
|
| 30. |
864479
|
[1] |
Bracket
|
|
| 31. |
945414
|
[1] |
Flange screw
|
L=14mm
|
| 32. |
946036
|
[2] |
Lock nut
|
|
| 33. |
945444
|
[2] |
Flange screw
|
|
| 33. |
|
|
|
See group 30
|
