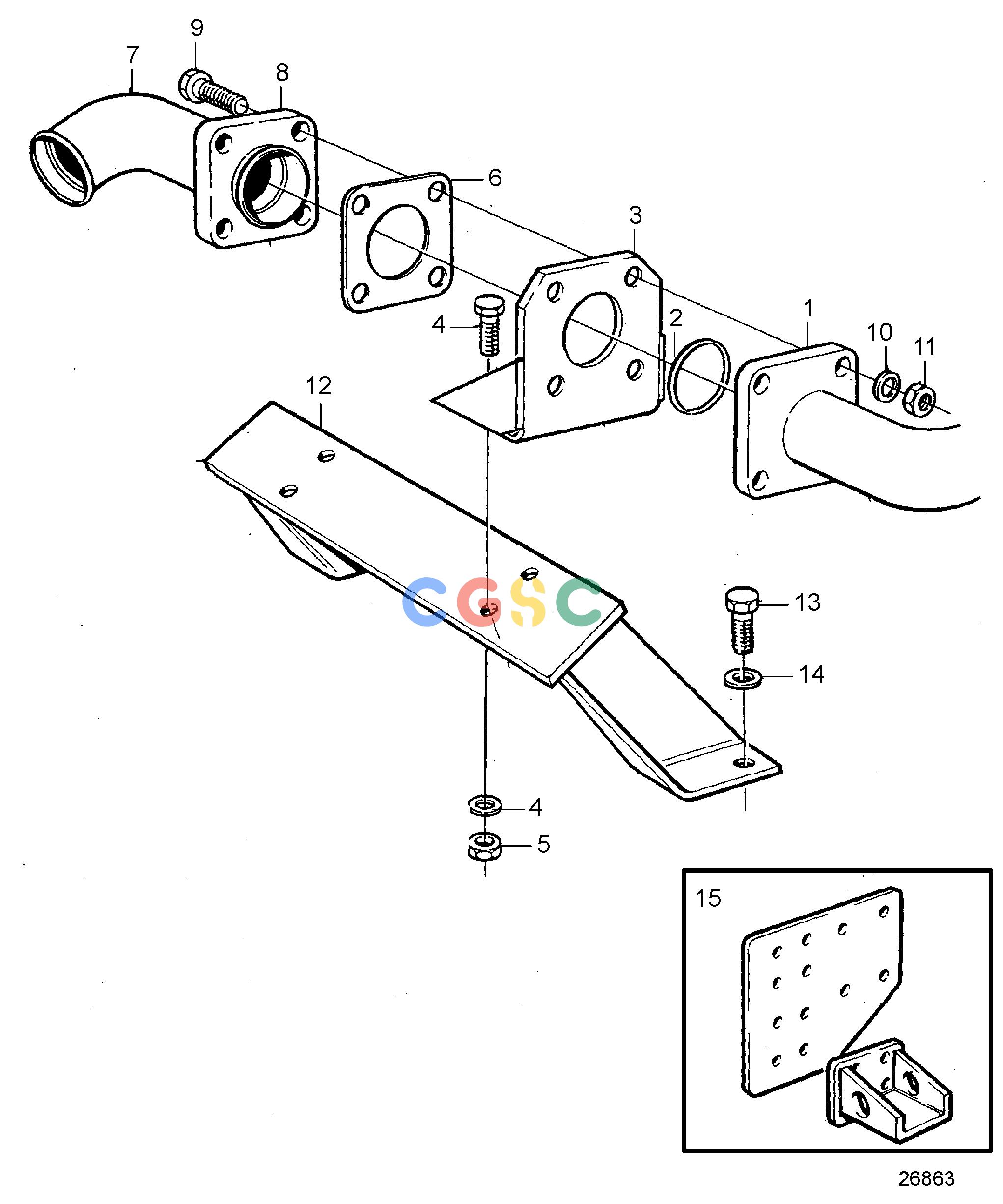

沃尔沃零件查询TAMD61A; TAMD62ACooling SystemConnecting Components for AuxiliaryEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
769 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
864973
|
[1] |
Coolant pipe
|
|
| 2. |
864491
|
[1] |
Gasket
|
|
| 3. |
862052
|
[1] |
Bracket
|
|
| 4. |
955295
|
[2] |
Hexagon screw
|
|
| 5. |
941907
|
[2] |
Spring washer
|
|
| 6. |
862592
|
[1] |
Gasket
|
|
| 7. |
848596
|
[1] |
Hose attachment
|
|
| 8. |
842029
|
[1] |
Flange
|
|
| 9. |
970949
|
[4] |
Hexagon screw
|
(955319)
|
| 10. |
941908
|
[4] |
Spring washer
|
|
| 11. |
955783
|
[4] |
Hexagon nut
|
|
| 12. |
848098
|
[1] |
Bracket
|
|
| 13. |
970971
|
[2] |
Hexagon screw
|
|
| 14. |
940280
|
[2] |
Spring washer
|
|
| 15. |
|
|
|
See group 21
|
