神钢零件查询(DOZER) - ATTACHMENT - SK70SR-1E EXCAVATORS ASN YT02-04001 (1/04-12/04) (02-003) - LOW GROUP (PTPA DOZER) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
421 次

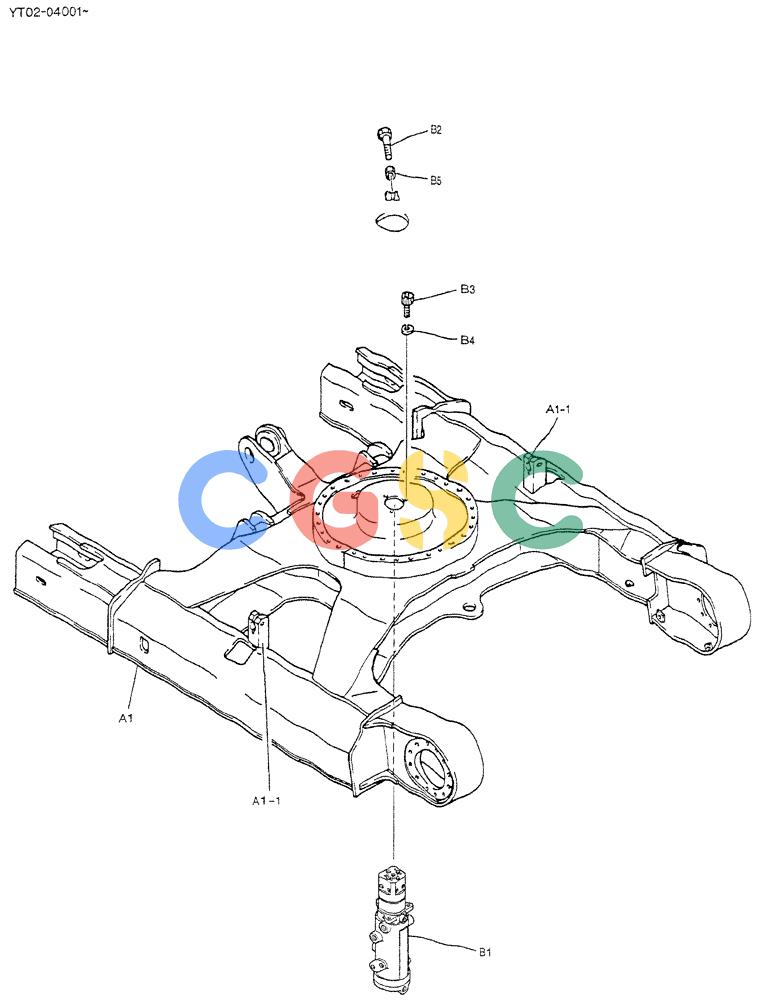

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| A1. | YT02F00012P1 | [1] | FRAME, LOW | |
| A1-1. | YR07F01019P1 | [2] | SUPPORT | KOB |
| . . | YT19H00008F1 | [1] | JOINT INSTAL, SWIVEL | |
| B1. | YT55V00002F1 | [1] | HYDRAULIC SWIVEL | KOBJOINT ASSY, SWIVEL Superseded by part number: YT55V00002F2 |
| B2. | ZS18C16100 | [1] | SCREW,Hex, M16 x 100mm | KOBM16x2.0x100mm |
| B3. | ZS23C12020 | [3] | CAPSCREW,Hex Socket Head, M12 x 20mm | KOBSCREW M12x1.75x20mm |
| B4. | ZW26X12000 | [3] | LOCK WASHER | KOBID 12 x OD 21 x Th 3.0mm |
| B5. | ZN18C16013 | [1] | NUT | KOBM16x2.0mm |
