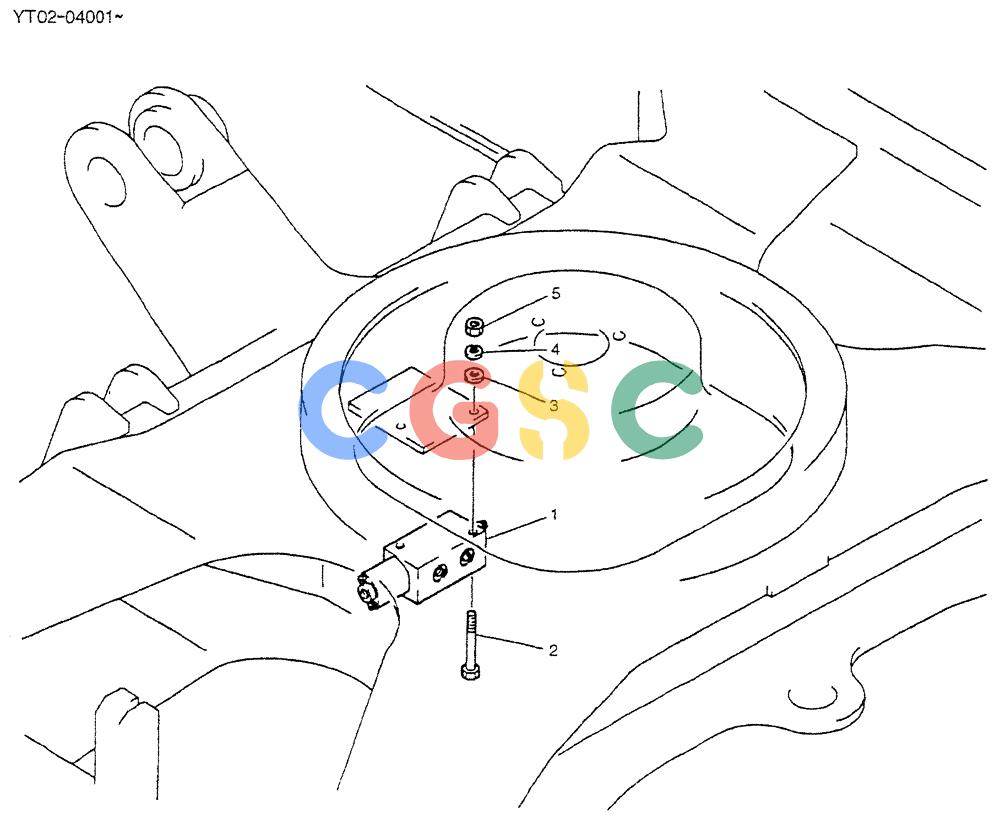

神钢零件查询(DOZER) - ATTACHMENT - SK70SR-1E EXCAVATORS ASN YT02-04001 (1/04-12/04) (02-004) - VALVE INSTAL (PTPA DOZER) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
789 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT64H00018F1 | [1] | VALVE INSTAL | |
| 1. | PR30V00004F1 | [1] | VALVE | KOBASSY, SELECTOR |
| 2. | ZS18C08080 | [2] | SCREW,Hex, M8 x 80mm | KOBM08x1.25x80mm |
| 3. | ZW16X08000 | [2] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| 4. | ZW26X08000 | [2] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 5. | ZN18C08007 | [2] | NUT | KOBM08x1.25mm |
