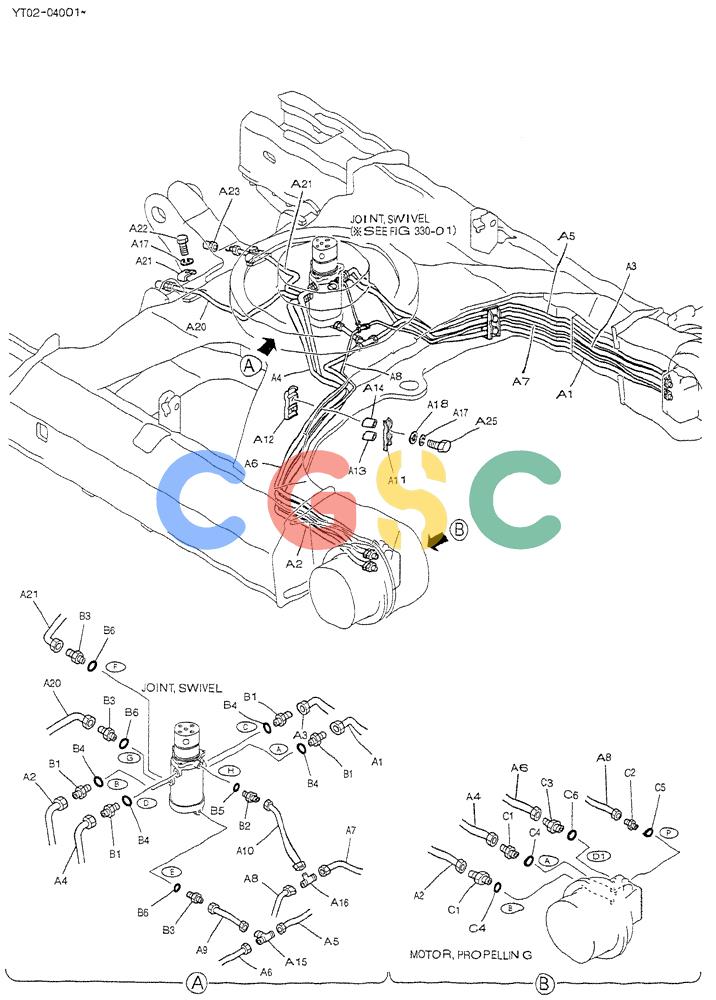

神钢零件查询(DOZER) - ATTACHMENT - SK70SR-1E EXCAVATORS ASN YT02-04001 (1/04-12/04) (02-007) - HYD LINES, LOW (WITHOUT DOZER) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
544 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YT02H00015F1 | [1] | HYD. LINES, LOW | |
| A1. | LF02H01001P1 | [1] | TUBE | KOB |
| A2. | LF02H01002P1 | [1] | TUBE | KOB |
| A3. | LF02H01003P1 | [1] | TUBE | KOB |
| A4. | LF02H01004P1 | [1] | TUBE | KOB |
| A5. | LF02H01005P1 | [1] | TUBE | KOB |
| A6. | LF02H01006P1 | [1] | TUBE | KOB |
| A7. | LF02H01007P1 | [1] | TUBE | KOB |
| A8. | LF02H01008P1 | [1] | TUBE | KOB |
| A9. | 2418T21766 | [1] | TUBE | KOB |
| A10. | 2418T16830 | [1] | TUBE | KOB |
| A11. | 2432P2657 | [2] | CLAMP | KOB |
| A12. | 2432T5305 | [2] | CLAMP | KOB |
| A13. | 2418T24324D1 | [2] | SPACER | KOB |
| A14. | LE02H01031P1 | [2] | SPACER | KOB |
| A15. | ZA53B15000 | [1] | TEE | KOB |
| A16. | ZA53B10000 | [1] | TEE | KOB(3) M16x1.50x46mm Long (No O-Ring supplied) |
| A17. | ZW26X08000 | [6] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| A18. | ZW16X08000 | [4] | WASHER,8mm ID x 17mm OD x 1.6mm Thk | KOBID 08 x OD 17 x Th 1.6mm |
| A19. | YT02H01009P1 | [1] | ELBOW | KOB |
| A20. | YT02H01010P1 | [1] | ELBOW | KOB |
| A21. | ZC26X15009 | [2] | CLAMP | KOB |
| A22. | ZS18C08040 | [6] | SCREW,Hex, M8 x 40mm | KOBM08x1.25x40mm |
| A23. | 2444Z2729D2 | [2] | PLUG | KOB |
| . . | YR19H00001F1 | [1] | HYD LINES, SWIVEL | |
| B1. | ZA23F18008 | [4] | HYD CONNECTOR | KOB1/2" PF - M26x1.50x41mm Long (No O-Ring supplied) |
| B2. | ZA23F10004 | [1] | HYD CONNECTOR | KOB1/4" PF x M16x1.50 x 33mm Long |
| B3. | ZA23F15006 | [3] | HYD CONNECTOR | KOB3/8"PF - M22x1.50 x 37mm Long (No O-Ring supplied) |
| B4. | ZD12P01800 | [4] | O-RING | KOBID 17.8mm x OD 20.2mm |
| B5. | ZD12P01100 | [1] | O-RING | KOBID 10.8mm x OD 13.2mm |
| B6. | ZD12P01400 | [3] | O-RING | KOBID 13.80 ± 0.19 x OD 18mm |
| . . | YR12H00001F1 | [1] | HYD LINES, PROPEL | |
| C1. | ZA23F18008 | [4] | HYD CONNECTOR | KOB1/2" PF - M26x1.50x41mm Long (No O-Ring supplied) |
| C2. | ZA23F10004 | [2] | HYD CONNECTOR | KOB1/4" PF x M16x1.50 x 33mm Long |
| C3. | ZA23F15006 | [2] | HYD CONNECTOR | KOB3/8"PF - M22x1.50 x 37mm Long (No O-Ring supplied) |
| C4. | ZD12P01800 | [4] | O-RING | KOBID 17.8mm x OD 20.2mm |
| C5. | ZD12P01100 | [2] | O-RING | KOBID 10.8mm x OD 13.2mm |
| C6. | ZD12P01400 | [2] | O-RING | KOBID 13.80 ± 0.19 x OD 18mm |
