神钢零件查询(EXTRA) - AND BREAKER ATTACHMENT - K907 II ASN YN0101 & K907LC II ASN YQ0101 (1/88-12/06) (04-004) - INSTAL HYD LINES, ARM, 2.94M (EXTRA) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
171 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|

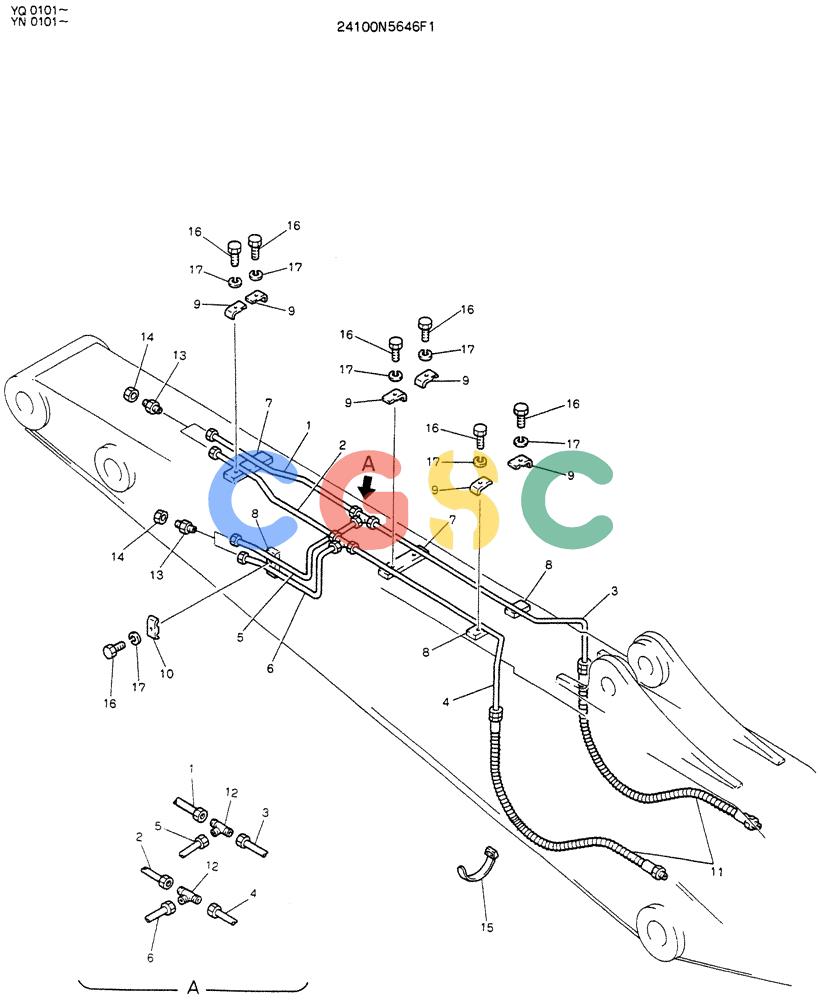

| . . | 24100N5646F1 | [1] | HYD LINES, EXTRA ARM, 2.94M | HYD LINES, EXTRA ARM, 2.94M |
| 1. | 2418T17267 | [1] | TUBE | TUBE |
| 2. | 2418T17266 | [1] | TUBE | TUBE |
| 3. | 2418T12723 | [1] | TUBE | TUBE |
| 4. | 2418T12724 | [1] | TUBE | TUBE |
| 5. | 2418T18866 | [1] | TUBE | TUBE |
| 6. | 2418T18867 | [1] | TUBE | TUBE |
| 7. | 2416T13203D2 | [2] | BLOCK, TAPPED | BLOCK, TAPPED |
| 8. | 2416T9878D5 | [3] | CONNECTING BLOCK | KOB |
| 9. | ZC26X18011 | [6] | CLAMP | KOB Superseded by part number: ZC26M18011 |
| 10. | ZC36X18011 | [1] | CLAMP | KOB |
| 11. | 2444R950D7 | [2] | HOSE | KOB |
| 12. | ZA53B18000 | [2] | TEE | KOB |
| 13. | 2444Z2225 | [4] | HYD CONNECTOR | KOB |
| 14. | 2420T4384 | [4] | PLUG | KOB |
| 15. | 2432Z290 | [10] | CLIP | KOBWire Ties -- 185mm Long Superseded by part number: PY01P01043D3 |
| 16. | ZS13C10045 | [7] | SCREW | KOBM10x1.50x45mm Superseded by part number: ZS18C10045 |
| 17. | ZW22X10000 | [7] | LOCK WASHER | KOBID 10 x OD 18.4 x Th 2.5mm Superseded by part number: ZW26X10000 |
