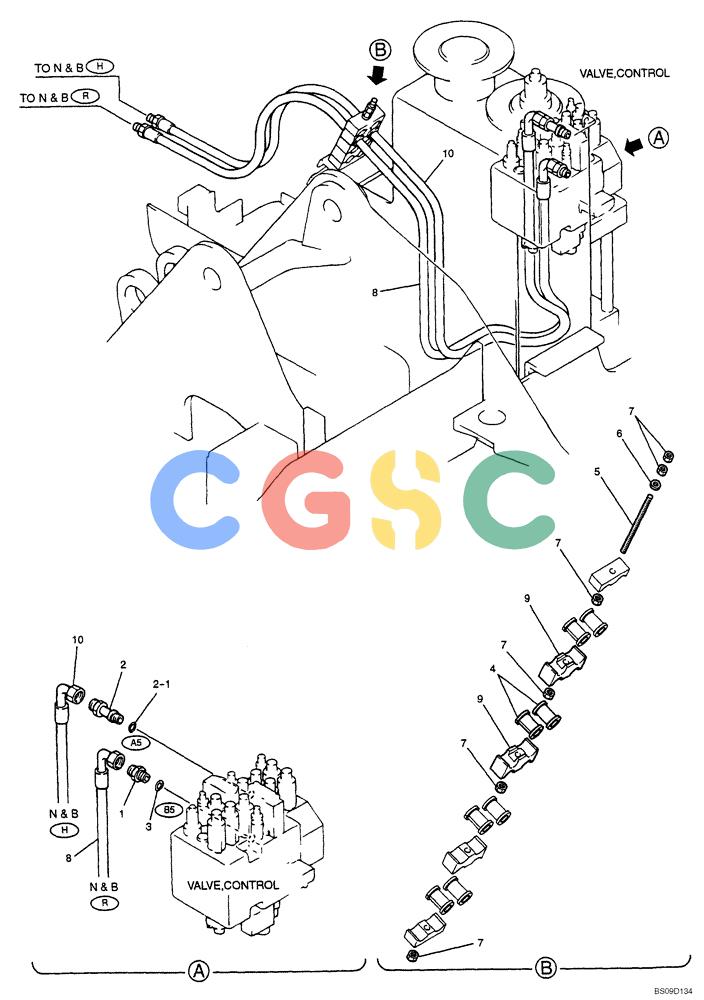

神钢零件查询(NIBBLER) - & BREAKER - SK70SR-1E SHORT RADIUS EXCAVATOR ASN YT02-04001 (4/03-12/04) (06-013[00]) - UPPER HYDRAULIC LINES (NIBBLER & BREAKER) (YT03H00025F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
145 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | ZA23F18008 | [1] | HYD CONNECTOR | KOB1/2" PF - M26x1.50x41mm Long (No O-Ring supplied) |
| 2. | YT03H01053P1 | [1] | CONNECTION | KOB |
| 2-1. | ZD12P01800 | [1] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 3. | ZD12P01800 | [1] | O-RING | KOBID 17.8mm x OD 20.2mm |
| 4. | YT32H01030P1 | [2] | BUSHING | KOB |
| 5. | YT03H01018P1 | [1] | BOLT | KOB |
| 6. | ZW13H12000 | [1] | WASHER | KOB |
| 7. | ZN18C12010 | [6] | NUT | KOBM12x1.75mm |
| 8. | YT03H01039D1 | [1] | HOSE | KOB Superseded by part number: YT03H01082D1 |
| 9. | YT03H01022P1 | [2] | CLAMP | KOB |
| 10. | YT03H01039D4 | [1] | HOSE | KOB Superseded by part number: YT03H01082D4 |
