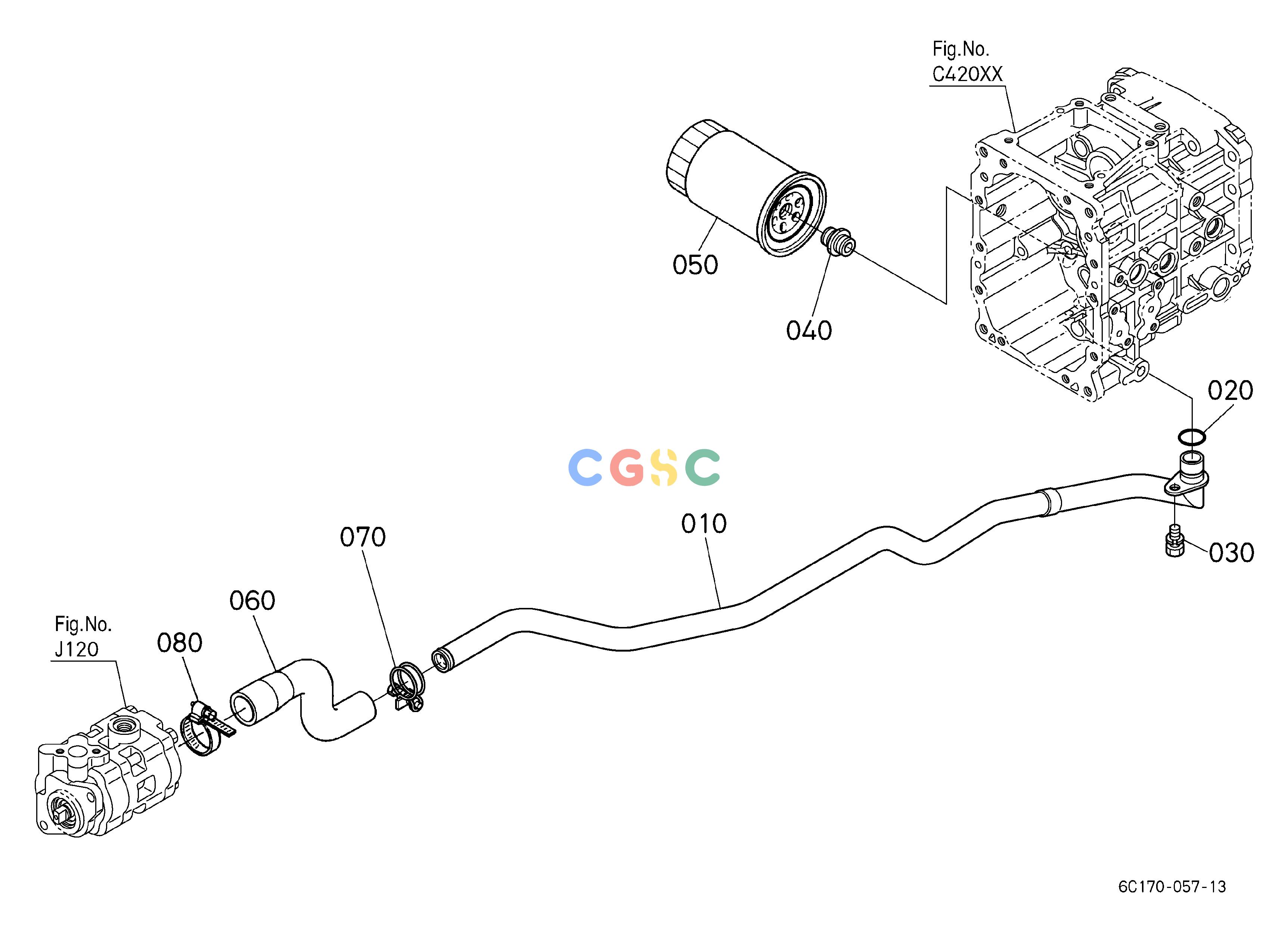

久保田零件查询J20102 HYDRAULIC OIL LINE(SUCTION) ## S.No.>=50101 PUMP/MOTOR SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
711 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C14039110
|
[1] |
PIPE SUCTION
|
1.3640(lbs); 0.620
|
| 010. |
6C14039112
|
[1] |
PIPE SUCTION
|
1.3640(lbs); 0.620
|
| 010. |
6C11039113
|
[1] |
PIPE SUCTION
|
1.3640(lbs); 0.620
|
| 020. |
0481100200
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 020. |
0481600200
|
[1] |
O RING
|
0.0066(lbs); 0.003
|
| 030. |
0112350818
|
[1] |
BOLT
|
0.0264(lbs); 0.012
|
| 040. |
3824037780
|
[1] |
JOINT SCREW
|
0.0660(lbs); 0.030
|
| 050. |
6795537710
|
[1] |
CARTRIDGE OIL FILTER
|
0.8580(lbs); 0.390
|
| 060. |
6C07039150
|
[1] |
HOSE INLET
|
0.2750(lbs); 0.125
|
| 070. |
6798058640
|
[1] |
CLAMP HOSE
|
0.0440(lbs); 0.020
|
| 080. |
6795536230
|
[1] |
CLAMP
|
0.0506(lbs); 0.023
|
