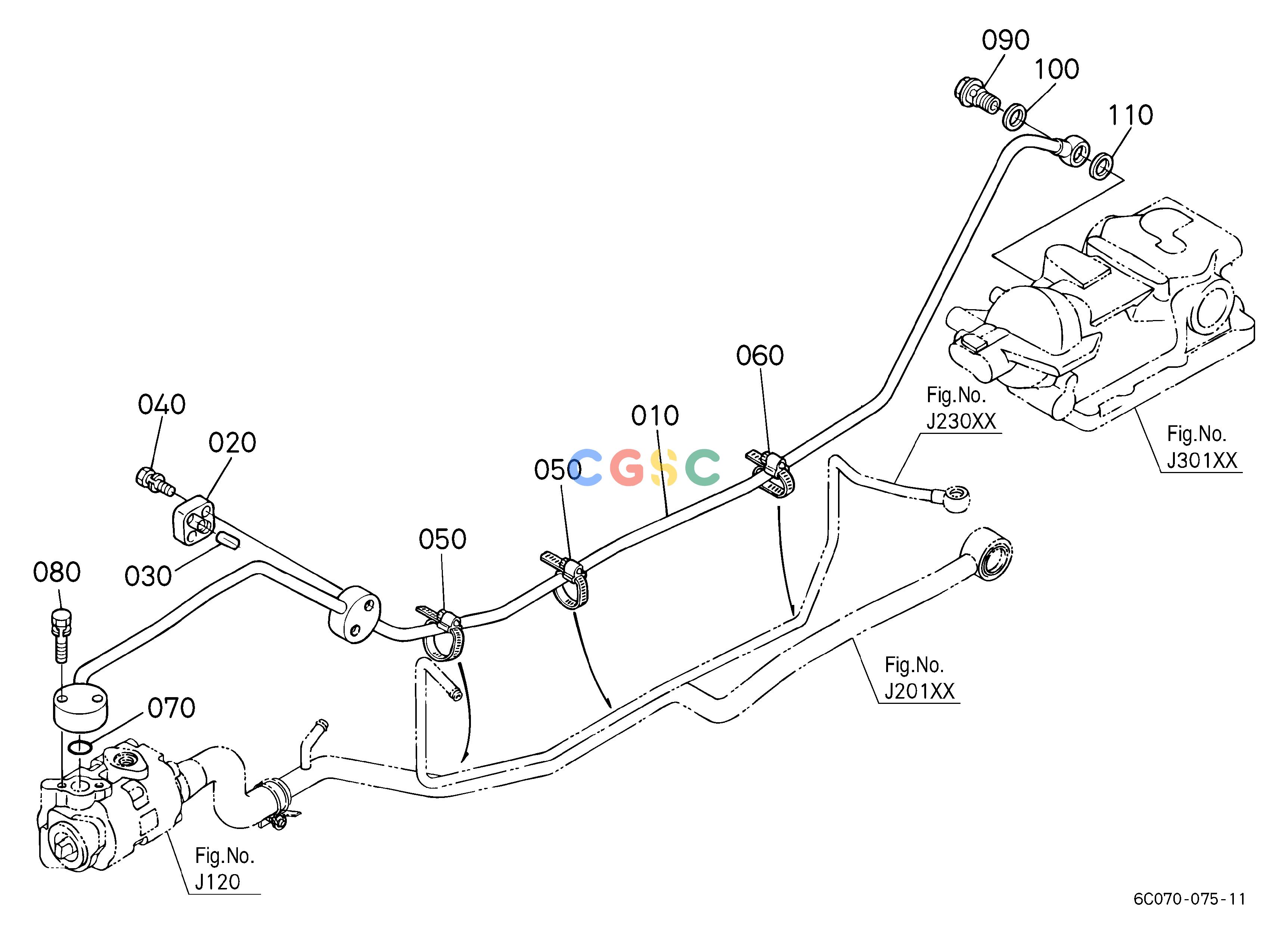

久保田零件查询J21001 HYDRAULIC OIL LINE(DELIVERY) ## S.No.<=15496 S.No.;A:<=15496 PUMP/MOTOR SYSTEMEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
789 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C07039210
|
[1] |
PIPE,DELIVERY
|
2.2000(lbs); 1.000
|
| 020. |
6C04036620
|
[1] |
CAP
|
0.0484(lbs); 0.022
|
| 030. |
3741036630
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 040. |
0112350830
|
[2] |
BOLT,SEMS
|
0.0330(lbs); 0.015
|
| 050. |
6795536230
|
[2] |
CLAMP
|
0.0506(lbs); 0.023
|
| 060. |
6798036250
|
[1] |
CLAMP
|
0.0462(lbs); 0.021
|
| 070. |
0481100200
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 070. |
0481600200
|
[1] |
O RING
|
0.0066(lbs); 0.003
|
| 080. |
0112350840
|
[2] |
BOLT,SEMS
|
0.0396(lbs); 0.018
|
| 090. |
6C07039290
|
[1] |
BOLT,JOINT
|
0.1100(lbs); 0.050
|
| 100. |
6711137180
|
[1] |
GASKET
|
0.0066(lbs); 0.003
|
| 110. |
1410253620
|
[1] |
GASKET
|
0.0066(lbs); 0.003
|
