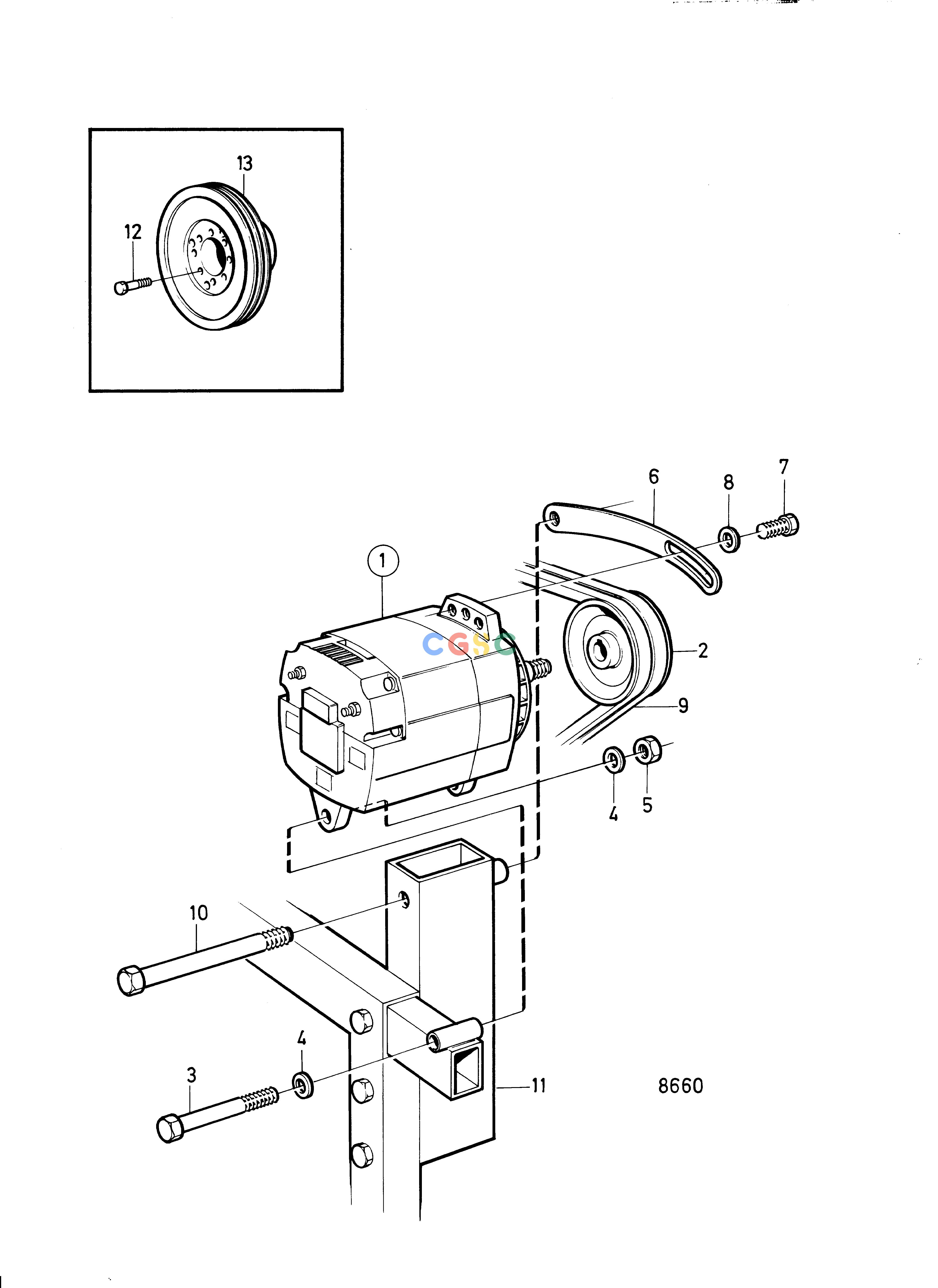

沃尔沃零件查询TAMD61A; TAMD62AElectrical SystemAlternator, Front MountedEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
655 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
849748
|
[1] |
Alternator
|
For 24V electric system., 28V 100A
|
| 1. |
3803499
|
[1] |
Alternator, exch
|
For 24V electric system., 28V 100A
|
| 1. |
|
|
|
|
| 2. |
848171
|
[1] |
Pulley
|
Early type
|
| 2. |
862355
|
[1] |
Pulley
|
SN1101003664/XXXXX-
|
| 3. |
970987
|
[1] |
Hexagon screw
|
|
| 4. |
940280
|
[2] |
Spring washer
|
|
| 5. |
971072
|
[1] |
Hexagon nut
|
|
| 6. |
848492
|
[1] |
Tensioner
|
|
| 7. |
955559
|
[1] |
Hexagon screw
|
|
| 8. |
940280
|
[1] |
Spring washer
|
|
| 9. |
966396
|
[1] |
V-belt
|
L=2x175mm
|
| 10. |
970963
|
[1] |
Hexagon screw
|
|
| 11. |
7746650_174
|
|
Bracket
|
|
| 12. |
465840
|
[8] |
Flange screw
|
|
| 13. |
848378
|
[1] |
Pulley
|
|
