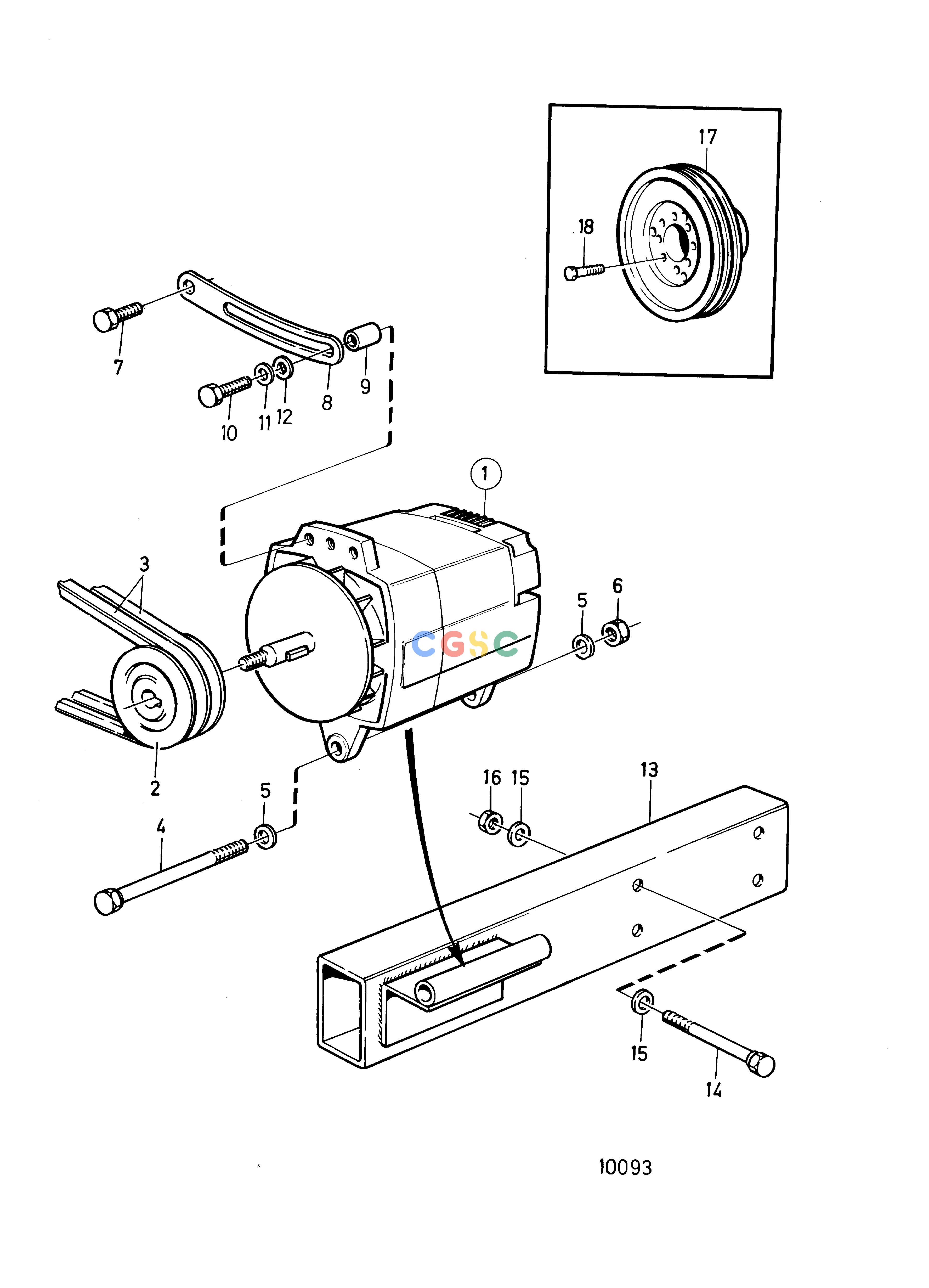

沃尔沃零件查询TAMD61A; TAMD62AElectrical SystemAlternator, Side MountedEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
822 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
849747
|
[1] |
Alternator
|
For 12V electric system., 14V 130A
|
| 1. |
3803577
|
[1] |
Alternator
|
For 12V electric system., 14V 130A
|
| 1. |
|
|
|
|
| 1. |
849748
|
[1] |
Alternator
|
For 24V electric system., 28V 100A
|
| 1. |
3803499
|
[1] |
Alternator, exch
|
For 24V electric system., 28V 100A
|
| 2. |
862355
|
[1] |
Pulley
|
|
| 3. |
966391
|
[1] |
V-belt
|
|
| 4. |
970987
|
[1] |
Hexagon screw
|
|
| 5. |
940280
|
[2] |
Spring washer
|
|
| 6. |
971072
|
[1] |
Hexagon nut
|
|
| 7. |
946173
|
[1] |
Flange screw
|
|
| 8. |
848492
|
[1] |
Tensioner
|
|
| 9. |
823196
|
[1] |
Spacer sleeve
|
Later prod
|
| 10. |
955559
|
[1] |
Hexagon screw
|
Earlier prod,L=22mm
|
| 10. |
955561
|
[1] |
Hexagon screw
|
Later prod,L=32mm
|
| 11. |
940280
|
[1] |
Spring washer
|
|
| 12. |
955898
|
[1] |
Washer
|
|
| 13. |
848817
|
[1] |
Bracket
|
|
| 14. |
970956
|
[4] |
Hexagon screw
|
|
| 15. |
960143
|
[8] |
Washer
|
|
| 16. |
971071
|
[4] |
Hexagon nut
|
|
| 17. |
848378
|
[1] |
Pulley
|
|
| 18. |
465840
|
[8] |
Flange screw
|
|
