神钢零件查询(NIBBLER) - & BREAKER - SK70SR-1E SHORT RADIUS EXCAVATOR ASN YT02-04001 (4/03-12/04) (06-043[00]) - BLOCK CONTROL LINES (KAI) (WITH HYD OIL TEMP SWITCH) (EXTRA), (YT64H00042F2) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
215 次

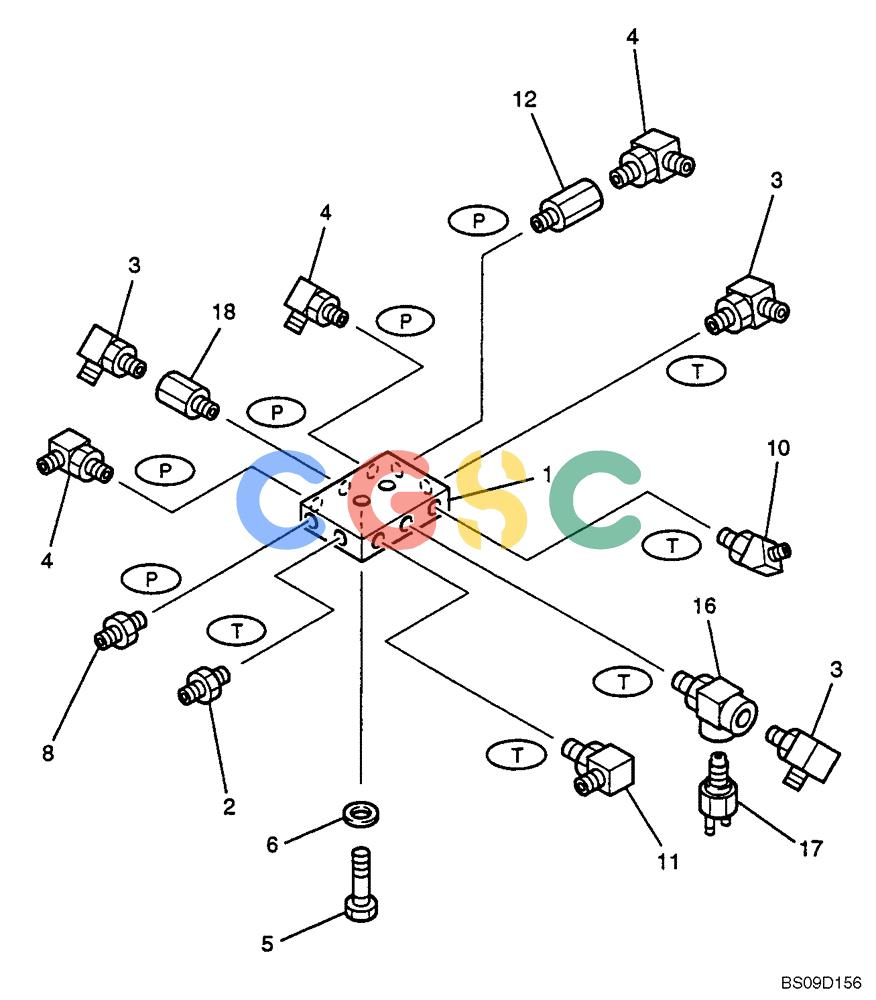

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 2416N6141 | [1] | BLOCK | KOB |
| 2. | ZH22X06000 | [1] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P01400) |
| 3. | ZH32X06000 | [3] | 90 ELBOW,Male, 30 Degree Fl, PF 3/8" x PF 3/8", O-Ring | KOBElbow, 90° -- (Incls. O-Ring 237-6006) |
| 4. | ZH32X04000 | [3] | 90 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 1/4", O-Ring | KOBElbow, 90° -- (PF 1/4)(Incls. O-Ring 237-6004) |
| 5. | ZS18C08040 | [2] | SCREW,Hex, M8 x 40mm | KOBM08x1.25x40mm |
| 6. | ZW16H08000 | [2] | WASHER | KOBID 08 x OD 18 x Th 3.2mm |
| 8. | ZH22X04000 | [1] | HYD CONNECTOR,1/4" NPT x 1/4" NPT | KOB1/4"PFx36mm Long (Incls. O-Ring ZD12P01100) |
| 10. | ZH42X06000 | [1] | 45 ELBOW,Male, 30 Degree Fl, PF 3/8" x PF 3/8", O-Ring | KOB45° -- (Incls. O-Ring 237-6006) |
| 11. | ZH32X04006 | [1] | 90 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 3/8", O-Ring | KOB90° -- (Incls. O-Ring 237-6006) |
| 12. | 2444Z2525 | [1] | HYD CONNECTOR | KOB1/4"PFx35mm Long (Incls. O-Ring ZD12P01100) Superseded by part number: 72217408 |
| 16. | YT64H01046P1 | [1] | TEE | KOB |
| 17. | 2479R2348 | [1] | SWITCH,95 Degrees C, 203 Degrees F | KOBHydraulic Oil Temperature (PT 3/8) |
| 18. | 2444Z2891 | [1] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P01400) |
