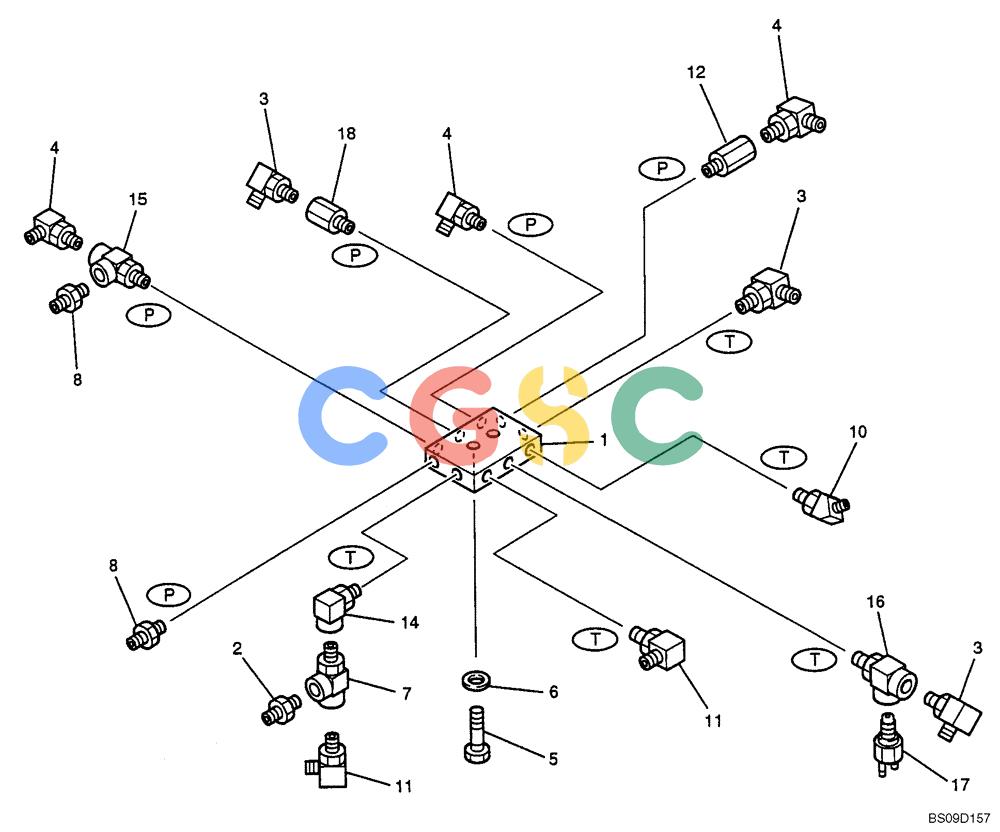

| 1. | 2416N6141 | [1] | BLOCK | KOB |
| 2. | ZH22X06000 | [1] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P01400) |
| 3. | ZH32X06000 | [3] | 90 ELBOW,Male, 30 Degree Fl, PF 3/8" x PF 3/8", O-Ring | KOBElbow, 90° -- (Incls. O-Ring 237-6006) |
| 4. | ZH32X04000 | [3] | 90 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 1/4", O-Ring | KOBElbow, 90° -- (PF 1/4)(Incls. O-Ring 237-6004) |
| 5. | ZS18C08040 | [2] | SCREW,Hex, M8 x 40mm | KOBM08x1.25x40mm |
| 6. | ZW16H08000 | [2] | WASHER | KOBID 08 x OD 18 x Th 3.2mm |
| 7. | HH55Q06006G1 | [1] | TEE | KOB3/8" PF (Incls. O-Ring ZD12P01400) |
| 8. | ZH22X04000 | [2] | HYD CONNECTOR,1/4" NPT x 1/4" NPT | KOB1/4"PFx36mm Long (Incls. O-Ring ZD12P01100) |
| 10. | ZH42X06000 | [1] | 45 ELBOW,Male, 30 Degree Fl, PF 3/8" x PF 3/8", O-Ring | KOB(Incls. O-Ring 237-6006) |
| 11. | ZH32X04006 | [2] | 90 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 3/8", O-Ring | KOBElbow, 90° -- (Incls. O-Ring 237-6006) |
| 12. | 2444Z2525 | [1] | HYD CONNECTOR | KOB1/4"PFx35mm Long (Incls. O-Ring ZD12P01100) Superseded by part number: 72217408 |
| 14. | 2444Z3155 | [1] | 90 ELBOW,PF 3/8" Fem x PF 3/8" Male | KOB90° -- (PF 3/8) (Incls. O-Ring ZD12P01400) Alternate O-Ring 237-6006 Superseded by part number: YT42H01128P1 |
| 15. | HH55Q04004G1 | [1] | TEE,1/4" ORB x 1/4" JIC x 1/4" JIC | KOB1/4" PF (Incls. O-Ring ZD12P01100) |
| 16. | YT64H01046P1 | [1] | TEE | KOB |
| 17. | 2479R2348 | [1] | SWITCH,95 Degrees C, 203 Degrees F | KOBHydraulic Oil Temperature (PT 3/8) |
| 18. | 2444Z2891 | [1] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P01400) |
