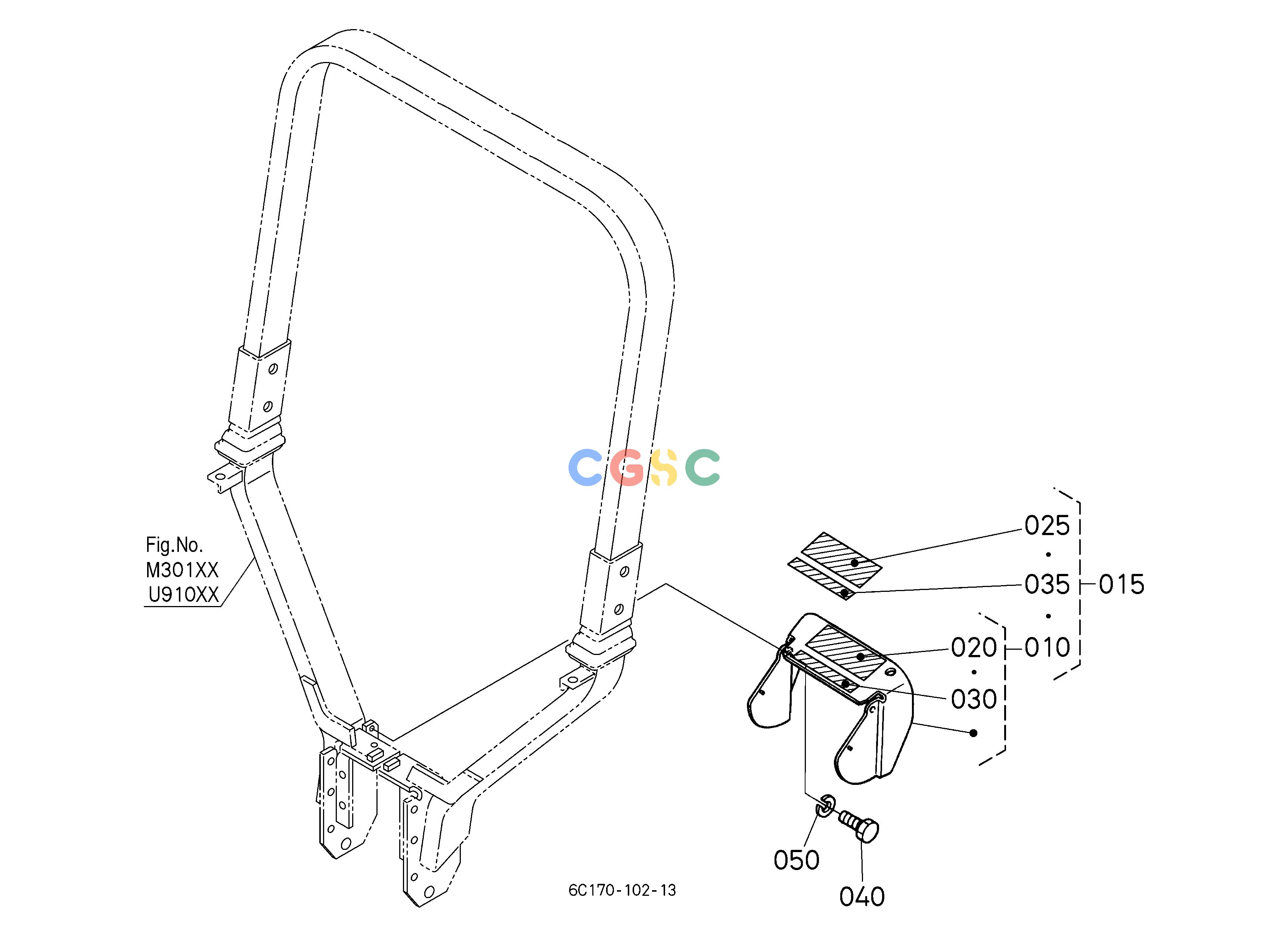

久保田零件查询L12501 PTO PROTECTOR [EXCEPT [AU] [NZ]] TOP LINK/TOP LINK BRACKET/PTO PROTECTOREPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
174 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C04072100
|
[1] |
KIT COVER PTO (A)
|
3.0800(lbs); 1.400
|
| 010. |
6C14072100
|
[1] |
KIT COVER PTO (A)
|
2.9920(lbs); 1.360
|
| 015. |
6C04072000
|
[1] |
KIT COVER PTO (B)
|
0.0000(lbs); 0.000
|
| 015. |
6C14072000
|
[1] |
KIT COVER PTO (B)
|
3.0360(lbs); 1.380
|
| 020. |
TA04049590
|
[1] |
LABEL PTO WARNING
|
0.0044(lbs); 0.002
|
| 020. |
TA04049593
|
[1] |
LABEL PTO WARNING
|
0.0022(lbs); 0.001
|
| 025. |
TA04149590
|
[1] |
LABEL PTO WARNING
|
0.0110(lbs); 0.005
|
| 030. |
6C14047440
|
[1] |
LABEL DRAWBAR
|
0.0022(lbs); 0.001
|
| 035. |
6C14147440
|
[1] |
LABEL DRAWBAR
|
0.0022(lbs); 0.001
|
| 040. |
0115350820
|
[2] |
BOLT
|
0.0264(lbs); 0.012
|
| 050. |
0451260080
|
[2] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
