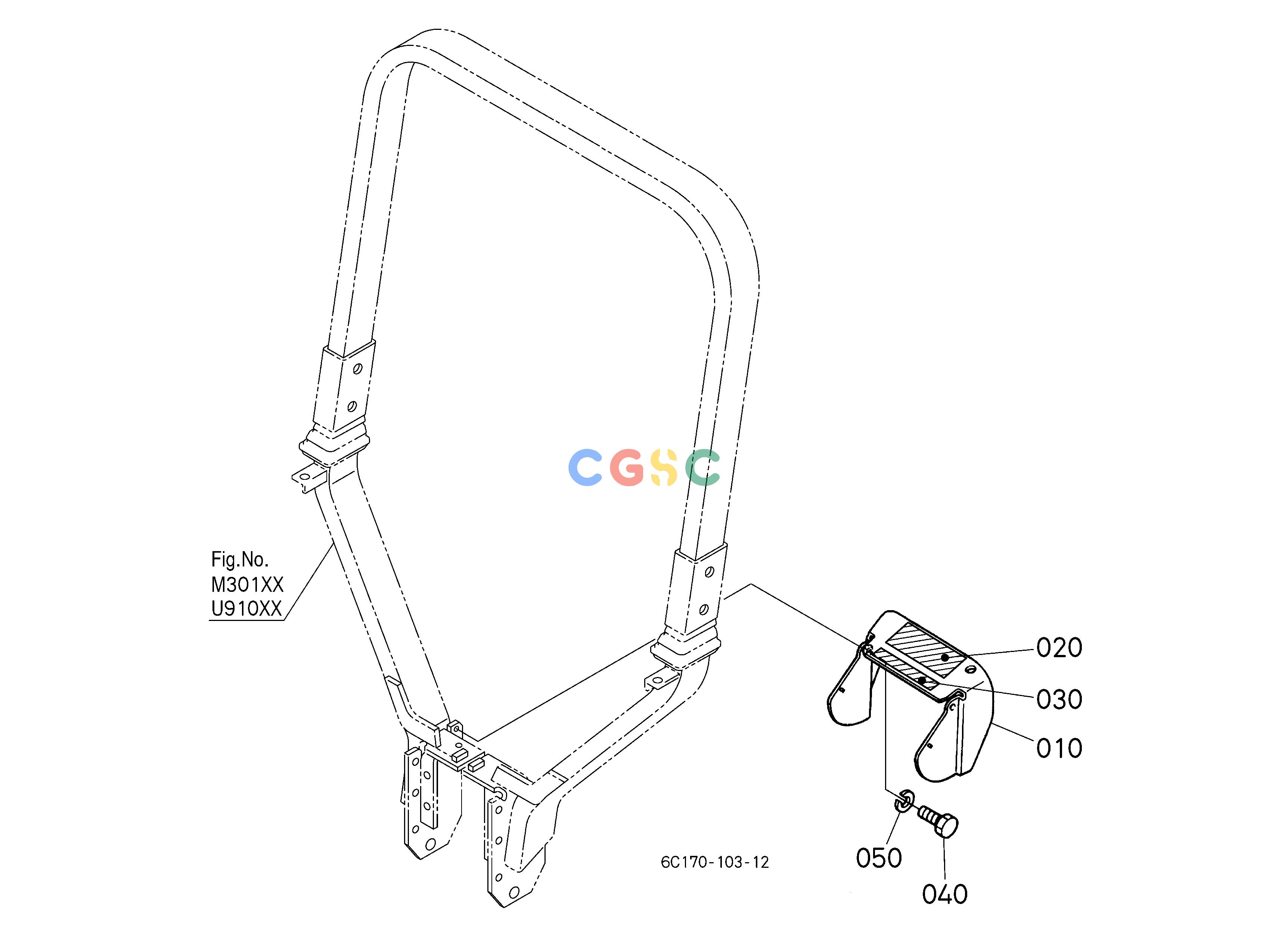

久保田零件查询L12502 PTO PROTECTOR [AU] [NZ] TOP LINK/TOP LINK BRACKET/PTO PROTECTOREPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
192 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C04072150
|
[1] |
COVER PTO
|
2.9700(lbs); 1.350
|
| 010. |
6C14072150
|
[1] |
COVER PTO
|
2.8600(lbs); 1.300
|
| 020. |
TA04049590
|
[1] |
LABEL PTO WARNING
|
0.0044(lbs); 0.002
|
| 020. |
TA04049593
|
[1] |
LABEL PTO WARNING
|
0.0022(lbs); 0.001
|
| 030. |
6C14047440
|
[1] |
LABEL DRAWBAR
|
0.0022(lbs); 0.001
|
| 040. |
0115350820
|
[2] |
BOLT
|
0.0264(lbs); 0.012
|
| 050. |
0451260080
|
[2] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
