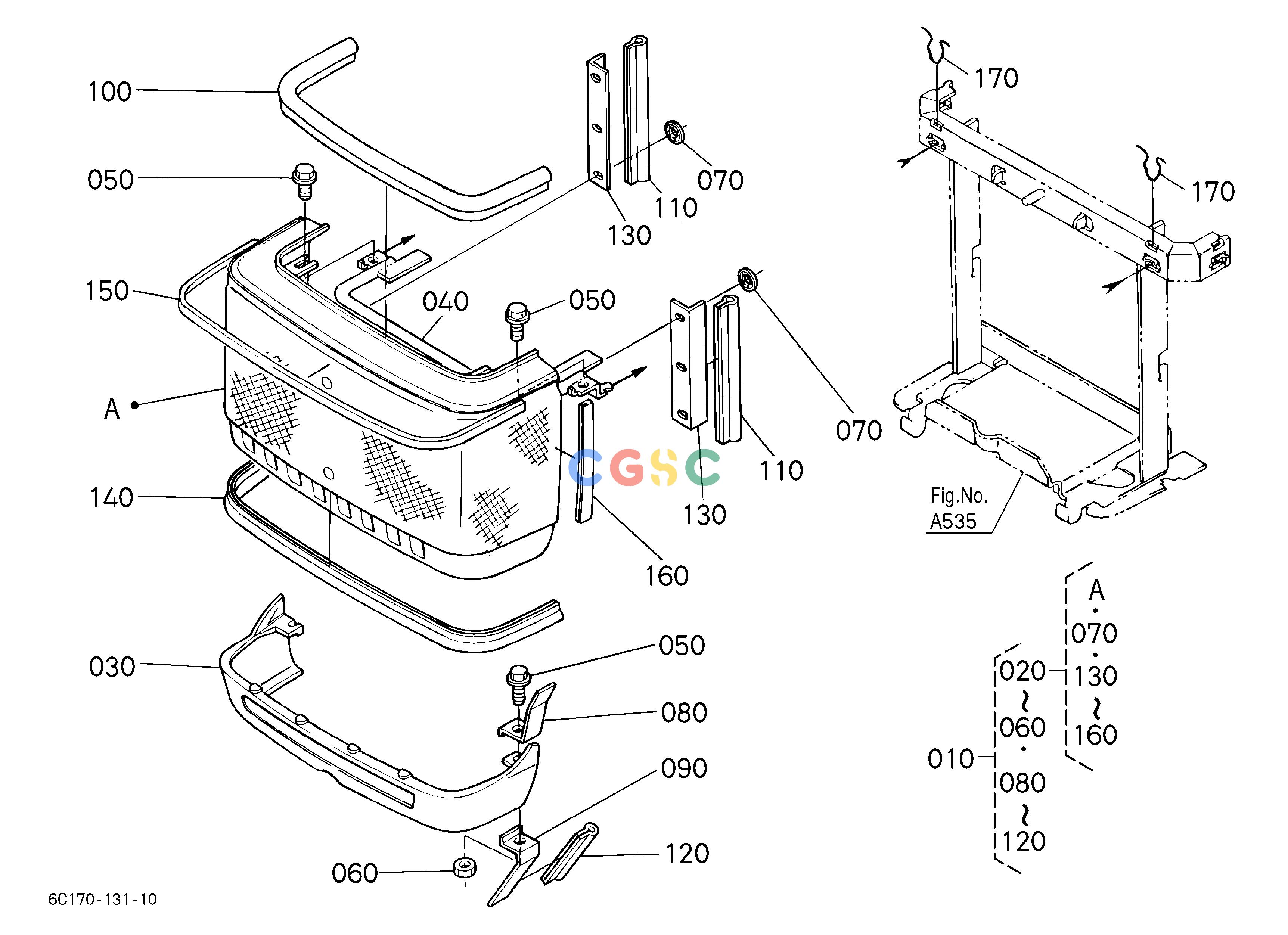

久保田零件查询M10102 FRONT GRILLE [AU] [NZ] HOOD/BONNETEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
647 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C07554400
|
[1] |
COMP.COVER FRONT
|
2.2000(lbs); 1.000
|
| 020. |
6C07554600
|
[1] |
COMP.NET FRONT
|
4.1800(lbs); 1.900
|
| 030. |
6C04054423
|
[1] |
COVER FRONT
|
0.3498(lbs); 0.159
|
| 040. |
6C04054533
|
[1] |
COMP.PLATE
|
0.8360(lbs); 0.380
|
| 050. |
0175450820
|
[4] |
BOLT FLANGE
|
0.0330(lbs); 0.015
|
| 060. |
0205450080
|
[2] |
NUT
|
0.0110(lbs); 0.005
|
| 070. |
6C04054540
|
[6] |
NUT
|
0.0022(lbs); 0.001
|
| 080. |
6C04054910
|
[2] |
STAY
|
0.0264(lbs); 0.012
|
| 090. |
6C04054920
|
[2] |
STAY
|
0.0308(lbs); 0.014
|
| 100. |
6C04054140
|
[1] |
TRIM
|
0.1606(lbs); 0.073
|
| 110. |
6798051510
|
[2] |
TRIM
|
0.0550(lbs); 0.025
|
| 120. |
7661153160
|
[2] |
TRIM SHUTTER PLATE
|
0.0440(lbs); 0.020
|
| 130. |
6C04554620
|
[2] |
STAY
|
0.0440(lbs); 0.020
|
| 140. |
6C04554630
|
[1] |
TRIM
|
0.2354(lbs); 0.107
|
| 140. |
H6C0054630
|
[1] |
TRIM
|
0.2354(lbs); 0.107
|
| 150. |
6C04554640
|
[1] |
CUSHION
|
0.0660(lbs); 0.030
|
| 150. |
H6C0054640
|
[1] |
CUSHION
|
0.0660(lbs); 0.030
|
| 160. |
6C04554650
|
[2] |
CUSHION
|
0.0198(lbs); 0.009
|
| 160. |
H6C0054650
|
[2] |
CUSHION
|
0.0198(lbs); 0.009
|
| 170. |
6C04054364
|
[2] |
SPRING
|
0.0088(lbs); 0.004
|
