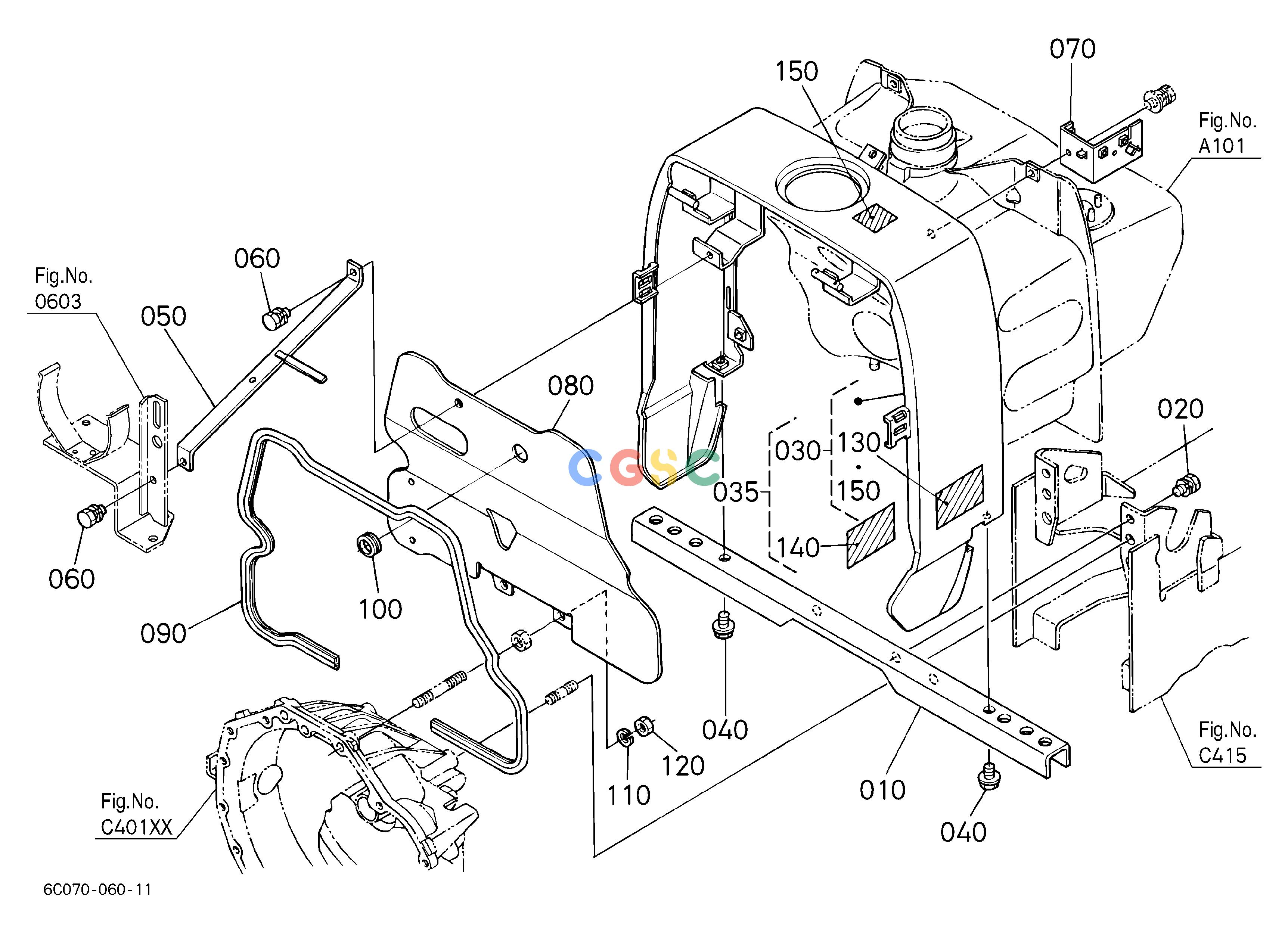

久保田零件查询M13001 SHUTTER PLATE [EXCEPT [AU] [NZ]] HOOD/BONNETEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
292 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C04054213
|
[1] |
PILLAR CENTER
|
3.0800(lbs); 1.400
|
| 020. |
0113351022
|
[2] |
BOLT
|
0.0550(lbs); 0.025
|
| 030. |
6C07099250
|
[1] |
KIT A PILLAR CENTER
|
14.3000(lbs); 6.500
|
| 030. |
6C07099252
|
[1] |
KIT A PILLAR CENTER
|
14.3000(lbs); 6.500
|
| 030. |
6C07099253
|
[1] |
KIT A PILLAR CENTER
|
14.3000(lbs); 6.500
|
| 035. |
6C07099200
|
[1] |
KIT B PILLAR CENTER
|
14.3000(lbs); 6.500
|
| 035. |
6C07099202
|
[1] |
KIT B PILLAR CENTER
|
14.3000(lbs); 6.500
|
| 035. |
6C07099203
|
[1] |
KIT B PILLAR CENTER
|
14.3000(lbs); 6.500
|
| 040. |
6C04054610
|
[2] |
BOLT
|
0.0308(lbs); 0.014
|
| 050. |
6C07054230
|
[1] |
STAY PILLAR
|
0.5060(lbs); 0.230
|
| 060. |
0102350616
|
[2] |
BOLT
|
0.0132(lbs); 0.006
|
| 070. |
6A32054280
|
[1] |
BRACKET
|
0.2200(lbs); 0.100
|
| 070. |
6A37054280
|
[1] |
BRACKET
|
0.2420(lbs); 0.110
|
| 080. |
6C07054550
|
[1] |
PLATE SHUTTER
|
2.5520(lbs); 1.160
|
| 090. |
6C04054560
|
[1] |
TRIM
|
0.4400(lbs); 0.200
|
| 100. |
5472138340
|
[1] |
GROMMET
|
0.0066(lbs); 0.003
|
| 110. |
0451260100
|
[2] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 120. |
0211650100
|
[2] |
NUT
|
0.0088(lbs); 0.004
|
| 130. |
6C09049650
|
[1] |
LABEL START CAUTION
|
0.0110(lbs); 0.005
|
| 140. |
6C09149650
|
[1] |
LABEL START CAUTION
|
0.0044(lbs); 0.002
|
| 150. |
6C04047412
|
[1] |
LABEL FILLER CAUTION
|
0.0022(lbs); 0.001
|
