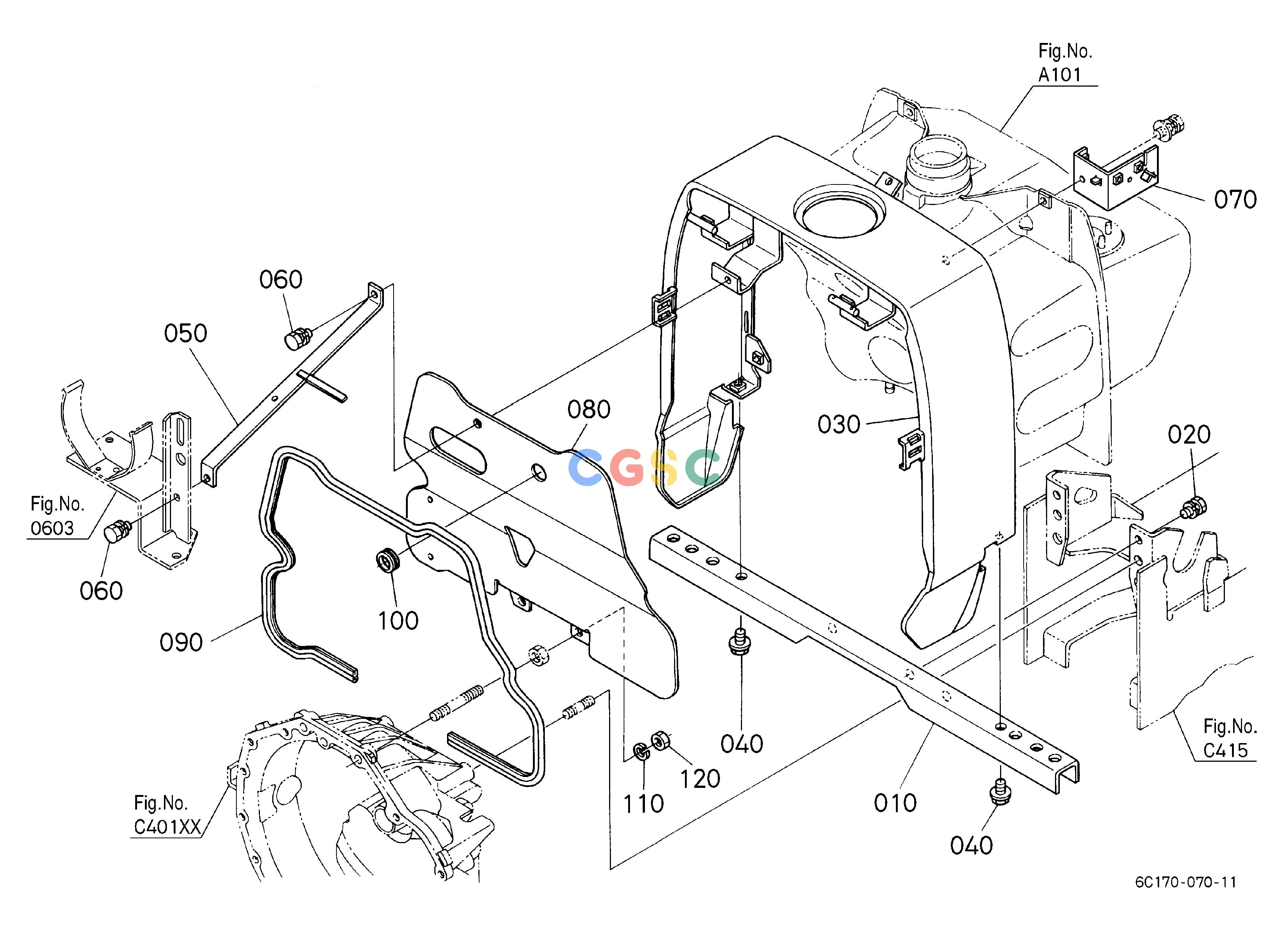

久保田零件查询M13002 SHUTTER PLATE [AU] [NZ] HOOD/BONNETEPC Kubota online
广数供应链运营团队, 15 02月, 2025，浏览：
485 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
6C04054213
|
[1] |
PILLAR CENTER
|
3.0800(lbs); 1.400
|
| 020. |
0113351022
|
[2] |
BOLT
|
0.0550(lbs); 0.025
|
| 030. |
6C07054220
|
[1] |
PILLAR CENTER
|
7.7000(lbs); 3.500
|
| 030. |
6C07054223
|
[1] |
PILLAR CENTER
|
7.7000(lbs); 3.500
|
| 030. |
6C07054224
|
[1] |
PILLAR CENTER
|
7.7000(lbs); 3.500
|
| 040. |
6C04054610
|
[2] |
BOLT
|
0.0308(lbs); 0.014
|
| 050. |
6C07054230
|
[1] |
STAY PILLAR
|
0.5060(lbs); 0.230
|
| 060. |
0102350616
|
[2] |
BOLT
|
0.0132(lbs); 0.006
|
| 070. |
6A32054280
|
[1] |
BRACKET
|
0.2200(lbs); 0.100
|
| 070. |
6A37054280
|
[1] |
BRACKET
|
0.2420(lbs); 0.110
|
| 080. |
6C07054550
|
[1] |
PLATE SHUTTER
|
2.5520(lbs); 1.160
|
| 090. |
6C04054560
|
[1] |
TRIM
|
0.4400(lbs); 0.200
|
| 100. |
5472138340
|
[1] |
GROMMET
|
0.0066(lbs); 0.003
|
| 110. |
0451250100
|
[2] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 120. |
0211650100
|
[2] |
NUT
|
0.0088(lbs); 0.004
|
