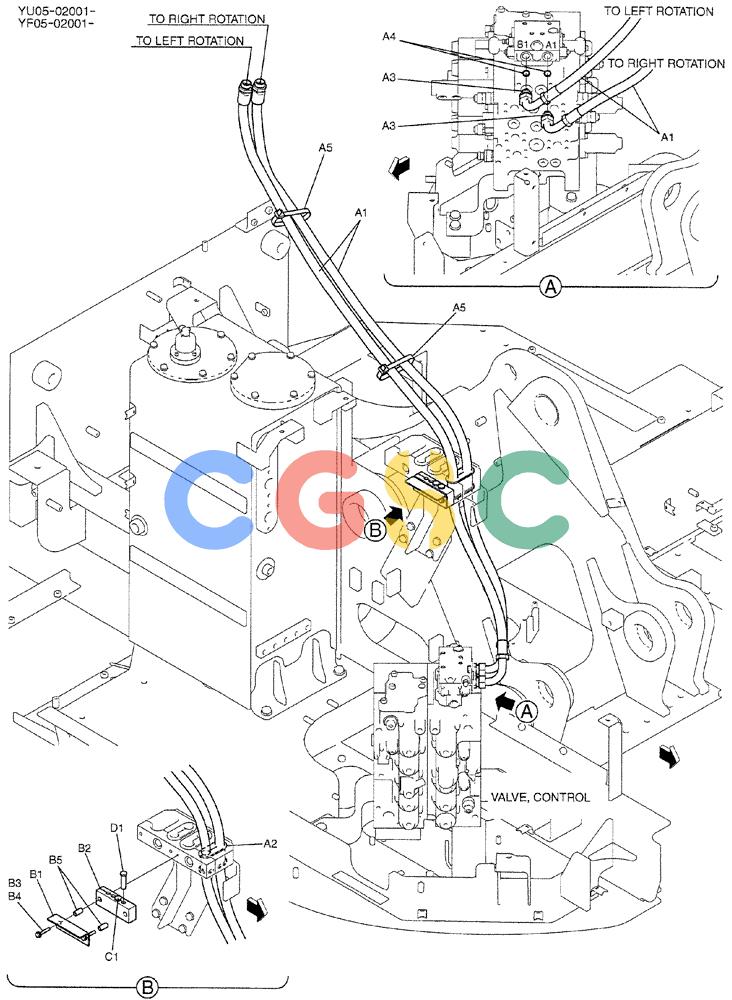

纽荷兰零件查询(E235BSRNLC) - CRAWLER EXCAVATOR ASN YU05-02001 (08-003) - HYD LINES, UPP (EXTRA, NIBBLER & BREAKER) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
380 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YF03H00028F1 | [1] | HYD LINES,UPP | |
| . . | YF03H00037F1 | [1] | HYD LINES, UPP, SEE FIG. 01-020-01 TO 01-020-04 | |
| . . | YF03H00038F1 | [1] | HYD LINES, UPP, SEE FIG. 05-003 | |
| . . | YF03H00039F1 | [1] | HYD LINES, UPP, SEE FIG. 01-020-01 TO 01-020-04 | |
| . . | YF03H00022F1 | [1] | HYD LINES, UPP, SEE FIG. 01-020-01 TO 01-020-04 | |
| . . | YF03H00059F1 | [1] | HYD LINES, UPP, SEE FIG. 01-020-01 TO 01-020-04 | |
| . . | YF03H00044F1 | [1] | HYD LINES,UPP | |
| A1. | YF03H01129D3 | [2] | HOSE | KOBHOSE |
| A2. | YF03H01257P1 | [1] | RUBBER SEAL | KOBBUSHING |
| A3. | ZA28F22008 | [2] | WIRE CONNECTOR | KOBCONNECTOR |
| A4. | ZD12P01800 | [2] | O-RING | KOB |
| A5. | YX03H01046P1 | [2] | CLIP | KOB |
| . . | YF03H00042F1 | [1] | HYD LINES, UPP | |
| B1. | YF03H01217P1 | [1] | PLATE | KOBPLATE |
| B2. | YF03H01258P1 | [1] | RUBBER BAND | KOBRUBBER |
| B3. | ZS18C08045 | [2] | SCREW,Hex, M8 x 45mm | KOBCAP |
| B4. | ZW16H08000 | [2] | WASHER | KOBID 08 x OD 18 x Th 3.2mm |
| B5. | ZY26X04028 | [2] | SPACER | KOBSPACER |
| . . | YF03H00045F1 | [1] | HYD LINES,UPP | |
| C1. | YF03H01221P1 | [1] | CAP | KOBCAP |
| . . | YF03H00041F1 | [1] | HYD LINES, UPP | |
