纽荷兰零件查询(E235BSRNLC) - CRAWLER EXCAVATOR ASN YU05-02001 (08-004) - CONTROLS, OPERATORS New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
641 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YB03M00033F1 | [1] | CONTROLS, OPERATORS | |
| . . | YB03M00031F1 | [1] | CONTROLS, OPERATORS, SEE FIG. 01-024-01 & 01-024-02 | |
| . . | YB03M00036F1 | [1] | CONTROL BOX ASSY, SEE FIG. 01-025 | |
| . . | YN03M01968F1 | [1] | GRIP | KOBGRIP ASSY, SEE FIG. 01-026 Superseded by part number: ZN18C14011, YN03M01503P1, YN03M01971F1, YN03M01328P2, YN03M01505P1 |
| . . | YN50E00029F1 | [1] | SWITCH INSTAL, SEE FIG. 01-027 | |
| . . | YN50M00015F1 | [1] | LEVER | KOBLEVER ASSY, PROPEL, SEE FIG. 01-029 |
| . . | YN54E00008F1 | [1] | RADIO INSTAL, SEE FIG. 01-027 | |
| . . | YN12P01163F1 | [1] | CLAMP | KOBCLAMP ASSY, SEE FIG. 01-028 |
| . . | YN25M01183F1 | [1] | ARMREST | KOBARM REST, SEE FIG. 01-028 |

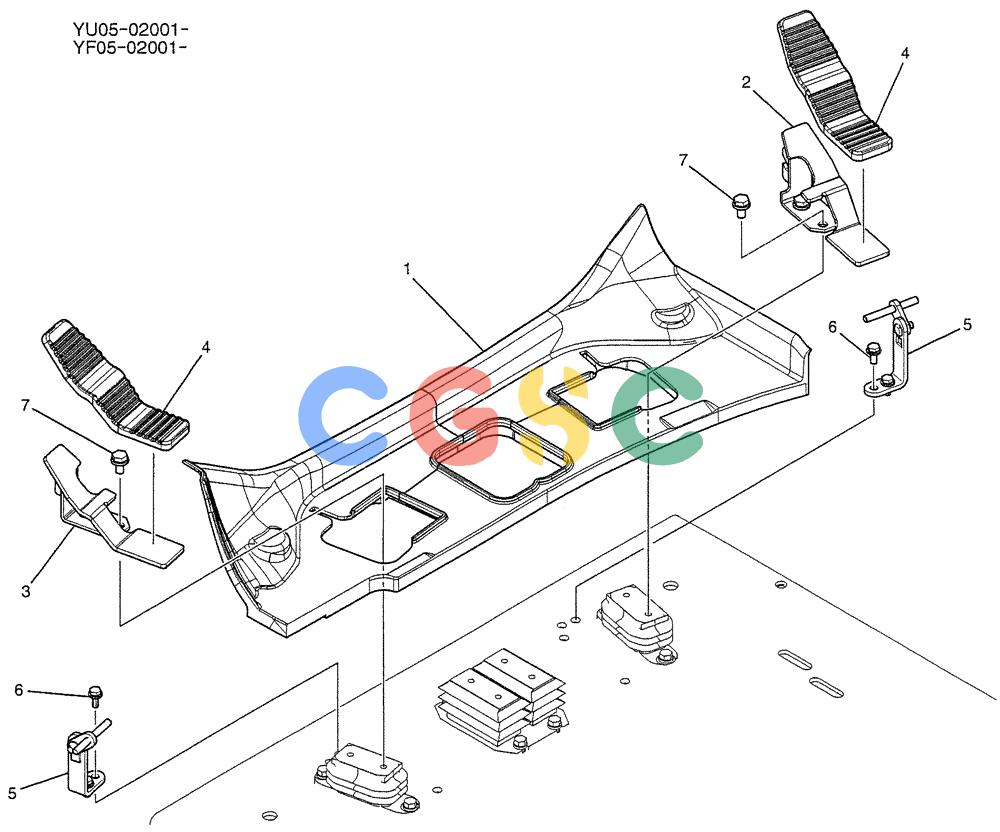

| . . | YN55M00005F1 | [1] | PEDAL ASSY | |
| 1. | YN26M00067P1 | [1] | FOOT BOARD | SMMAT, FLOOR |
| 2. | YN03M01852P1 | [1] | PEDAL | SM(R.H) |
| 3. | YN03M01853P1 | [1] | PEDAL | SM(L.H) |
| 4. | YN03M01858P1 | [2] | RUBBER PEDAL PAD | SM |
| 5. | YN03M01684P1 | [2] | BRACKET | SMASSY |
| 6. | ZM73C08020 | [4] | BOLT,M8x20mm - Course Thread | KOBM08x1.25x20mm (Incls. Washer) |
| 7. | ZM73C10020 | [4] | BOLT,M10x20mm - Course Thread | KOBM10x1.50x20mm (Incls. Washer) |
