神钢零件查询(NIBBLER) - & BREAKER - SK70SR-1E SHORT RADIUS EXCAVATOR ASN YT02-04001 (4/03-12/04) (06-067[00]) - REMOTE CONTROL LINES (OFF-STANDARD) (SWITCH SINGLE / CONFLUX), (YT68H00043F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
719 次

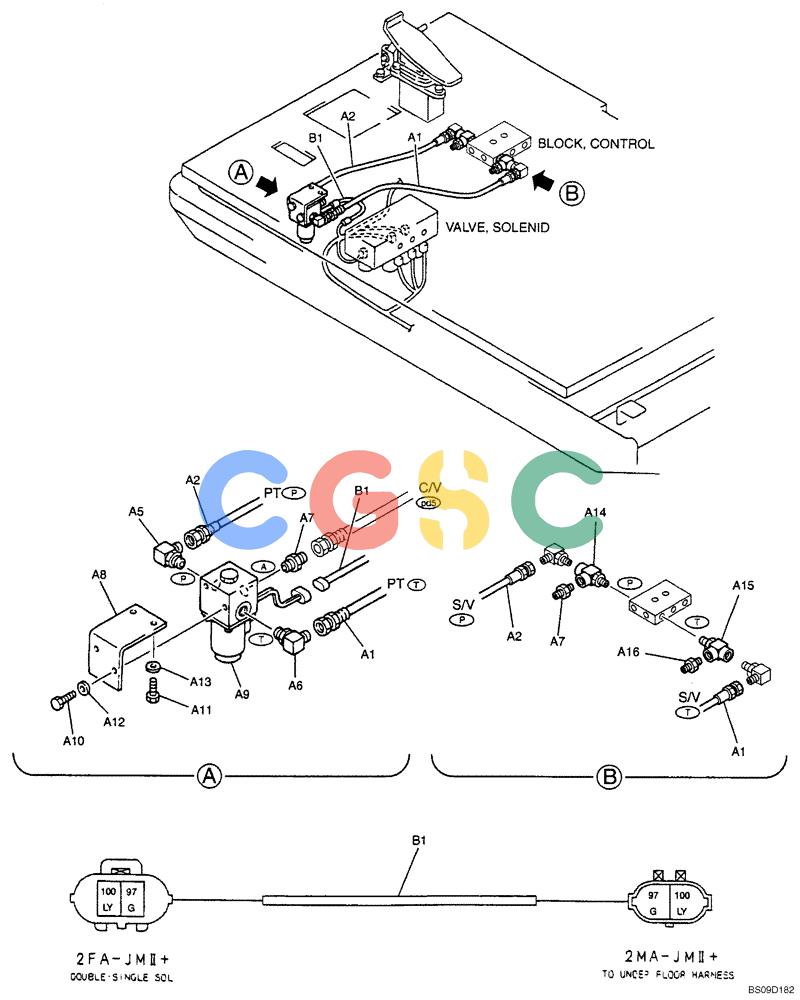

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| A1. | 2444R1120D055 | [1] | HOSE | KOB550mm Long (21-21/32 in) |
| A2. | 2420R349D052 | [1] | FLEXIBLE HOSE | SM520mm Long (20-15/32 in) Superseded by part number: 2420R349D055 |
| A5. | HH35X04004G3 | [1] | 90 ELBOW | KOB90° -- 1/4"PF (Incls. O-Ring ZD12P01100) |
| A6. | ZH32X04000 | [1] | 90 ELBOW,Male, 30 Degree Fl, PF 1/4" x PF 1/4", O-Ring | KOBElbow, 90° -- (PF 1/4)(Incls. O-Ring 237-6004) |
| A7. | ZH22X04000 | [2] | HYD CONNECTOR,1/4" NPT x 1/4" NPT | KOB1/4"PFx36mm Long (Incls. O-Ring ZD12P01100) |
| A8. | YT64H01016P1 | [1] | BRACKET | KOB |
| A9. | YN35V00010F2 | [1] | VALVE | KOBSolenoid Assembly, See Full Model Parts Catalog |
| A10. | ZS18C06016 | [2] | SCREW,Hex, M6 x 16mm | KOBM06x1.0x16mm |
| A11. | ZS18C08016 | [2] | SCREW,Hex, M8 x 16mm | KOBM08x1.25x16mm |
| A12. | ZW16H06000 | [2] | WASHER | KOBID 06 x OD 15 x Th 3.2mm |
| A13. | ZW16H08000 | [2] | WASHER | KOBID 08 x OD 18 x Th 3.2mm |
| A14. | HH55Q04004G1 | [1] | TEE,1/4" ORB x 1/4" JIC x 1/4" JIC | KOB1/4" PF (Incls. O-Ring ZD12P01100) |
| A15. | HH55Q06006G1 | [1] | TEE | KOB3/8" PF (Incls. O-Ring ZD12P01400) |
| A16. | ZH22X04006 | [1] | HYD CONNECTOR | KOB(Incls. O-Ring 237-6006) |
| B1. | YT13E01092D1 | [1] | HARNESS | KOB |
