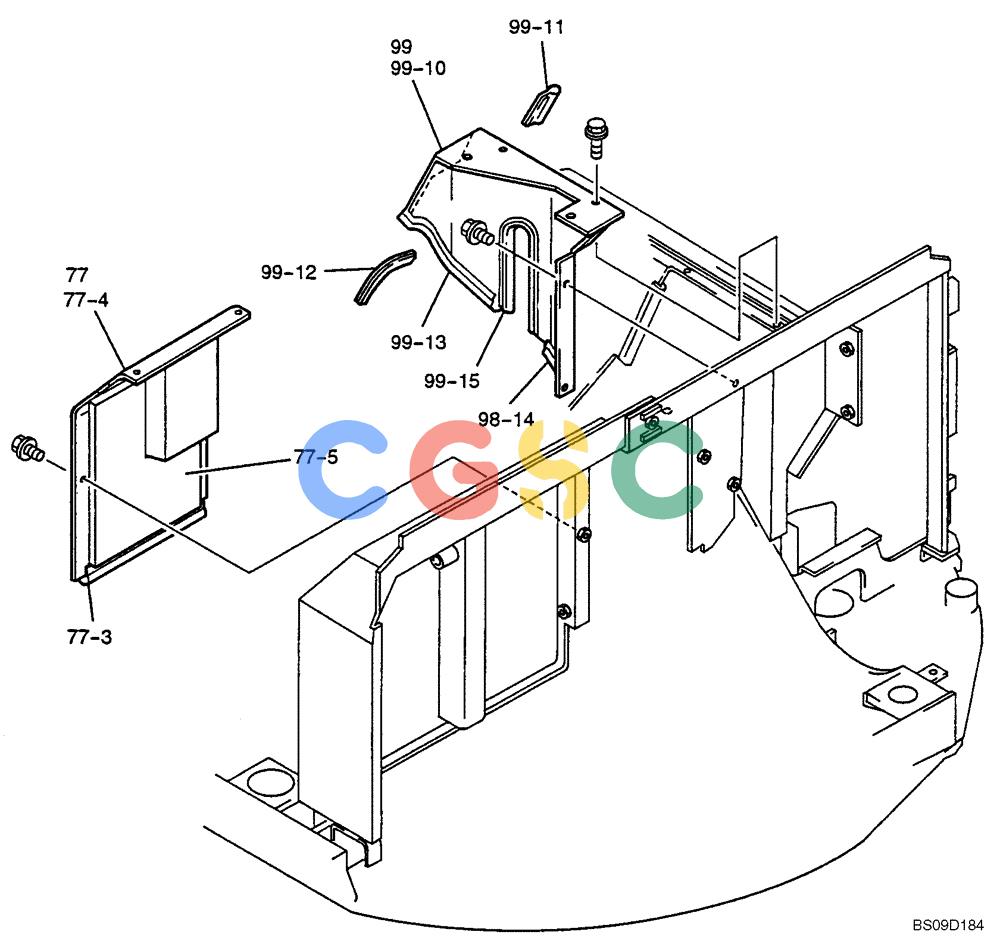

神钢零件查询(NIBBLER) - & BREAKER - SK70SR-1E SHORT RADIUS EXCAVATOR ASN YT02-04001 (4/03-12/04) (06-071[00]) - GUARD INSTALLATION (EXTRA), (YT21C00010F4) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
305 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 77. | YT21C01275F2 | [1] | GUARD | KOBAssembly, Incls. Refs. 77-3 - 77-5 |
| 77-3. | YT21C01039D7 | [1] | WEATHERSTRIP | KOB330mm Long (13 in) |
| 77-4. | YT21C01306P1 | [1] | GUARD | KOB Superseded by part number: YT21C01306P2 |
| 77-5. | YT21C01337P1 | [1] | INSULATION | KOB |
| 99. | YT21C01191F5 | [1] | Gaurd Assembly, Incls. Refs. 99-10 - 99-15 | |
| 99-10. | YT21C01205P2 | [1] | GUARD | KOB |
| 99-11. | YT21C01159D1 | [1] | WEATHERSTRIP | KOB |
| 99-12. | YT21C01037D2 | [1] | TRIM PANEL | KOB235mm Long (9-1/4 in) |
| 99-13. | YT21C01163DC | [1] | WEATHERSTRIP | KOB |
| 99-14. | YT21C01163DG | [1] | WEATHERSEAL STRIP | KOBWeatherstrip |
| 99-15. | YT21C01163D8 | [1] | WEATHERSTRIP | KOB |
