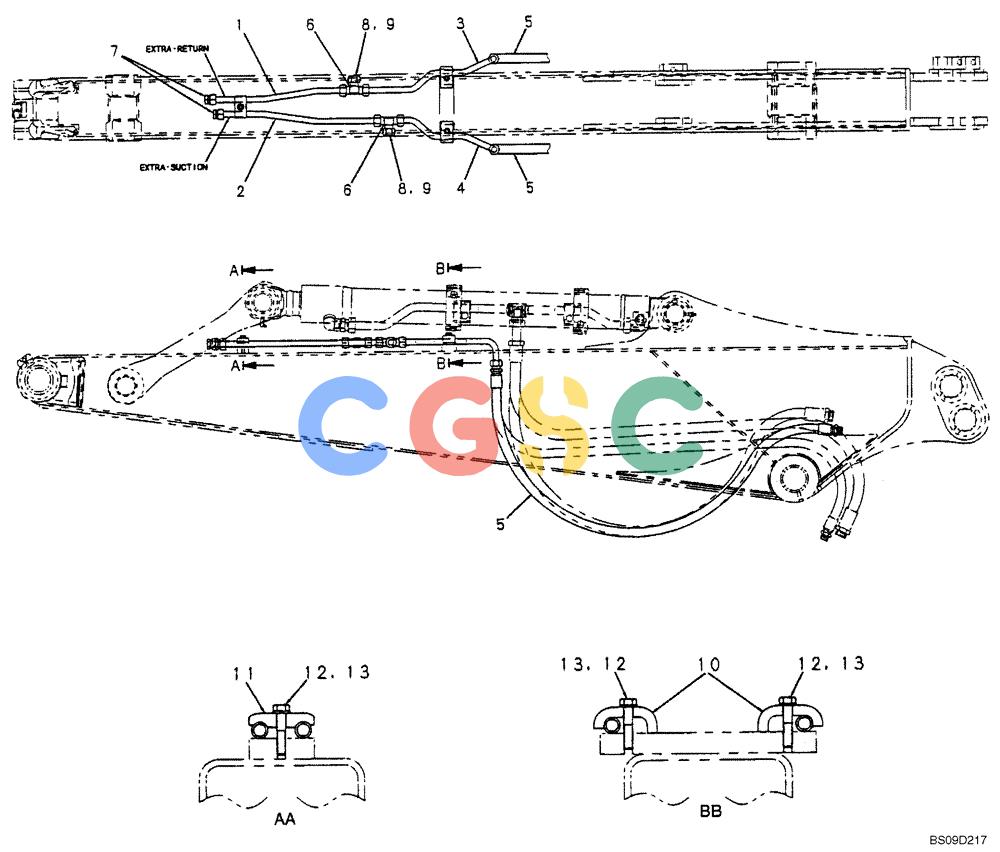

神钢零件查询(NIBBLER) - & BREAKER - SK70SR-1E SHORT RADIUS EXCAVATOR ASN YT02-04001 (4/03-12/04) (06-127[00]) - ARM HYDRAULIC LINES 2.07M (6FT 9IN) (EXTRA), (YT43H00049F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
960 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YT43H01057P1 | [1] | TUBE | KOB |
| 2. | YT43H01058P1 | [1] | TUBE | KOB |
| 3. | YT43H01076P1 | [1] | TUBE | KOB |
| 4. | YT43H01077P1 | [1] | TUBE | KOB |
| 5. | ZX58N08135 | [2] | HOSE | KOB |
| 6. | ZA53B15000 | [2] | TEE | KOB |
| 7. | ZA82P15000 | [2] | PLUG | KOB |
| 8. | ZA83P15000 | [2] | PLUG | KOB |
| 9. | ZA93N15000 | [2] | TUBE NUT | KOB |
| 10. | 2432T1773 | [2] | CLAMP | KOB |
| 11. | ZC36X15009 | [1] | CLAMP | KOB |
| 12. | ZS18C08040 | [2] | SCREW,Hex, M8 x 40mm | KOBM08x1.25x40mm |
| 13. | ZW26X08000 | [2] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
