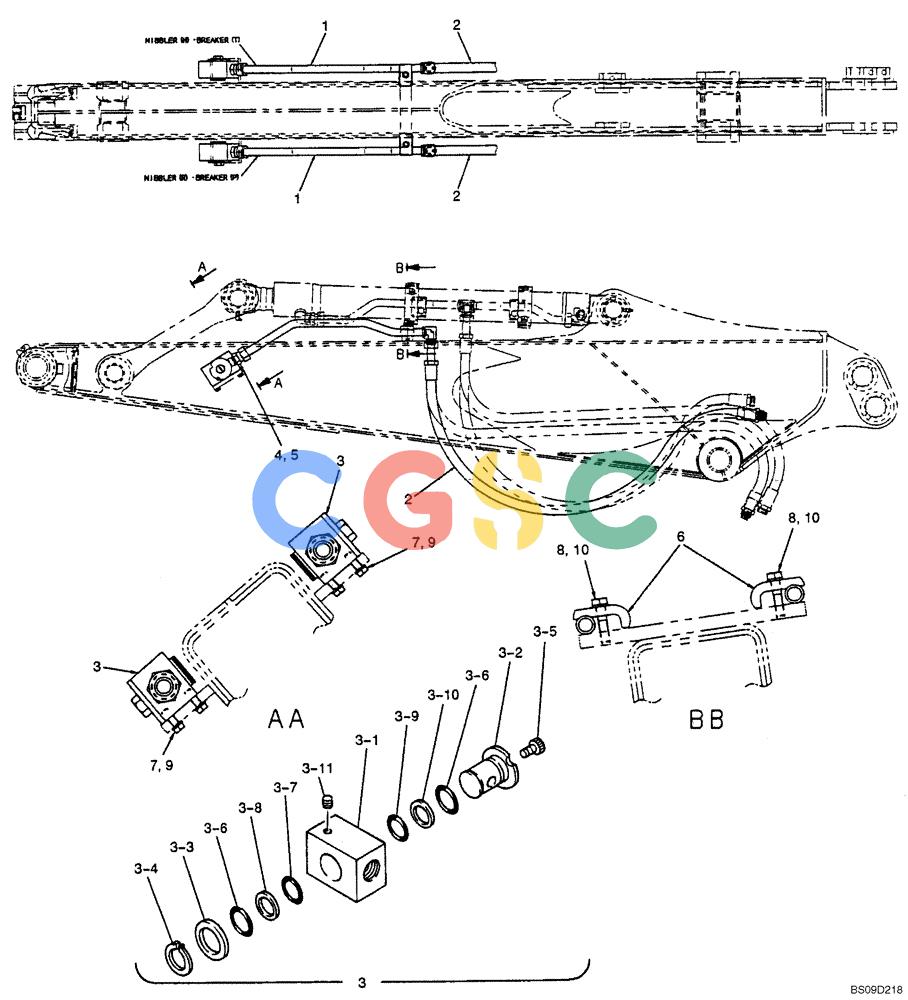

神钢零件查询(NIBBLER) - & BREAKER - SK70SR-1E SHORT RADIUS EXCAVATOR ASN YT02-04001 (4/03-12/04) (06-129[00]) - ARM HYDRAULIC LINES 2.07M (6FT 9IN) (EU) (BREAKER, NIBBLER & BREAKER), (YT43H00053F1) Kobelco
广数供应链运营团队, 15 02月, 2025，浏览：
798 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | YT43H01056P1 | [2] | TUBE | KOB |
| 2. | YT43H01013DB | [2] | HOSE | KOB1450mm Long (57-3/32 in) |
| 3. | 24100P1006F1 | [2] | VALVE | KOBAssembly, Stop, Incls. Refs. 3-1 - 3-11 Superseded by part number: 24100P1006F2 |
| 3-1. | 2436P230 | [1] | VALVE BODY | KOB |
| 3-2. | 2436T304 | [1] | VALVE | KOB |
| 3-3. | 2418T8945D1 | [1] | SPACER | KOBID 40 x OD 60 x Th 3.2mm |
| 3-4. | ZR16X04000 | [1] | RING | KOBRetaining -- ID 37 x OD 40 x Th 1.8mm |
| 3-5. | ZS23C06010 | [1] | SCREW,Hex Socket Head, M6 x 10mm | KOBM06x1.0x10mm |
| 3-6. | ZD11G04000 | [2] | O-RING,39.40mm ID x 45.60mm OD x 3.10mm | KOBID 39.40 ± 0.37 x OD 45mm |
| 3-7. | ZD12G04000 | [1] | O-RING,39.40mm ID x 45.60mm OD x 3.10mm | KOBID 39.40 ± 0.37 x OD 45mm |
| 3-8. | ZD75G04000 | [1] | BACK-UP RING | KOBID 40 x OD 45 x Th 1.25mm |
| 3-9. | ZD12G03500 | [1] | O-RING,34.40mm ID x 40.60mm OD x 3.10mm | KOBID 34.40 ± 0.33 x OD 40mm |
| 3-10. | ZD85G03500 | [1] | RING | KOBBack-Up -- ID 35 x OD 40 x Th 1.25mm |
| 3-11. | ZE82T04000 | [1] | PLUG | KOB1/4" PT |
| 4. | ZA23F22012 | [2] | HYD CONNECTOR | KOB3/4" PF - M30x1.50x46mm Long |
| 5. | ZD12P02400 | [2] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 6. | ZC26X22011 | [2] | CLAMP | KOBSingle Line -- 38x29x65mm Long |
| 7. | ZS18C08025 | [5] | SCREW,Hex, M8 x 25mm | KOBM08x1.25x25mm |
| 8. | ZS18C10045 | [2] | SCREW,Hex, M10 x 45mm | KOBM10x1.50x45mm |
| 9. | ZW26X08000 | [8] | LOCK WASHER | KOBLock -- ID 08 x OD 15 x Th 2.0mm Superseded by part number: 83990583 |
| 10. | ZW26X10000 | [2] | LOCK WASHER | KOBID 10 x OD 18 x Th 2.5mm |
