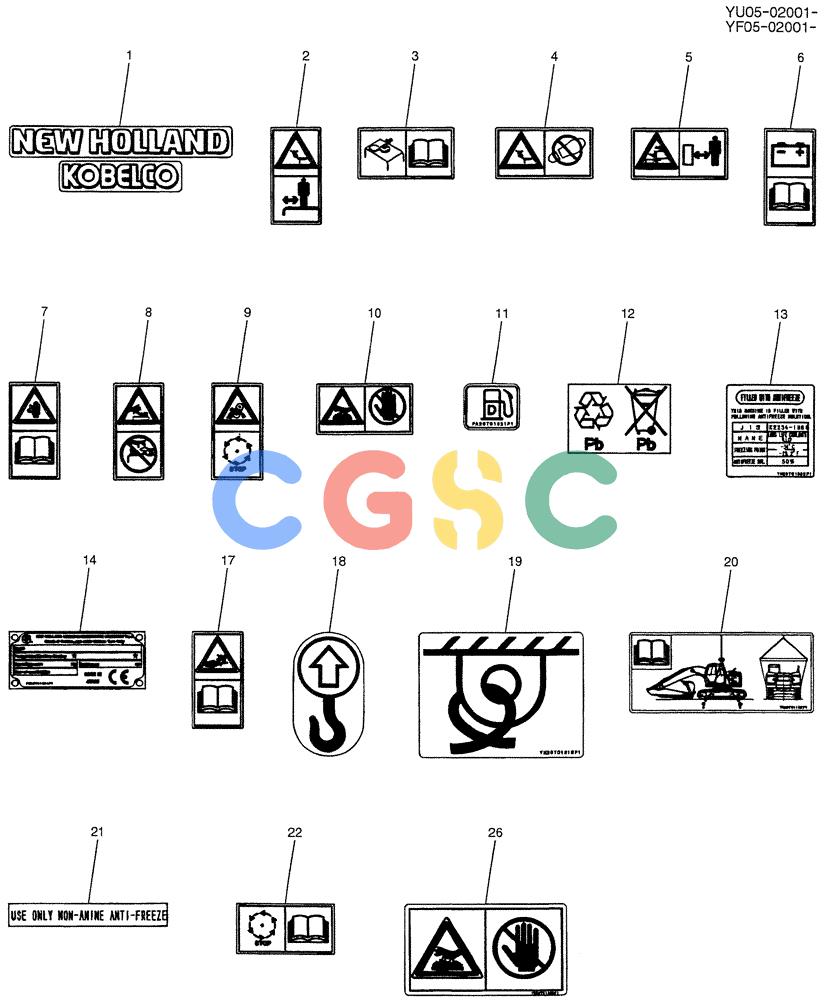

纽荷兰零件查询(E235BSRNLC) - CRAWLER EXCAVATOR ASN YU05-02001 (07-001[02]) - NAME PLATE INSTAL, P/N YB22T00062F1 New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
247 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YB22T00062F1 | [1] | DATA PLAQUE | KOBNAME PLATE INSTAL [REQUIRED (ISO)] |
| 2. | ZL11N02604 | [1] | LABEL | KOB |
| 3. | YN20T01355P1 | [1] | LABEL | KOB |
| 4. | ZL11M02708 | [4] | LABEL | KOB |
| 5. | ZL11M04116 | [2] | LABEL | KOB |
| 6. | YN20T01356P1 | [1] | DECAL | KOB |
| 7. | ZL11N01104 | [1] | LABEL | KOB |
| 8. | ZL11N00404 | [1] | LABEL | KOB |
| 9. | ZL11N05104 | [1] | DECAL | KOB |
| 10. | ZL11M00508 | [1] | LABEL | KOB |
| 11. | PA20T01031P1 | [1] | CAUTION DECAL | KOBDecal, Diesel Fuel Only |
| 12. | 2432T6179 | [2] | CAUTION DECAL | KOBDecal, Recycle |
| 13. | YN20T01832P1 | [1] | LABEL | KOBDecal, Filled with antifreeze… |
| 17. | YN20T01813P1 | [2] | LABEL | KOBDecal, Review manual |
| 18. | YN20T01818P1 | [4] | LABEL | KOBDecal, Lift point |
| 19. | YN20T01819P1 | [4] | LABEL | KOBDecal, Tie point |
| 20. | YB20T01132P1 | [1] | LABEL | KOB |
| 26. | YN20T01852P1 | [1] | LABEL | KOB Superseded by part number: YN20T01852P2 |
| . . | YB22T00062F2 | [1] | NAME PLATE INSTAL [SELECT (EU)] | |
| 1. | YY22T00105P1 | [1] | DECAL | KOBNAME PLATE, NEW HOLLAND-KOBELCO |
| 14. | PM20T01054P1 | [1] | TYPE PLATE | KOBPLATE NUMBER |
| 15. | 4020Z64 | [4] | RIVET | KOBOD 5.0 x 6.0mm Long Superseded by part number: 2420P623D7 |
| 21. | 2432T3972 | [1] | LABEL | KOBUSE ONLY NON-AMINE ANTI-FREEZ |
| 22. | YN20T01363P1 | [1] | LABEL | KOB |
| 23. | 2432T6142 | [2] | LABEL | KOB |
