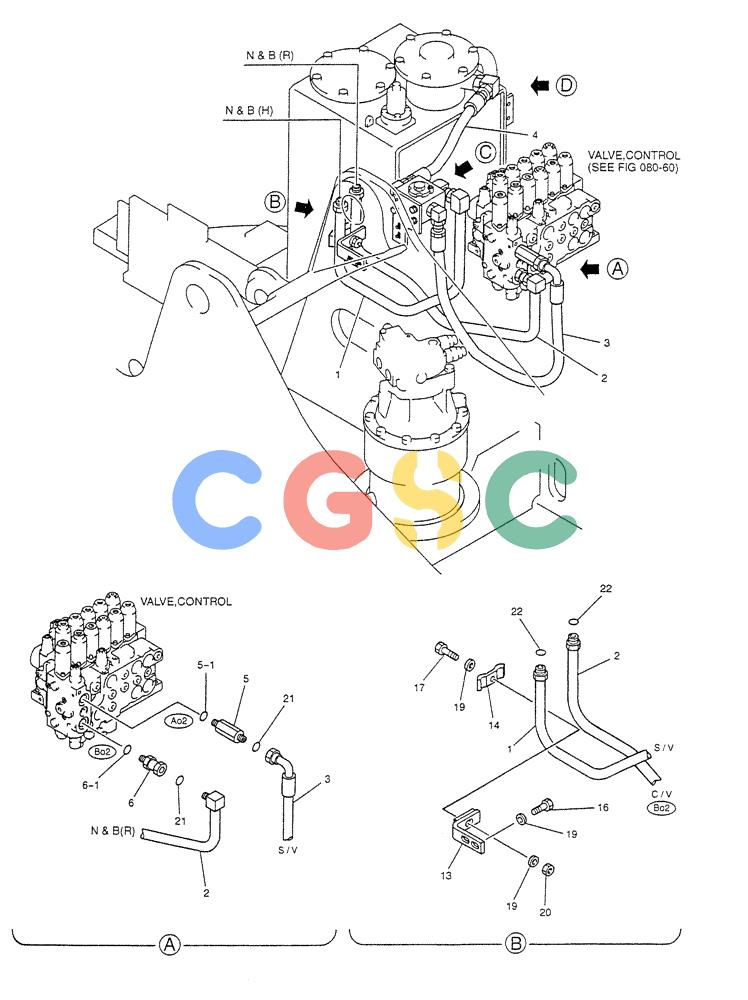

| . . | YB03H00002F1 | [1] | TUBE | KOB |
| 1. | YB03H01011P1 | [1] | TUBE | KOBTUBE |
| 2. | YB03H01016P1 | [1] | TUBE | KOB |
| 3. | ZX30H12088 | [1] | HYDRAULIC HOSE | KOB880mm Long (34-41/64 in) |
| 4. | 2444Z3722D9 | [1] | HOSE | KOBHOSE |
| 5. | HG24F12012G1 | [1] | HYD CONNECTOR | KOB |
| 5-1. | ZD12P02400 | [1] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 6. | HG23H12012G1 | [1] | HYD CONNECTOR | KOB(Incls. O-Ring ZD12P02400) |
| 6-1. | ZD12P02400 | [1] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 7. | 24100P1005F1 | [1] | VALVE | KOBASSY Superseded by part number: 24100P1005F3 |
| 7-1. | 2436P229 | [1] | VALVE BODY | KOB |
| 7-2. | 2436T303 | [1] | VALVE | KOB |
| 7-3. | 2418T8945D1 | [1] | SPACER | KOBID 40 x OD 60 x Th 3.2mm |
| 7-4. | ZR16X04000 | [1] | RING | KOBRetaining -- ID 37 x OD 40 x Th 1.8mm |
| 7-5. | ZS23C06010 | [1] | SCREW,Hex Socket Head, M6 x 10mm | KOBM06x1.0x10mm |
| 7-6. | ZD11G04000 | [2] | O-RING,39.40mm ID x 45.60mm OD x 3.10mm | KOBID 39.40 ± 0.37 x OD 45mm |
| 7-7. | ZD12G04000 | [1] | O-RING,39.40mm ID x 45.60mm OD x 3.10mm | KOBID 39.40 ± 0.37 x OD 45mm |
| 7-8. | ZD75G04000 | [1] | BACK-UP RING | KOBID 40 x OD 45 x Th 1.25mm |
| 7-9. | ZD12G03500 | [1] | O-RING,34.40mm ID x 40.60mm OD x 3.10mm | KOBID 34.40 ± 0.33 x OD 40mm |
| 7-10. | ZD85G03500 | [1] | RING | KOBBack-Up -- ID 35 x OD 40 x Th 1.25mm |
| 8. | ZG33F12012 | [1] | 90 ELBOW,1 3/16"-12 UN x PF 3/4" | KOB90° -- 1-3/16" -12UN x 3/4" PF (Incls. O-Ring ZD12P02400) |
| 8-1. | ZD12P02400 | [1] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 9. | HG33H12012G1 | [1] | HYD CONNECTOR | KOBELBOW |
| 9-1. | ZD12P02400 | [1] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 10. | 2444R399D7 | [1] | ELBOW | KOB |
| 10-1. | ZD12P02400 | [1] | O-RING | KOBID 23.70 ± 0.24 x OD 30mm |
| 11. | 2444Z3203 | [1] | ELBOW | KOB Superseded by part number: HH35X16016G1 |
| 11-1. | ZD12P02900 | [1] | O-RING | KOBID 28.70 ± 0.29 x OD 35mm |
| 12. | YN03H01350P1 | [1] | PLATE | KOBPLATE |
| 13. | YB03H01018P1 | [1] | SUPPORT | |
| 14. | YN03H01244P1 | [1] | CLAMP | KOB |
| 15. | ZS18C08025 | [4] | SCREW,Hex, M8 x 25mm | KOBM08x1.25x25mm |
| 16. | ZS18C12030 | [4] | SCREW,Hex, M12 x 30mm | KOBM12x1.75x30mm |
| 17. | ZS18C12070 | [1] | SCREW,Hex, M12 x 70mm | KOBM12x1.75x70mm |
| 18. | ZW16H08000 | [4] | WASHER | KOBID 08 x OD 18 x Th 3.2mm |
| 19. | ZW16H12000 | [6] | WASHER | KOBID 13 x OD 26 x Th 3.2mm |
| 20. | ZN18C12010 | [1] | NUT | KOBM12x1.75mm |
| 21. | ZD12A01800 | [4] | O-RING,1.78mm Thk x 18.77mm ID, Cl 6 | KOBID 18.77 ± 0.12 x OD 22.33mm |
| 22. | ZD12A02100 | [2] | O-RING | KOBID 23.52 ± 0.15 x OD 27.08mm |
