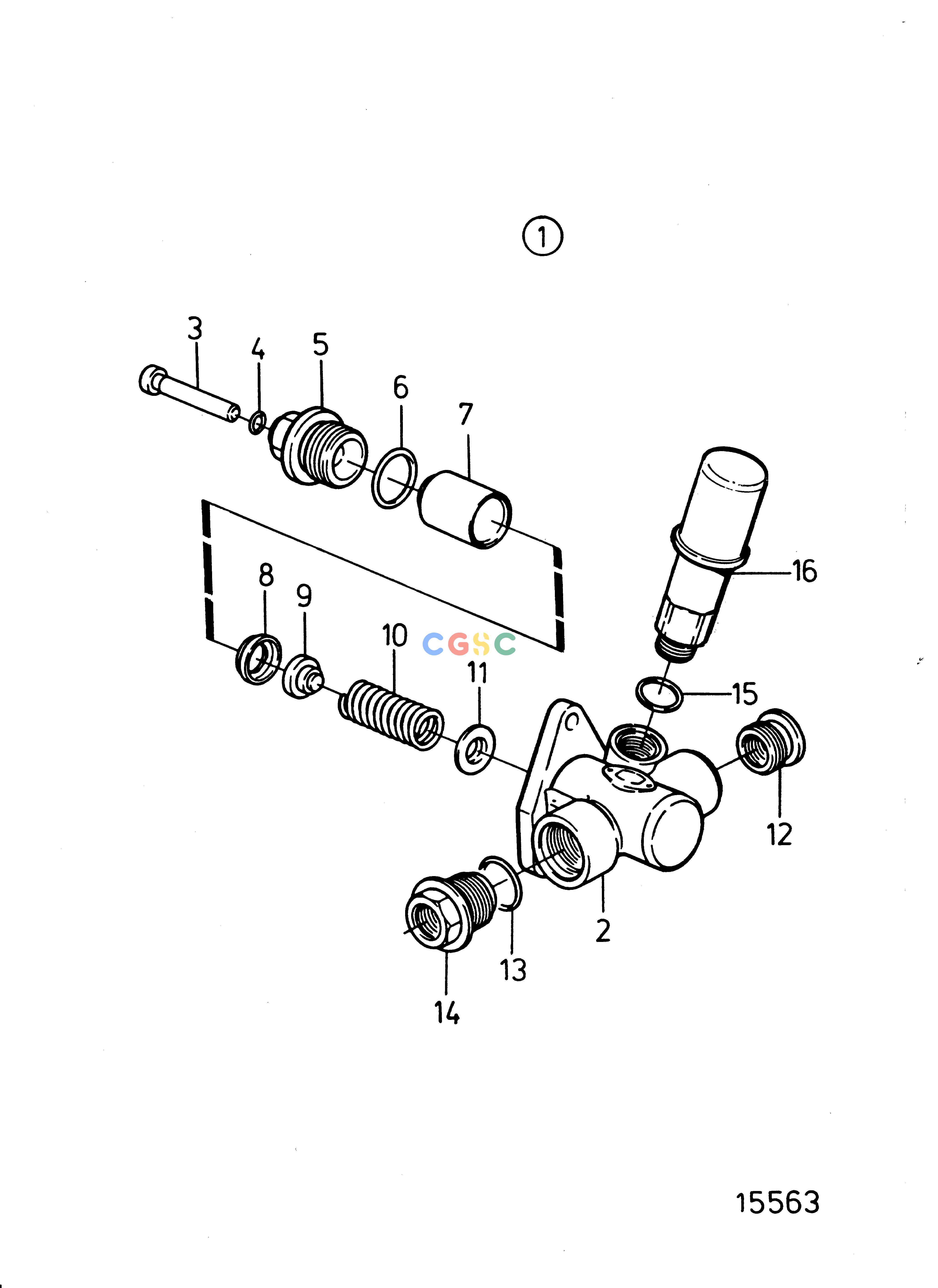

沃尔沃零件查询TAMD61A; TAMD62AFuel SystemFuel Feed Pump, ComponentsEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
957 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
244825
|
[1] |
Feed pump
|
|
| 2. |
|
|
|
|
| 3. |
244826
|
[1] |
Push rod
|
|
| 4. |
244829
|
[1] |
O-ring
|
|
| 5. |
244827
|
[1] |
Housing
|
|
| 6. |
244828
|
[1] |
O-ring
|
|
| 7. |
244831
|
[1] |
Piston
|
|
| 8. |
11706665
|
[1] |
Spacer ring
|
|
| 9. |
244834
|
[1] |
Valve
|
|
| 10. |
244832
|
[1] |
Spring
|
|
| 11. |
244833
|
[2] |
Spring disc
|
|
| 12. |
244836
|
[1] |
Bushing
|
|
| 13. |
244838
|
[1] |
O-ring
|
|
| 14. |
244837
|
[1] |
Fitting
|
|
| 15. |
240572
|
[1] |
Gasket
|
|
| 16. |
3826073
|
[1] |
Hand pump
|
|
