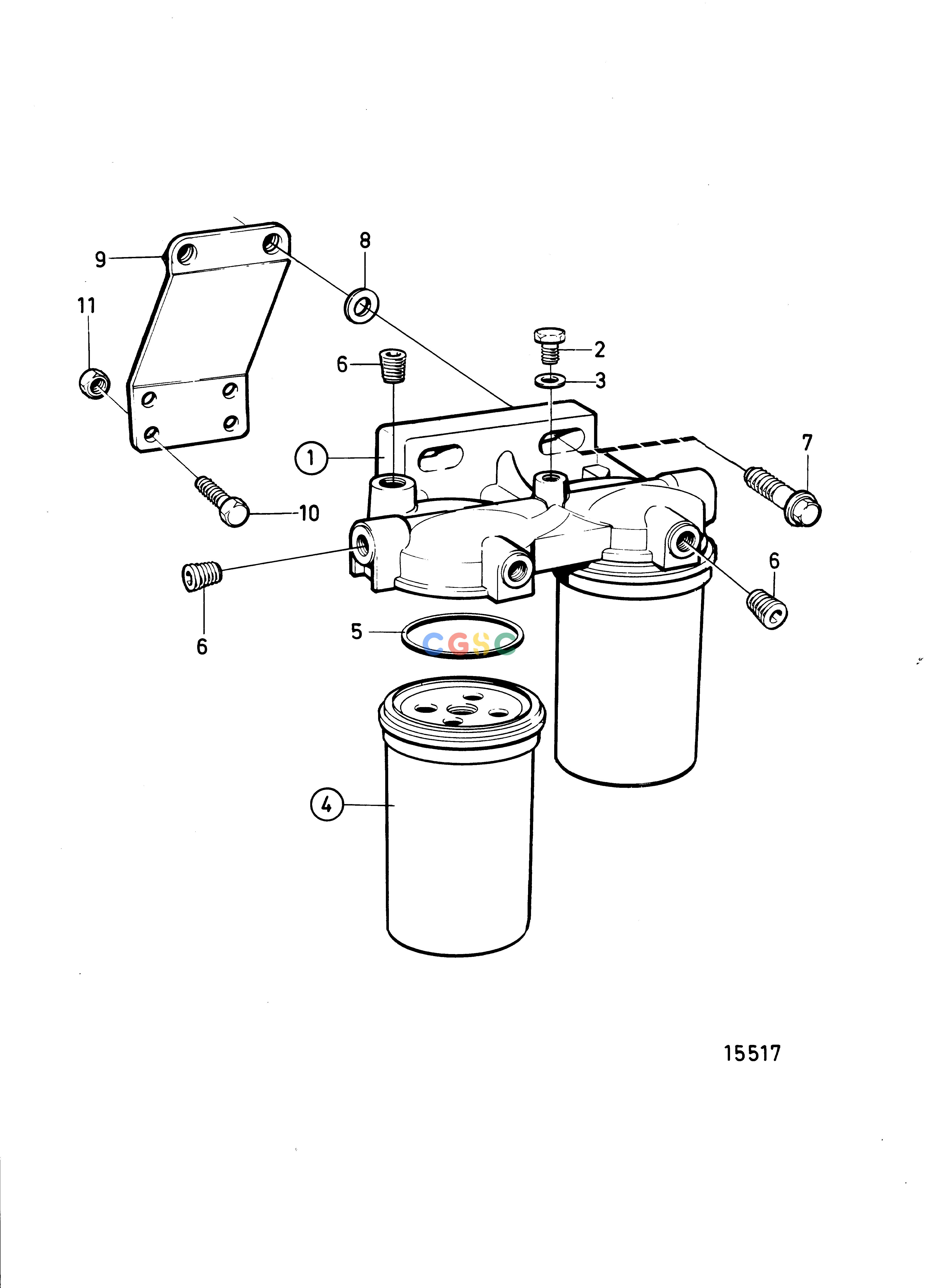

沃尔沃零件查询TAMD61A; TAMD62AFuel SystemFuel FilterEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
204 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
471172
|
[1] |
Filter housing
|
Repl by 1676832
|
| 1. |
1676832
|
[1] |
Housing
|
|
| 2. |
471177
|
[1] |
Hollow screw
|
M8
|
| 2. |
240664
|
[1] |
Bleeder screw
|
M6, alt
|
| 3. |
947620
|
[1] |
Gasket
|
|
| 4. |
3825133
|
[2] |
Fuel filter
|
(466987)
|
| 5. |
|
|
|
|
| 6. |
968062
|
[3] |
Plug
|
(960630)
|
| 7. |
946752
|
[2] |
Flange screw
|
|
| 8. |
941908
|
[2] |
Spring washer
|
|
| 9. |
847841
|
[1] |
Bracket
|
|
| 10. |
973083
|
[2] |
Flange screw
|
(946329)
|
| 11. |
955783
|
[2] |
Hexagon nut
|
|
