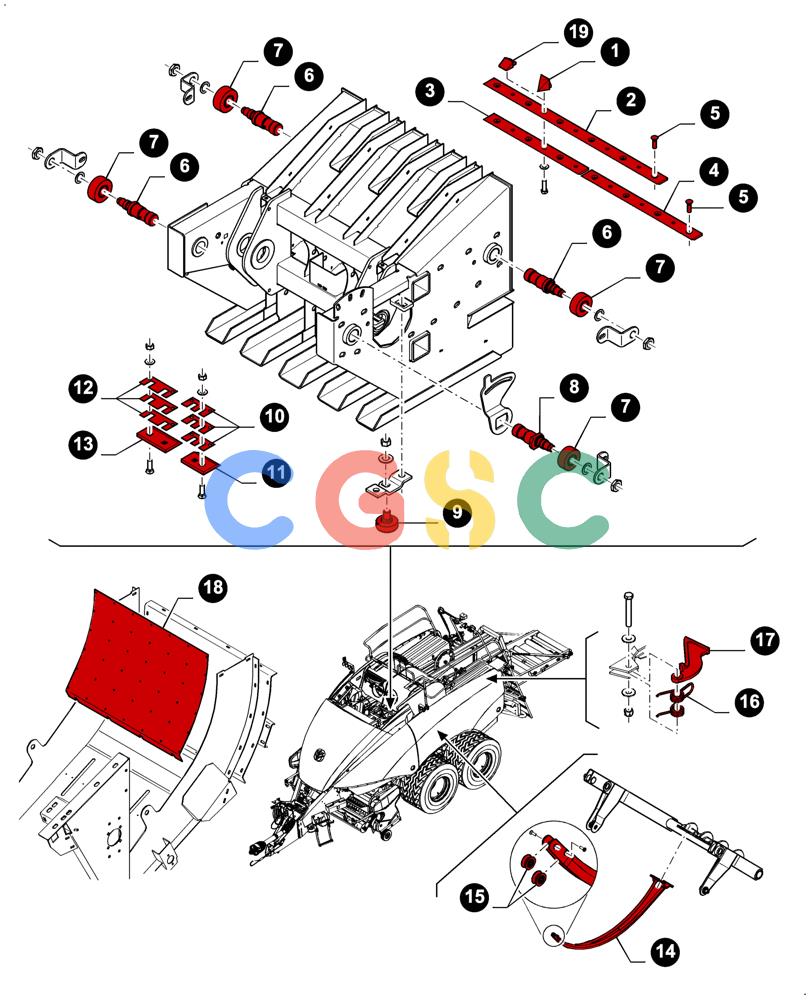

凯斯零件查询(LB324S) - BALER (9/12-) (05.100.04[04]) - MAINTENANCE PARTS, PLUNGER AND PLUNGER ROLLERS, NEEDLES Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
519 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
84607550
|
[6] |
GUIDE
|
ZED
|
| 2. |
84400465
|
[1] |
KNIFE
|
ZED
|
| 3. |
84814538
|
[1] |
KNIFE,540mm L x 60mm W x 10mm Thk
|
ZED
RH
|
| 4. |
84814537
|
[1] |
KNIFE,630mm L x 60mm W x 10mm Thk
|
ZED
LH
|
| 5. |
380420
|
[1] |
BOLT
|
NH
|
| 6. |
84814847
|
[3] |
SHAFT
|
ZED
|
| 7. |
84100796
|
[4] |
ROLLER,72mm OD x 29mm L
|
ZED
|
| 8. |
84814846
|
[1] |
SHAFT
|
ZED
|
| 9. |
861325
|
[2] |
BEARING ASSY,0.75" ID x 2.5" OD x 2.25"
|
NH
, Serial Range: -C084
|
| 9. |
47470788
|
[2] |
BEARING
|
ZED
, Start Serial: D085
|
| 10. |
84817044
|
[6] |
SHIM,45mm OD x 0.5mm Thk
|
CUR
|
| 11. |
84814870
|
[2] |
KNIFE,90mm L x 68mm W x 10mm Thk
|
ZED
|
| 12. |
84817042
|
[9] |
SHIM,45mm OD x 0.5mm Thk
|
ZED
|
| 13. |
84814869
|
[3] |
KNIFE,108mm L x 68mm W x 10mm Thk
|
ZED
|
| 13. |
84814868
|
[5] |
KNIFE,116mm L x 68mm W x 10mm Thk
|
ZED
|
| 14. |
87723765
|
[1] |
NEEDLE
|
ZED
Incl 15
|
| 14. |
87723764
|
[1] |
NEEDLE
|
ZED
Incl 15
|
| 15. |
87690629
|
[2] |
ROPE GUIDE ROLLER,31.5mm OD x 16mm L
|
ZED
|
| 16. |
84806594
|
[4] |
SPRING
|
ZED
|
| 17. |
9837987
|
[4] |
LEVER
|
ZED
|
| 18. |
84470357
|
[1] |
PLATE
|
ZED
Liner, Pre-compression chamber
|
| 18. |
84470360
|
[1] |
PLATE
|
ZED
Liner, Pre-compression chamber
|
| 18. |
48042280
|
[1] |
PLATE
|
ZED
Liner, Pre-compression chamber
|
| 19. |
47429062
|
[6] |
GUIDE
|
ZED
, Start Serial: D099
|
| 19. |
48037183
|
[6] |
|
GUIDE
|
