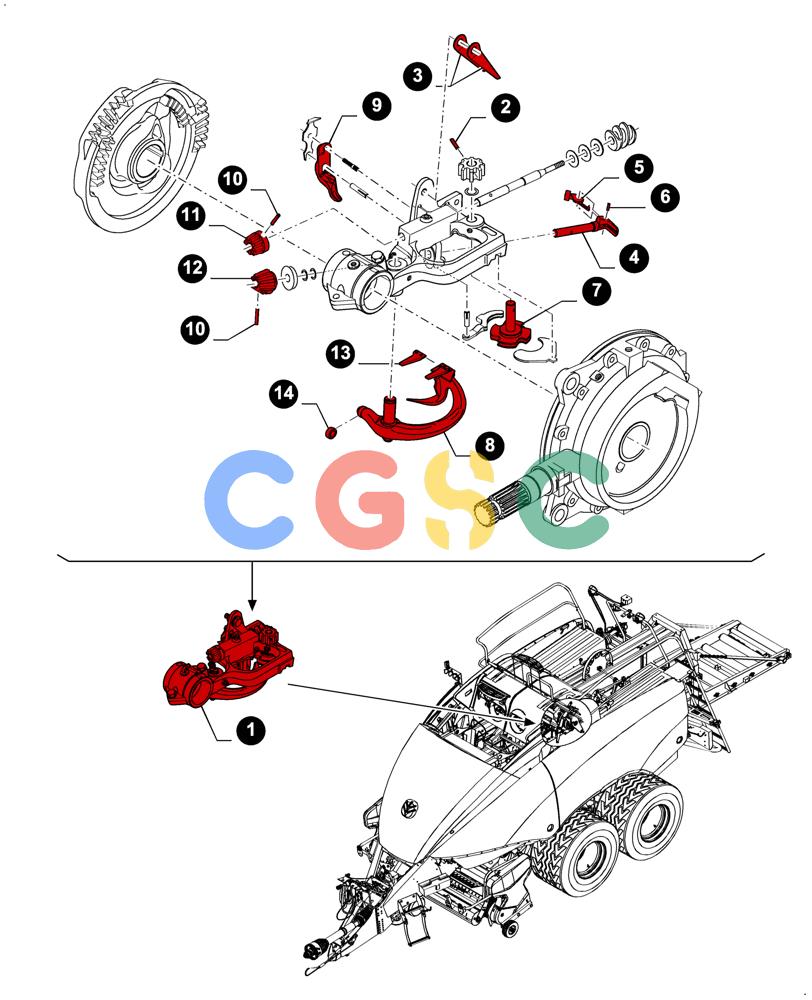

凯斯零件查询(LB324S) - BALER (9/12-) (05.100.04[05]) - MAINTENANCE PARTS, KNOTTERS Case Agriculture
广数供应链运营团队, 15 02月, 2025，浏览：
840 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
87728048
|
[1] |
KNOTTER
|
ZED
Incl 2 - 14, Serial Range: -C144
|
| 1. |
47728319
|
[1] |
KNOTTER
|
ZED
Incl 2 - 14, Start Serial: D145
|
| 2. |
9838812
|
[1] |
COILED PIN
|
ZED
|
| 3. |
9838785
|
[2] |
SPRING CLIP
|
ZED
Set of 2, Serial Range: -C023 Superseded by part number: 84401492
|
| 3. |
84401492
|
[2] |
LEAF SPRING
|
ZED
Set of 2, Start Serial: D024
|
| 4. |
87645121
|
[1] |
BILL HOOK
|
ZED
Incl 5, 6, Serial Range: -C098
|
| 4. |
9838789
|
[1] |
BILL HOOK
|
ZED
, Start Serial: D099 Superseded by part number: 87645121, 84143494
|
| 5. |
87645098
|
[1] |
BILL HOOK
|
ZED
, Serial Range: -C098
|
| 5. |
9838791
|
[1] |
BILL HOOK
|
ZED
, Start Serial: D099
|
| 6. |
9838790
|
[1] |
PIN,5mm OD x 16mm L
|
ZED
|
| 7. |
84790414
|
[1] |
DISC
|
ZED
|
| 8. |
87728047
|
[1] |
ARM
|
ZED
Incl 13, 14
|
| 9. |
84143494
|
[1] |
CAM
|
ZED
|
| 10. |
87371864
|
[2] |
COTTER PIN,5.13mm OD x 30mm L
|
ZED
|
| 11. |
9838815
|
[1] |
GEAR
|
ZED
|
| 12. |
87620494
|
[1] |
GEAR
|
ZED
|
| 13. |
9838803
|
[1] |
KNIFE,48mm L x 27mm W x 2mm Thk
|
ZED
|
| 14. |
9838802
|
[1] |
ROLLER
|
ZED
|
