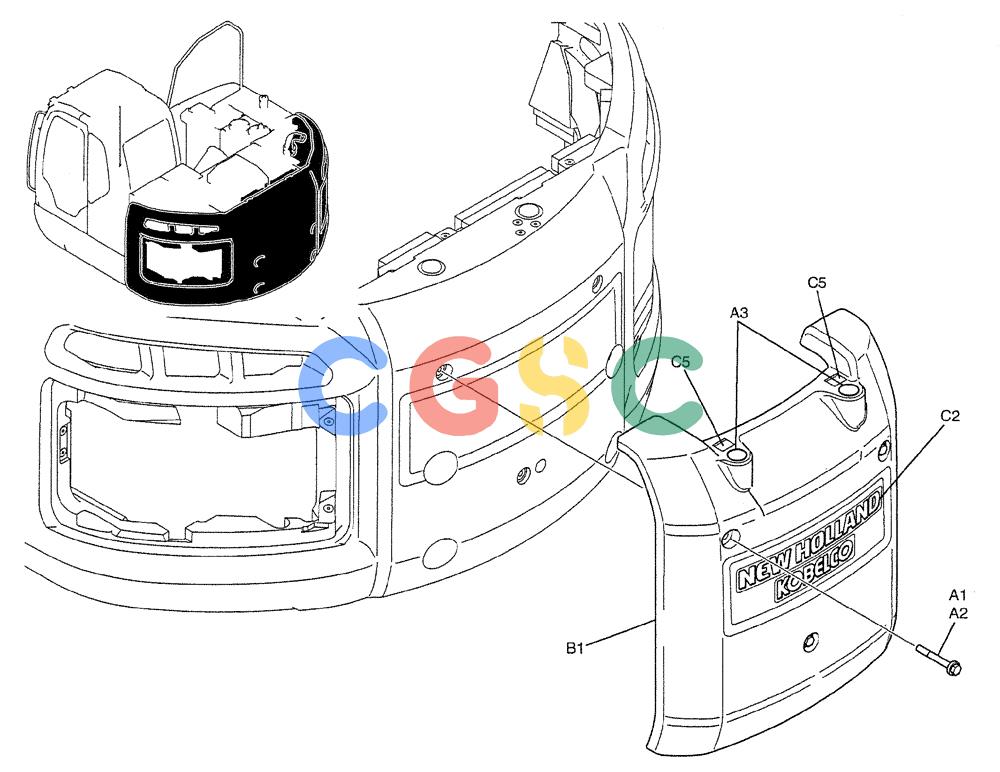

纽荷兰零件查询(E235BSRNLC) - CRAWLER EXCAVATOR ASN YU05-02001 (01-003) - COUNTERWEIGHT INSTAL (GAIN) New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
709 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YF60C00015F1 | [1] | COUNTERWEIGHT INSTAL | |
| . . | YF60C00017F1 | [1] | COUNTERWEIGHT INSTAL | |
| A1. | ZS13C24190 | [3] | BOLT | KOBCAP |
| A2. | HY26Y25054D2 | [3] | WASHER | HIT |
| A3. | LE60C01029P1 | [2] | PLATE | KOBPLUG |
| B1. | YF60C00013P1 | [1] | WEIGHT | KOBCOUNTER |
| . . | YF22T00056F2 | [1] | NAME PLATE INSTAL | |
| C2. | YT22T00113P1 | [1] | DECAL | KOBNAME PLATE |
| C5. | YN20T01221P1 | [2] | DANGER DECAL | KOBDecal, Danger, Do not use counterweight lifting eyes to lift whole machine.… |
