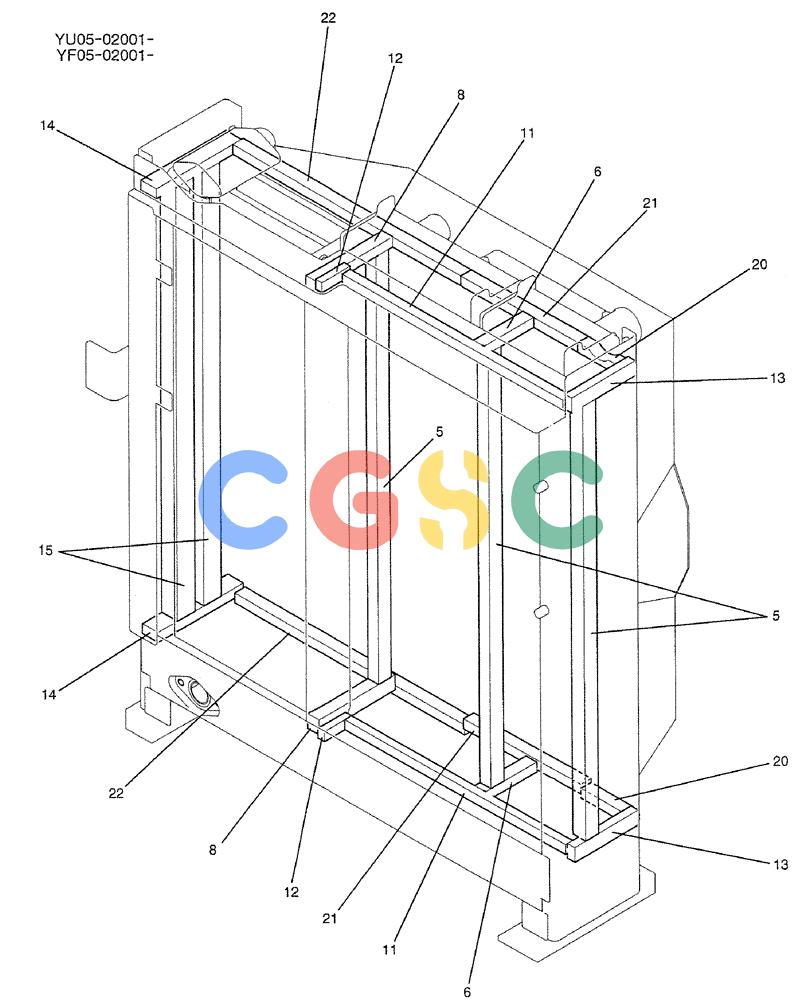

纽荷兰零件查询(E235BSRNLC) - CRAWLER EXCAVATOR ASN YU05-02001 (01-008[02]) - RADIATOR ASSY New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
291 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YB05P00019F1 | [1] | RADIATOR | KOBASSY |
| 1. | YB05P00019S001 | [1] | RADIATOR | KOBASSY |
| 2. | YN05P00010S006 | [1] | RADIATOR CAP | KOBRadiator Press Superseded by part number: YN05P00088S032 |
| 3. | 2452U221S18 | [1] | DRAINCOCK/TAP SUPPLY | KOBCOCK, DRAIN |
| 4. | 2452U416S6 | [1] | HOSE | KOB |
| 5. | YB05P00019S005 | [3] | INSULATOR | KOB |
| 6. | YB05P00019S006 | [2] | INSULATOR | KOB |
| 7. | YB05P00019S007 | [1] | OIL COOLER | KOB |
| 8. | LC05P00043S027 | [2] | INSULATOR | SM |
| 9. | YB05P00019S009 | [1] | COOLER | KOBAIR |
| 10. | YB05P00019S010 | [1] | FRAME | KOB |
| 11. | YB05P00019S011 | [2] | RUBBER BAND | KOB |
| 12. | YB05P00019S012 | [2] | RUBBER BAND | KOB |
| 13. | YB05P00019S013 | [2] | RUBBER BAND | KOB |
| 14. | YB05P00019S014 | [2] | RUBBER BAND | KOB |
| 15. | YB05P00019S015 | [2] | INSULATOR | KOB |
| 16. | YB05P00019S016 | [1] | SHROUD | KOB |
| 17. | YN05P00058S026 | [1] | PLATE | KOB |
| 18. | YN05P00058S027 | [1] | PLATE | KOB |
| 19. | 2452U377S6 | [16] | CAP | KOBSCREW |
| 20. | YB05P00019S020 | [2] | RUBBER BAND | KOB |
| 21. | LQ05P00041S024 | [2] | RUBBER BAND | KOB |
| 22. | YB05P00019S022 | [2] | RUBBER BAND | KOB |
| 23. | LC05P00011S026 | [1] | FLEXIBLE HOSE | KOB |
| 24. | 2452U267S8 | [2] | CLIP | KOB |
| 25. | YM05P00019S021 | [4] | COLLAR | SM |
| 26. | YN05P00058S013 | [4] | SEAT CUSHION | SMMOUNT, RUBBER |
| 27. | YN05P00058S014 | [4] | SEAT CUSHION | KOBRUBBER |
| 28. | ZM22C10030 | [4] | BOLT | KOBM10x1.50x30mm (Incls. Washer & Lockwasher) |
