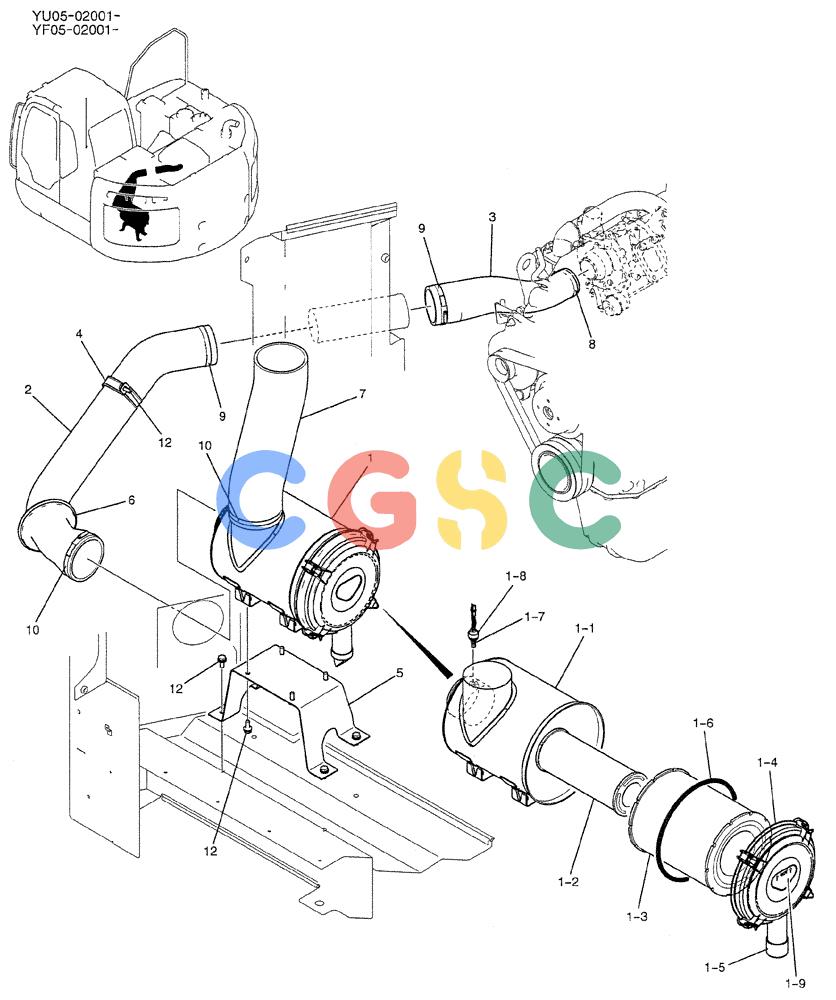

纽荷兰零件查询(E235BSRNLC) - CRAWLER EXCAVATOR ASN YU05-02001 (01-009) - CLEANER ASSY, AIR New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
258 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YB11P00002F1 | [1] | CLEANER ASSY, AIR | |
| 1. | YB11P00004F1 | [1] | AIR CLEANER | KOBASSY |
| 1-1. | YB11P00004S001 | [1] | BODY ASSY | |
| 1-2. | YN11P00029S002 | [1] | ELEMENT | KOBELEMENT, FILTER (INNER) Superseded by part number: 87683001 |
| 1-3. | YN11P00029S003 | [1] | AIR FILTER | KOBELEMENT, FILTER (OUTER) Superseded by part number: KBH0921 |
| 1-4. | YN11P00029S004 | [1] | COVER ASSY | KOB |
| 1-5. | YE11P00005S004 | [1] | VALVE | KOBASSY |
| 1-6. | YN11P00029S006 | [1] | O-RING | KOBO-RING |
| 1-7. | EB11P00001S006 | [1] | ADAPTER | KOB |
| 1-8. | YY11P01002F1 | [1] | INDICATOR | KOBASSY |
| 1-9. | EB11P00001S008 | [1] | LABEL | KOB |
| 2. | YB11P01041P1 | [1] | HOSE | KOBAIR |
| 3. | YB11P01038P1 | [1] | HOSE | KOBHOSE, AIR |
| 4. | YB11P01043P1 | [1] | CLIP | KOBCLIP |
| 5. | YB11P01039P1 | [1] | BRACKET | KOB |
| 6. | YB11P01044P1 | [1] | GROMMET | KOBBRACKET |
| 7. | YB11P01045P1 | [1] | HOSE | KOBAIR |
| 8. | ZC16X07000 | [1] | CLIP | KOB |
| 9. | ZC16X10000 | [2] | CLIP | KOB |
| 10. | ZC16X12200 | [2] | CLIP | KOB |
| 12. | ZM73C10025 | [9] | BOLT,M10x25mm - Course Thread | KOBM10x1.50x25mm (Incls. Washer) |
