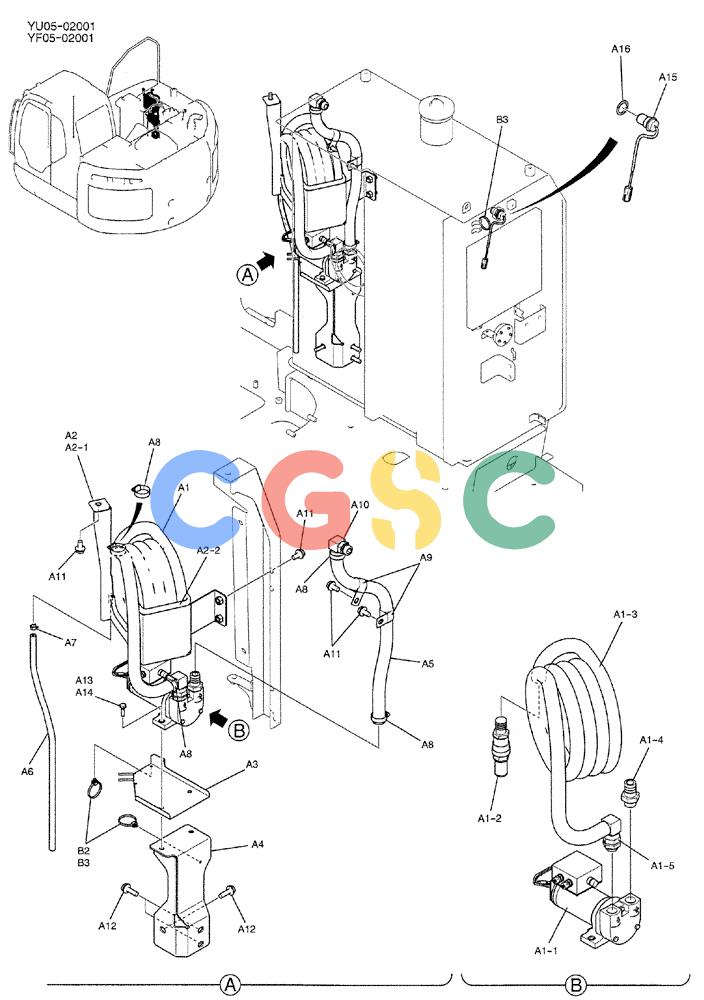

纽荷兰零件查询(E235BSRNLC) - CRAWLER EXCAVATOR ASN YU05-02001 (01-011) - PUMP ASSY, FUEL New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
859 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YF22P00010F1 | [1] | PUMP ASSY, FUEL | |
| . . | YF22P00007F1 | [1] | PUMP ASSY, FUEL | |
| A1. | YF22P00008F1 | [1] | PUMP | KOBASSY, FUEL |
| A1-1. | YF22P00009P1 | [1] | FUEL PUMP | KOB |
| A1-2. | YN50V00018P1 | [1] | STRAINER ELEMENT | KOB Superseded by part number: YN50V00026P1 |
| A1-3. | YN22P01017D1 | [1] | FLEXIBLE HOSE | KOB |
| A1-4. | YF22P01023P1 | [1] | WIRE CONNECTOR | KOB |
| A1-5. | YN22P01019P1 | [1] | ELBOW | KOB |
| A2. | YF22P01009F1 | [1] | COVER ASSY | KOB |
| A2-1. | YF22P01019P1 | [1] | COVER | KOB |
| A2-2. | LV05P01182P1 | [1] | TRIM PANEL | KOB |
| A3. | YF22P01015P1 | [1] | COVER | KOB |
| A4. | YF22P01017P1 | [1] | BRACKET | KOB, Serial Range: YU05-02001-YU05-02067 Superseded by part number: YF22P01017P3 |
| A4. | YF22P01017P2 | [1] | BRACKET, Start Serial: YU05-02068 | |
| A5. | YN22P01017D4 | [1] | HOSE | KOB |
| A6. | HX11F06068DX | [1] | HOSE,9.70mm ID x 680mm L | KOB |
| A7. | PH05P01088D7 | [1] | CLIP,13.6mm - 17.5mm | KOBClamp, Hose -- Min 13.6 x Max 17.5mm |
| A8. | ZC16X03300 | [4] | FASTENER | KOB |
| A9. | ZC46X31014 | [2] | CLIP | KOB |
| A10. | YF22P01024P1 | [1] | ELBOW | KOBELBOW |
| A11. | ZM73C12025 | [5] | BOLT,M12x25mm - Course Thread | KOBSEMS |
| A12. | ZM73C12040 | [3] | BOLT,M12x40mm - Course Thread | KOBSEMS |
| A13. | ZS18C08030 | [2] | SCREW,Hex, M8 x 30mm | KOBCAP |
| A14. | ZW16K08000 | [2] | WASHER | KOB |
| A15. | YF52S00004P1 | [1] | SENSOR | KOBLEVEL |
| A16. | YN33H01052P1 | [1] | SEAL | KOB |
| . . | YB13E00027F1 | [1] | HARNESS ASSY, UPP | |
| B2. | YN13E01375P1 | [2] | CLIP,M8 x 8.20mm Shank | KOB |
| B3. | PY01P01043D3 | [3] | CABLE TIE,188mm L | KOBWire Ties -- 188mm Long |
