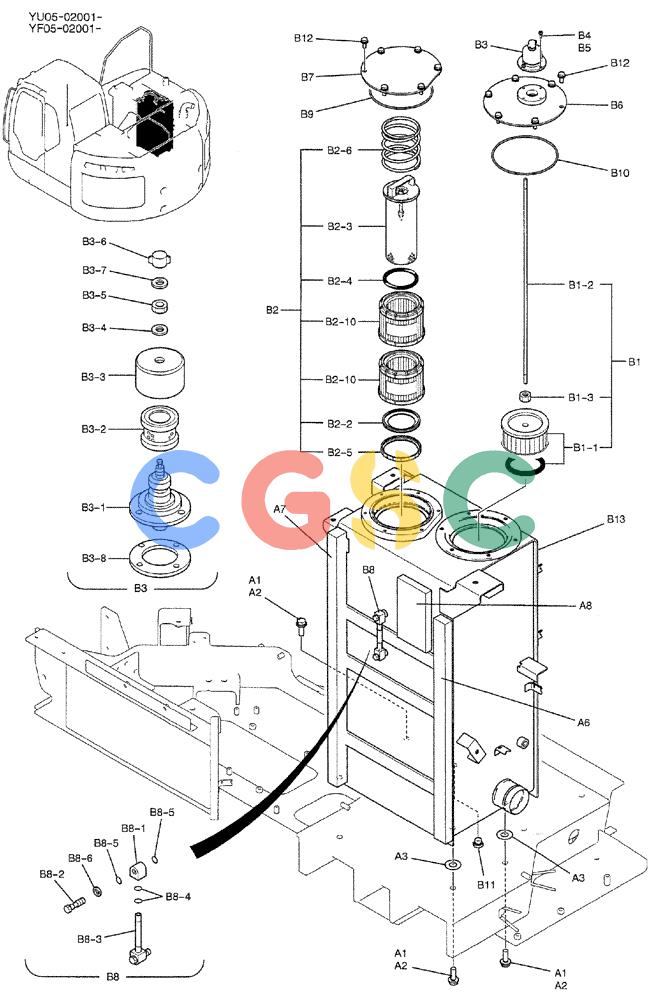

纽荷兰零件查询(E235BSRNLC) - CRAWLER EXCAVATOR ASN YU05-02001 (01-015) - TANK INSTAL, HYD New Holland Constructuion
广数供应链运营团队, 15 02月, 2025，浏览：
250 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| . . | YF33H00021F1 | [1] | TANK INSTAL, HYD | |
| . . | YF33H00010F1 | [1] | TANK INSTAL, HYD | |
| A1. | ZS13C16045 | [4] | SCREW | KOBSCREW |
| A2. | ZW13H16000 | [4] | WASHER | KOB |
| A3. | LE33H01017D1 | [3] | SHIM | KOB(1.0) |
| A6. | YF33H01106P1 | [1] | FOAM INSULATION | KOB |
| A7. | YF33H01065P1 | [1] | FOAM INSULATION | KOB |
| A8. | YF33H01110P1 | [1] | FOAM INSULATION | KOB |
| . . | YF33H00022F1 | [1] | TANK | KOBASSY, HYD |
| B1. | YF50V00002F1 | [1] | FILTER STRAINER | KOBASSY, SUCTION |
| B1-1. | YN50V00002S001 | [1] | STRAINER ASSY. | KOB(WITH 0-RING) |
| B1-2. | YF50V00002S002 | [1] | BOLT | KOB |
| B1-3. | ZN11C10008 | [1] | NUT | KOB Superseded by part number: ZN18C10008 |
| B2. | YN52V01008F4 | [1] | ELEMENT | KOBASSY, FILTER Superseded by part number: YN52V01016F4 |
| B2-2. | YN52V01008S002 | [1] | PLATE | KOB |
| B2-3. | YN21V00015P1 | [1] | CHECK VALVE | KOB |
| B2-4. | ZD11G09000 | [1] | O-RING,89.40mm ID x 95.60mm OD x 3.10mm | KOB |
| B2-5. | YN52V01008S005 | [1] | PACKING | KOB |
| B2-6. | LC33H01009P1 | [1] | SPRING | KOB |
| B2-10. | YN52V01013P1 | [2] | HYDRAULIC OIL FILTER | KOBFILTER Superseded by part number: YN52V01021P1 |
| B3. | YN57V00004F1 | [1] | BREATHER | KOBASSY Superseded by part number: YN57V00010F1 |
| B3-1. | NSS | [1] | NOT SERVICED SEPARATELY | CONBODY ASSY |
| B3-2. | YN57V00004S002 | [1] | ELEMENT | KOBFILTER, H/D TANK BREATHER Superseded by part number: YN57V00010S002 |
| B3-6. | 2446U260S10 | [1] | NUT | KOB |
| B3-8. | 2446U260S8 | [1] | PACKING | KOB |
| B4. | ZS28C06016 | [4] | SCREW,Hex Socket Head, M6 x 16mm | KOBCAP |
| B5. | ZW26K06000 | [4] | LOCK WASHER | KOB |
| B6. | YF33H01081P1 | [1] | COVER | KOB |
| B7. | YN33H01259P1 | [1] | COVER | KOB Superseded by part number: YN33H01259P2 |
| B8. | YN58S00009F1 | [1] | GAUGE | KOBASSY, LEVEL |
| B9. | ZD11G19000 | [1] | O-RING,189.30mm ID x 200.70mm OD x 5.70mm | KOB |
| B10. | ZD11G20000 | [1] | O-RING,5.7mm Thk x 199.3mm ID, 70 Duro | KOB |
| B11. | ZE72X08000 | [1] | PLUG | KOB |
| B12. | ZM73C10025 | [12] | BOLT,M10x25mm - Course Thread | KOBM10x1.50x25mm (Incls. Washer) |
| B13. | YF33H00023P1 | [1] | TANK | KOB |
| . . | YN52V01008R800 | [1] | REPAIR KIT | KOBCONSISTS OF REF. B2-4(1), B2-5(1), B2-10(2), B9(1) Superseded by part number: YN52V01016R810 |
