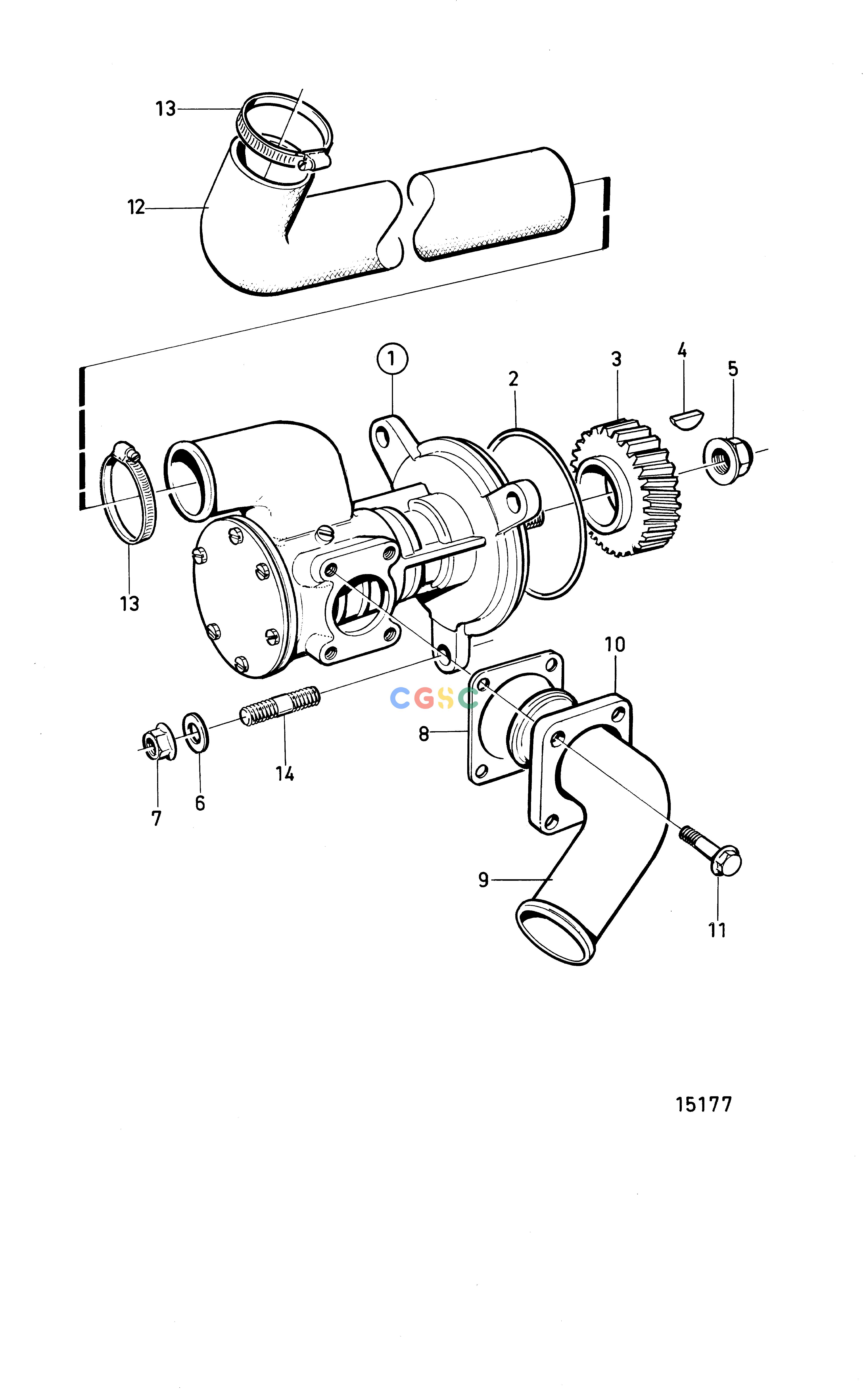

沃尔沃零件查询TAMD63L-A; TAMD63P-ACooling SystemSea Water PumpEPC Volvo Penta Parts catalog
广数供应链运营团队, 15 02月, 2025，浏览：
140 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 1. |
865813
|
[1] |
Sea water pump
|
Repl by sea water pump 3830703, gear 3830720 and nut 971099, SN-2061164433
|
| 1. |
|
|
|
|
| 1. |
3830703
|
[1] |
Sea water pump
|
SN2061164434-, Replaced by 3836563
|
| 1. |
3836563
|
[1] |
Sea water pump
|
|
| 2. |
975610
|
[1] |
O-ring
|
|
| 3. |
3830720
|
[1] |
Gear
|
|
| 4. |
942406
|
[1] |
Woodruff key
|
|
| 5. |
947855
|
[1] |
Flange lock nut
|
|
| 6. |
941911
|
[3] |
Spring washer
|
|
| 7. |
971097
|
[3] |
Flange nut
|
|
| 8. |
862592
|
[1] |
Gasket
|
|
| 9. |
848596
|
[1] |
Hose attachment
|
|
| 10. |
842029
|
[1] |
Flange
|
|
| 11. |
946441
|
[4] |
Flange screw
|
|
| 12. |
866217
|
[1] |
Hose, charge air cooler
|
|
| 13. |
961672
|
[2] |
Hose clamp
|
|
| 14. |
967951
|
[3] |
Stud
|
|
